Step 4: Merging organizations in Automation Suite

For Linux

Note:

Make sure to follow the general escape instructions for the Shell tool of your choice. For instance, in Bash you must add \ before special characters.

To merge organizations in Automation Suite, run the following command:

./UiPath.OrganizationMigrationApp merge -i '<identity database connection of Automation Suite>' -o '<restored orchestrator DB in Automation Suite connection string>' -s '<list of organization IDs of the standalone product separated by comma, e.g. orgID1,orgID2>' -d '<list of organization IDs of Automation Suite separated by comma, e.g. orgID1,orgID2>'

Note:

• Make sure to add TrustServerCertificate=True for both the source and destination SQL connections in the input.

• If you have multiple organization pairs to merge, make sure the organization ID sequence for the standalone product and the organization ID sequence for Automation Suite match.

For Windows

To merge organizations in Automation Suite, run the following command:

./UiPath.OrganizationMigrationApp merge -i "<identity database connection of Automation Suite>" -o "<restored orchestrator DB in Automation Suite connection string>" -s "<list of organization IDs of the standalone product separated by comma, e.g. orgID1,orgID2>" -d "<list of organization IDs of Automation Suite separated by comma, e.g. orgID1,orgID2>"

Note:

Make sure to add TrustServerCertificate=True for both source and destination SQL connection strings in the input.

Migration tool input

When running the UiPath.OrganizationMigrationApp tool, you must provide the following details:

• The list of organization IDs for the standalone product

• The list of organization IDs for Automation Suite

Note:

Make sure to use the same organization IDs as the ones identified in Step 1: Moving the Identity organization data from standalone to Automation Suite.

Merge expectations

Users

Condition	Does the source user has an email address?	Does the target user has an email address?	Is the source user email the same as the one of the target user?	Is the source username the same as the target username?	Result
1					The source user is moved to the target organization; the target organization user has access to standalone Orchestrator.
2					The source user is moved to the target organization; the target organization user has access to standalone Orchestrator. After the merge, two users have the same username, and they must use the email address to login.
3				or	The source user is merged with the target user; the target user has access to standalone Orchestrator.
4			N/A		The source user is moved to the target organization; the target organization user has access to standalone Orchestrator.
5			N/A		The source user is merged with the target user; the target user has access to standalone Orchestrator.
6			N/A		The source user is moved to the target organization; the target organization user has access to standalone Orchestrator.
7			N/A		You must manually configure the email address for the target user or remove the target user. If you configure the email address, the source user is merged with the target user, and the target user has access to standalone Orchestrator. If you remove the target user, the source user is moved to the target organization, and the target organization user has access to standalone Orchestrator.
8			N/A		The source user is moved to the target organization, and the target organization user has access to standalone Orchestrator.
9			N/A		You must configure the email address to be empty for the target user or remove the target user. If you configure the email address as empty, the source user is merged with the target user, and the target user has access to standalone Orchestrator. If you remove the target user, the source user is moved to the target organization, and the target organization user has access to standalone Orchestrator.

Robot users

If the source and target robot usernames are the same, the source robot user is appended the user ID and is move to the target organization.

Source robot username	Target robot username	Moved source robot username
sameRobot	sameRobot	sameRobot_47a26d4a-2180-4fdd-8e1e-2379300a1162

Groups

If the source and target robot group names are the same, the source robot user is appended a string and is moved to the target organization.

Source group name	Target group name	Moved source group username
sameGroup	sameGroup	sameGroup_db39a5c6-f73c-4011-b40e-4ea620fe3d01

Settings

If source settings and target settings have the same name, the setting value of the target is used.

If organization merge failed

If the organization merge failed, check the logs. Depending on whether the Identity or the Orchestrator migration failed, take the following steps:

Failed Identity migration

If the Identity migration failed, you can just fix the error and execute the organization merge command again. This would rollback all the changes since we have set a transaction for operations for Identity.

Failed Orchestrator migration

If the Orchestrator migration failed, the Orchestrator database would roll back, but the Identity database would not rollback. As a result, you must restore the backup of the Identity database and replace the connection string to use the new database. After fixing the error, run organization merge command again.

If the Orchestrator migration failed, take the following steps:

1. Restore the backup of the Identity database.

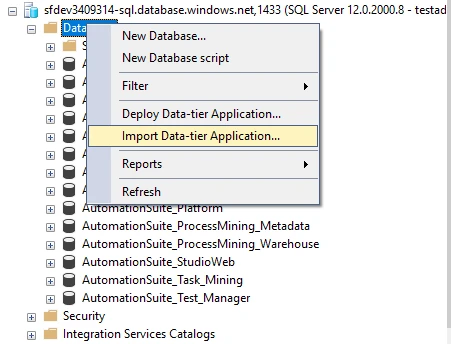

   1. Right-click the database directory and select Import Data-tier Application.

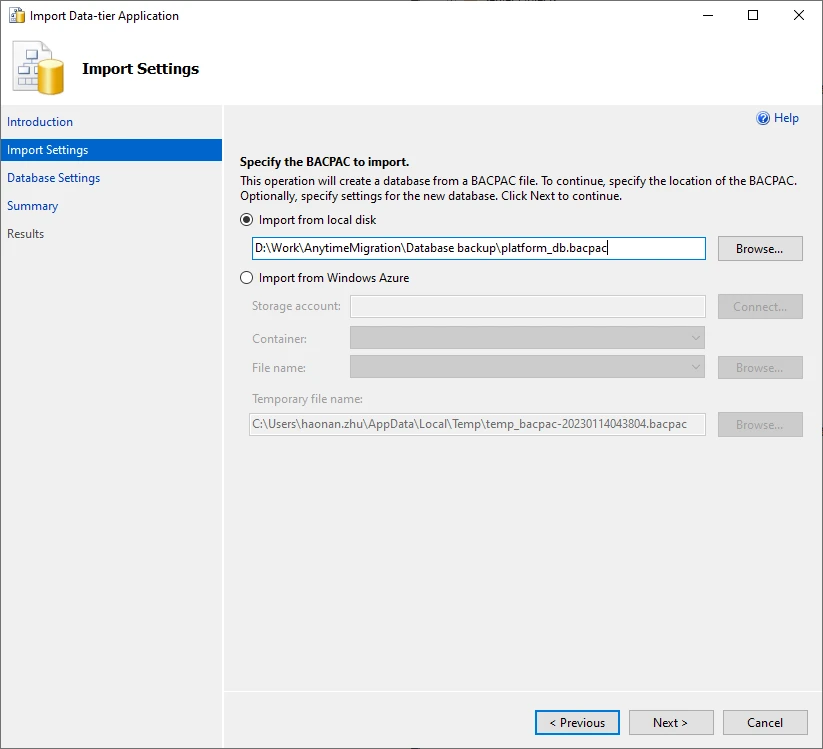

   2. Select the backup database file.

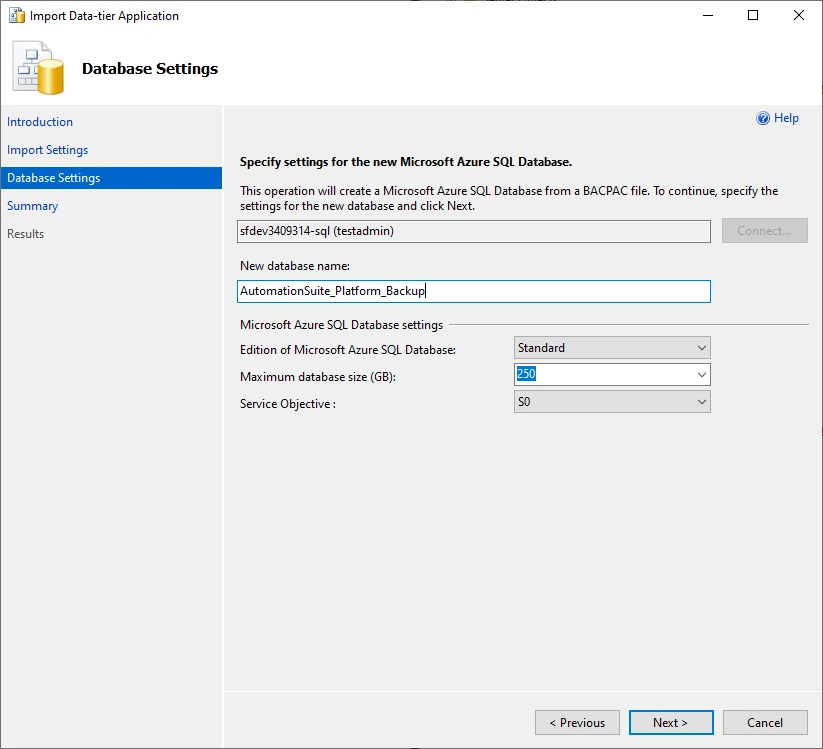

   3. Input the backup database name.

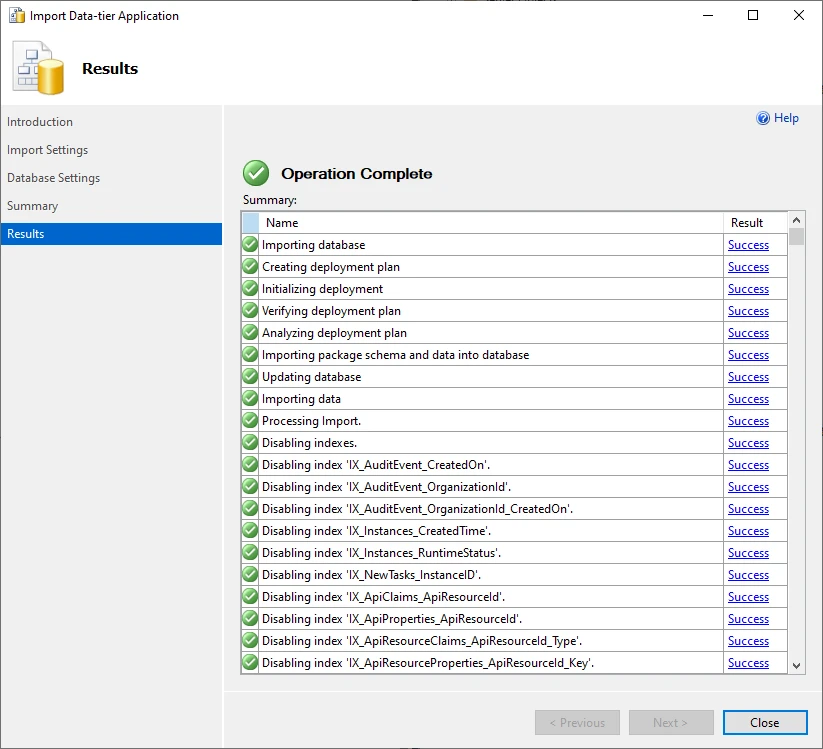

   4. Wait for the process to complete.



2. Replace the identity connection string.

   `"platform": {
       "sql_connection_str": "<dotnet connection string>",   (added line)
       "enabled": true,
   },`

3. Fix the error and use the new platform connection string to run the merge command again.
