Managing deployments

The Deployments tab in Studio Web is the central view for your solution's deployment history, package versions, and deployment status. It surfaces the same deployment data as Orchestrator Solutions Management, but scoped to the solution you are working on.

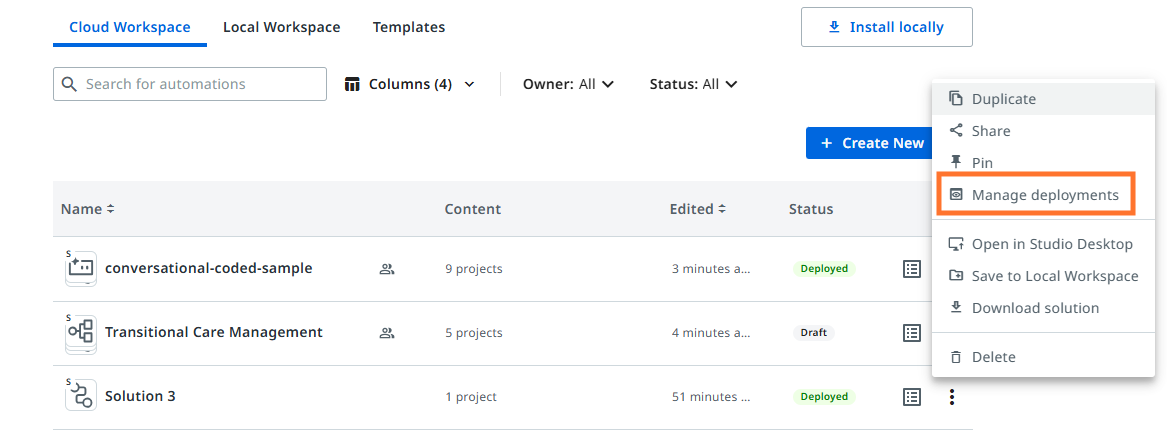

The Deployments tab can be accessed by selecting Manage Deployments for an existing solution.

The Deployments tab

The Deployments tab shows all deployments created from the current solution's published package. Each row represents one deployment and displays the following columns:

Spalte	Beschreibung
Name	The deployment name and the Orchestrator folder path where it was installed.
Status	A colored chip showing the current activation state of the deployment. See Deployment statuses below.
Version	The version of the solution package that was deployed.
Letzter Vorgang	The most recent operation performed on the deployment (for example, Install · Successful or Uninstall · Successful) and when it occurred.
Stages	A visual pipeline showing the progress of the last operation through its execution stages. Green checkmarks indicate completed stages; a red indicator signals a failed stage.

The All, Personal, and Shared filter tabs at the top right narrow the list by workspace type. The refresh icon reloads the list.

Bereitstellungsstatus

The Status column shows a colored chip that reflects the current activation state of each deployment:

Status	Farbe	Bedeutung
Aktiv	Grün	The deployment is installed and its triggers are active.
Inaktiv	grau	The deployment is installed but not activated, or was previously uninstalled.
Inaktiv (Bereit zur Aktivierung)	grau	The deployment is installed and ready to activate. Activation was not performed automatically, either because Activate immediately was off during deployment, or activation requires additional setup.
Entwurf	Amber	A new version is being configured but has not yet been deployed to replace the active version. The active version continues running alongside the draft.

When a Draft deployment exists alongside an Active deployment for the same solution, both rows appear as a grouped pair under a single deployment name.

The deployment detail panel

Selecting a row in the Deployments tab opens a detail panel on the right side of the screen. The panel header shows the solution package name and version, with a Latest indicator if this is the most recent published version.

The panel contains three tabs:

Registerkarte	Beschreibung
Ressourcen	Lists the processes included in the deployment. Select the eye icon next to a process to open its details in Orchestrator.
Verlauf	Shows the full operation history for this deployment — Install, Uninstall, and Activate operations — each with a stage visualization and timestamp.

The panel also provides the following actions:

Aktion	Beschreibung
Activate deployment	Activates the deployment. Available when the deployment status is Inactive (Ready to activate). For instructions, see Activate a deployment.
Bearbeiten	Opens the deployment configuration for editing.
Deinstallieren	Uninstalls the deployment from Orchestrator. This action cannot be undone from Studio Web.

The three-dot menu on each row in the Deployments tab also provides:

Option	Beschreibung
Go to folder	Opens the appropriate folder in Orchestrator for the deployed solution.
Protokolle anzeigen	Opens the deployment log output for that operation.
Change version	Allows the selection of a different version of the solution package, if one exists.
Edit configuration	Lets you edit the configuration of your solution deployment.
Löschen	Deletes the deployment record.

The Versions tab

The Versions tab shows all published versions of the solution package. Each row represents one published version and displays the following columns:

Spalte	Beschreibung
Version	The package version number.
Publish Location	Where the package was published — Personal (your workspace feed) or Shared (the tenant feed).
Veröffentlicht	How long ago the package was published.
Versionshinweise	The release notes entered at publish time, if any.

Each version row includes a Deploy button that opens the Deploy page pre-populated with that version. The three-dot menu offers:

Option	Beschreibung
Herunterladen (Download)	Downloads the solution package file.
Löschen	Deletes the published version from the feed.
