AWS deployment architecture
Automation Suite on Linux Installation Guide
Last updated Apr 24, 2024

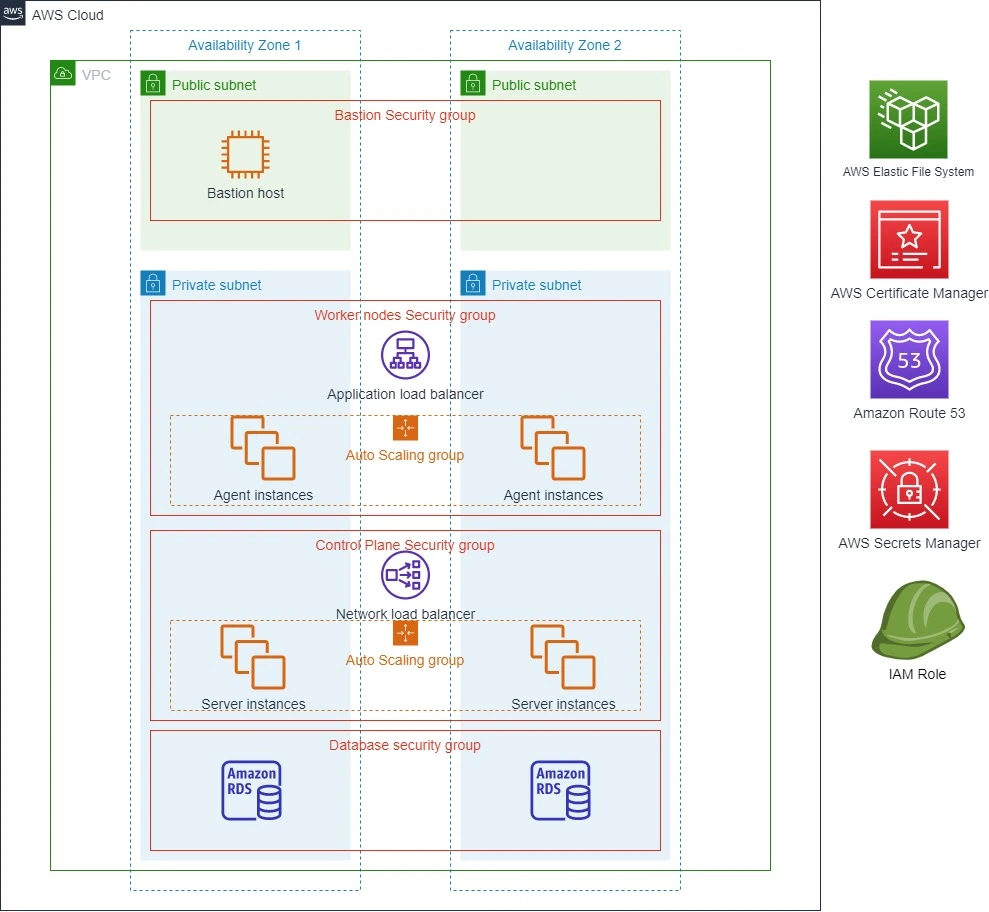

AWS deployment architecture
-
Uipath-sf:
- SSL stack
- Routing stack
- Server stack
- Database stack
- Backup stack
- Management stack
- Lambda functions (
AWS::Lambda::Function
):FindAMIFunction
– for finding a matching AMI Id.CreateInputJsonFunction
– for creating the configuration used by the Automation Suite installer.ComputeResourceSizeFunction
– for computing the minimum EC2 instances hardware configuration needed, based on the selected services and deployment type.
- IAM roles (
AWS::IAM::Role
) for the Lamdda functions to provide minimum permissions:FindAmiLambdaRole
CreateInputJsonLambdaRole
ComputeResourceSizeLambdaRole
- Secrets (
AWS::SecretsManager::Secret
) to store sensitive information:RDSPassword
OrgSecret
PlatformSecret
ArgoCdSecret
ArgoCdUserSecret
InputJsonSecret
KubeconfigSecret
- SSL Stack (optional)
- Network stack (optional)
-
Backup stack (optional):
ClusterBackupStorage
(AWS::EFS::FileSystem
) – Amazon Elastic File System used to store the backup.SharedStorageSecurityGroup
(AWS::EC2::SecurityGroup
) – Security group used to allow NFS network connections from the cluster nodes.SharedStorageMountTargetOne
(AWS::EFS::MountTarget
) – Resource that creates the mount target for the EFS file system and the first private subnet.SharedStorageMountTargetTwo
(AWS::EFS::MountTarget
) – Resource that creates the mount target for the EFS file system and the second private subnet.SharedStorageMountTargetThree
(AWS::EFS::MountTarget
) – Optional resource that creates the mount target for the EFS file system and the third private subnet.
- Database stack:
RDSDBInstance
(AWS::RDS::DBInstance
) – The Amazon RDS DB instance. The DB SKU isdb.m5.2xlarge
.DBSubnetGroup
(AWS::RDS::DBSubnetGroup
) – Private subnet group that contains the private subnets.DbSecurityGroup
(AWS::EC2::SecurityGroup
) – Security Group allowing access to the DB instance.PMRDSDBInstance
(AWS::RDS::DBInstance
) – Dedicated Amazon RDS DB instance for Process Mining. Only deployed when Process Mining is enabled and the deployment isMulti Node
. The DB SKU isdb.m5.4xlarge
.
- Routing stack:NOTE: The Alb and Nlb stacks are mutually exclusive configurations
- Alb stack:
ExternalLoadBalancer
(AWS::ElasticLoadBalancingV2::LoadBalancer
) – Application load balancer used to distribute Automation Suite traffic. It can be internal or internet-facing.ELBSecurityGroup
(AWS::EC2::SecurityGroup
) – The security group applied to the load balancer.HttpsTargetGroup
(AWS::ElasticLoadBalancingV2::TargetGroup
) – The target group of the load balancer.HttpsListener
(AWS::ElasticLoadBalancingV2::Listener
) – The listener for the load balancer.
- Nlb stack:
ExternalLoadBalancer
(AWS::ElasticLoadBalancingV2::LoadBalancer
) – Network load balancer used to distribute Automation Suite traffic. It can be internal or internet-facing.TcpTargetGroup
(AWS::ElasticLoadBalancingV2::TargetGroup
) – The target group of the load balancer.TcpListener
(AWS::ElasticLoadBalancingV2::Listener
) – The listener for the load balancer.
KubeLoadBalancer
(AWS::ElasticLoadBalancingV2::LoadBalancer
) – Private network load balancer used for node registration.KubeApiTcpTargetGroup
(AWS::ElasticLoadBalancingV2::TargetGroup
) – The target group for the node registration traffic of theKubeLoadBalancer
.KubeApiTcpListener
(AWS::ElasticLoadBalancingV2::Listener
) – The listener for the node registration traffic of theKubeLoadBalancer
.Rke2RegistrationTcpTargetGroup
(AWS::ElasticLoadBalancingV2::TargetGroup
) – The target group for the node registration traffic of theKubeLoadBalancer
.Rke2RegistrationTcpListener
(AWS::ElasticLoadBalancingV2::Listener
) – The listener for the node registration traffic of theKubeLoadBalancer
.RootRecordSet
(AWS::Route53::RecordSet
) – DNS A record for the FQDN.SubdomainRecordSet
(AWS::Route53::RecordSet
) – DNS A record for the subdomains of the FQDN.
- Alb stack:
- Management stack:
LifecycleAutomationLogs
(AWS::Logs::LogGroup
) – Log group for logging events from the SSM automation.ClusterOperationsAutomationLogs
– Log group for logging events related to cluster operations.OnDemandRestoreStateMachine
(AWS::StepFunctions::StateMachine
) – Step function used to orchestrate the restore flow.- SSM Documents (
AWS::SSM::Document
) sets of steps used to provide graceful node removal:ServerRemoveInstanceDocument
AgentRemoveInstanceDocument
UpdateAMIDocument
– Updates the AMI ID for the Auto Scaling Groups.RegisterAiCenter
– Registers AI Center to an external Orchestrator provided at deployment time.OnDemandBackup
– Creates a manual snapshot of the Automation Suite cluster.GetBackupList
– Retrieves all available snapshots for the Automation Suite cluster.OnDemandRestoreDocument
– Restores the Automation Suite cluster from a given snapshot.
- Autoscaling Lyfecycle hooks (
AWS::AutoScaling::LifecycleHook
) that allow us to run the SSM documents when an EC2 instance receives an instance termination event:ServerAsgLifeCycleHookTerminating
AgentAsgLifeCycleHookTerminating
AsRobotsAsgLifeCycleHookTerminating
- Event rules (
AWS::Events::Rule
) that trigger the execution of the SSM Documents:ServerTerminateEventRule
AgentTerminateEventRule
AsRobotsTerminateEventRule
- IAM roles (
AWS::IAM::Role
) needed for running SSM Documents and adding logs to the Log Group:AutomationAssumeRole
EventsBridgeAssumeRole
StateMachinesAssumeRole
- Server stack:
ServerLaunchConfiguration
(AWS::EC2::LaunchTemplate
) – EC2 instance configuration for the server nodes. Disk configuration:- OS disk – sku gp3, capacity 256GiB
- Cluster disk – sku gp3, capacity 300GiB
- etcd disk – sku io1, capacity 32GiB
- Data disk – sku gp3, capacity 512GiB regardless of the selected services.
- Objectstore disk – sku gp3, capacity 512GiB
- Optional disk for Automation Suite Robots package caching – sku gp3, capacity 32GiB. The disk is deployed only if the the Automation Suite Robots service is enabled in a single-node deployment
AgentLaunchConfiguration
(AWS::EC2::LaunchTemplate
) – EC2 instance configuration for the agent nodes. Disk configuration:- OS disk – sku gp3, capacity 128GiB
- Cluster disk – sku gp3, capacity 256GiB
ASRobotsLaunchTemplate
(AWS::EC2::LaunchTemplate
) – EC2 instance configuration for the ASRobots nodes. Disk configuration:- OS disk – sku gp3, capacity 128GiB
- Cluster disk – sku gp3, capacity 256GiB
- Robot package caching disk - sku gp3, capacity 32GiB
GpuEnabledNode
(AWS::EC2::Instance
) – Optional GPU node. It has the same disk configuration as an agent.TaskMiningNode
(AWS::EC2::Instance
) - Optional Task Mining node. Deployed only if the Task Mining service is selected. It has the same disk configuration as an agent.BastionHost
(AWS::EC2::Instance
) – Optional EC2 instance used to SSH to cluster nodes. It has thet3.large
instance type and a 200GiB gp3 disk.ServerAutoScalingGroup
(AWS::AutoScaling::AutoScalingGroup
) – Auto scaling group for the servers.AgentAutoScalingGroup
(AWS::AutoScaling::AutoScalingGroup
) – Auto scaling group for the agents.ASRobotsAutoScalingGroup
– Auto scaling Group for dedicated Automation Suite Robots nodes. The capacity of this scaling group is 1 if the deployment isMulti Node
and the Automation Suite Robots service is enabled, and 0 otherwise.- Optional
ServiceFabricIamRole
(AWS::IAM::Role
) that has permissions to:- write logs
- read EC2 instances configurations
- download AWS Quickstart resources
- access the Automation Suite installation configuration secret
- access the cluster kubeconfig configuration secret
ServiceFabricSecurityGroup
(AWS::EC2::SecurityGroup
) – Security Group allowing access to UiPath® applications.BastionSecurityGroup
(AWS::EC2::SecurityGroup
) – Optional Security Group allowing SSH access to BastionAsgProcessModifierFunction
(AWS::Lambda::Function
) – Used to modify the ASG processes during CF stack creation.AsgProcessModificationRole
(AWS::IAM::Role
) – IAM role to provide minimum permissions for theAsgProcessModifierFunction
- SSM parameters (
AWS::SSM::Parameter
):InstanceAMIIdSSMParameter
– Stores the AMI ID of the nodes.InstanceAMIImageNameSSMParameter
– Holds the Image Name used at deployment time or updated via theUpdateAMIDocument
.
- Autoscaling Lyfecycle hooks (
AWS::AutoScaling::LifecycleHook
) that allow us to transition EC2 instances to InService state after the installer succeeded:ServerAsgLifeCycleHookLaunching
AgentAsgLifeCycleHookLaunching
ASRobotsAsgLifeCycleHookLaunching
The template dynamically computes the hardware needed for the deployment as follows:
- Depending on the services installed, it sets minimum requirements at cluster level.
- Depending on the deployment profile (multi-node or single-node profile), it sets minimum requirements for a single VM.
- Selects the instance types based on their availability in the region you deploy and the aforementioned requirements.
The following table shows the mappings between deployment and possible instance types:
Deployment type |
Instance types |
---|---|
Single-node, services selection that needs less than 16 CPUs |
c5.4xlarge , c5a.4xlarge , m5.4xlarge , m5a.4xlarge |
Single-node, services selection that needs more than 16 CPUs |
c5a.8xlarge , c5.9xlarge , m5.8xlarge |
Multi-node, services selection that needs less than 48 CPUs |
c5.4xlarge , c5a.4xlarge , m5.4xlarge , m4.4xlarge |
Multi-node, services selection that needs more than 48 CPUs |
c5a.8xlarge , c5.9xlarge , m5.8xlarge , m5a.8xlarge |
