Conditional Drop-Downs

Overview


Conditional drop-downs enable you to select an option from the drop-down, based on a previous selection made in another form component.
For example, if you select a specific state from a drop-down list, the conditioned drop-down displays the cities in that state.

Tutorial


To use this feature:

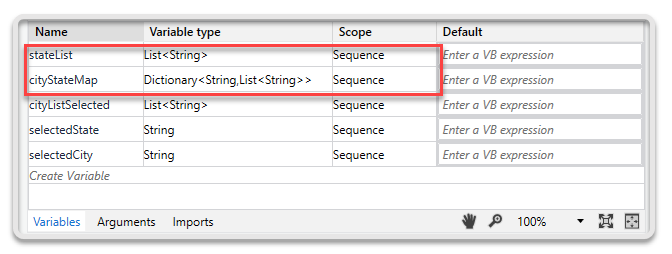

  1. Create a parent drop-down, by defining a workflow variable of type List<String> or Dictionary<String, String>. For example, stateList.
  2. Create a child drop-down, by defining a workflow variable of type Dictionary<String, List<String>> or Dictionary<String, Dictionary<String, String>>. For example, cityStateMap.
  1. Drag and drop the Invoke Code activity into the workflow sequence.

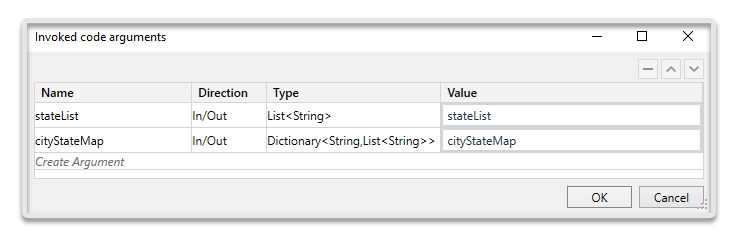

  2. Click Edit Arguments and add the previously created variables as In/Out arguments. Click OK.
  1. Click Edit Code. Enter the code to initialize the data and populate the drop-downs with data. For example, the following code snippet initializes the drop-downs (stateList and cityStateMap) and adds items to them.
// initialize the parent drop-down
stateList = new List<string>();
// add items to the parent drop-down
stateList.Add("HP");
stateList.Add("Punjab");

// initialize the child drop-down
cityStateMap = new Dictionary<string,List<string>>();
// add items to the HP-child drop-down
cityStateMap.Add("HP",new List<string>());
cityStateMap["HP"].Add("Shimla");
cityStateMap["HP"].Add("Solan");
cityStateMap["HP"].Add("Hamirpur");
// add items to the Punjab-child drop-down
cityStateMap.Add("Punjab", new List<string>());
cityStateMap["Punjab"].Add("Chandigarh");
cityStateMap["Punjab"].Add("Patiala");
cityStateMap["Punjab"].Add("Jalandhar");
  1. Drag and drop the Create Form activity.
  2. Store the user drop-down selection into workflow variables. For example:
    • cityListSelected, of type List<String>—stores the list corresponding to the selected state.
    • selectedState, of type String—stores the selected state.
    • selectedCity, of type String—stores the selected city.

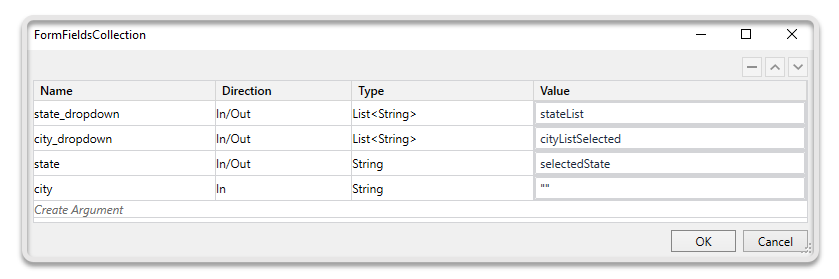

  3. Open the FormFieldsCollection window from the activity Properties panel.
  4. To define the drop-down fields in the form:
    • Define the drop-down fields. The Name you set is used for data binding (see Drop-down Component > Field Key tab > Property name).
    • Additionally, define the drop-down lists by appending _dropdown to the drop-down field name.
  5. In the Value column, set the user selection as follows:
    • For the parent drop-down list, use the list defined at Step 1.
    • For the child drop-down list, use the variable stored at Step 7.
    • For the parent drop-down field, use the variable stored at Step 7.
    • For the child drop-down field, use the variable stored at Step 7.
  1. Click OK.

Sample Workflow


To check the complete workflow or to have a future reference, download the XAML example below.
