How to Troubleshoot Services During Installation
Automation Suite Installation Guide
Last updated Apr 19, 2024
How to Troubleshoot Services During Installation
Take the following steps on one of the cluster server nodes:
-
Obtain Kubernetes access.
on server nodes: export KUBECONFIG="/etc/rancher/rke2/rke2.yaml" export PATH="$PATH:/usr/local/bin:/var/lib/rancher/rke2/bin" on agent nodes: export KUBECONFIG="/var/lib/rancher/rke2/agent/kubelet.kubeconfig" export PATH="$PATH:/usr/local/bin:/var/lib/rancher/rke2/bin" # To validate, execute the following command which should not return an error: kubectl get nodes
on server nodes: export KUBECONFIG="/etc/rancher/rke2/rke2.yaml" export PATH="$PATH:/usr/local/bin:/var/lib/rancher/rke2/bin" on agent nodes: export KUBECONFIG="/var/lib/rancher/rke2/agent/kubelet.kubeconfig" export PATH="$PATH:/usr/local/bin:/var/lib/rancher/rke2/bin" # To validate, execute the following command which should not return an error: kubectl get nodes -
Retrieve the ArgoCD password by running the following command:
kubectl get secrets/argocd-admin-password -n argocd --template '{{ .data.password }}' | base64 -d
kubectl get secrets/argocd-admin-password -n argocd --template '{{ .data.password }}' | base64 -d - Connect to ArgoCD
- Navigate to
https://alm.<fqdn>/:443
- Login using
admin
as the username and the password obtained at Step 2.
- Navigate to
- Locate the UiPath Services application as follows:
- Using the search bar provided in ArgoCD, type in
uipath

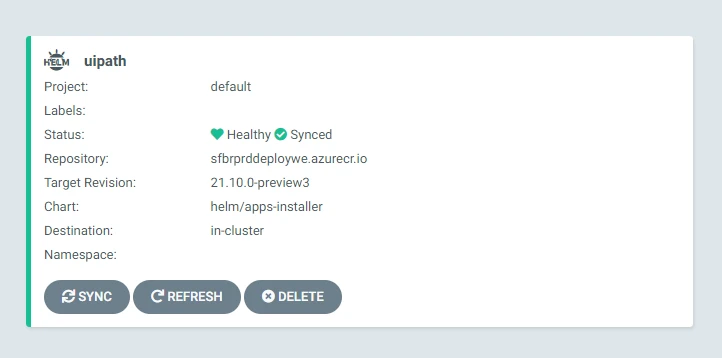

. - Then open the UiPath application by clicking its card.
- Check for the following:
Application was not synced due to a failed job/pod
. - If the above error exists, take the following steps.

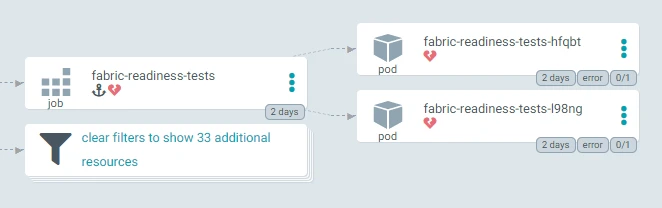

- Locate any un-synced components by looking for the red broken heart icon, as shown in the following image.

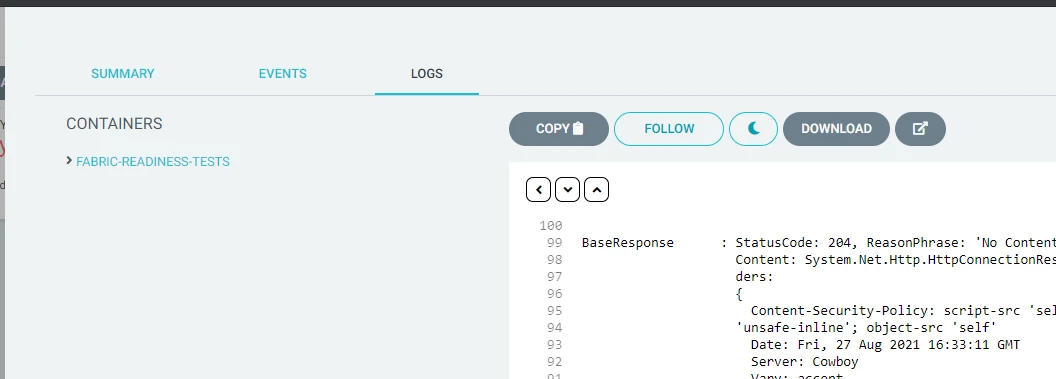

- Open the right-most component (usually pods) and click the Logs tab. The Logs will contain an error message indicating the reason for the pod failure.
- Once you resolve any outstanding configuration issues, go back to the home page and click the Sync button on the UiPath application.
- Using the search bar provided in ArgoCD, type in
