Azure Form Recognizer Scope

Each Azure Form Recognizer activity calls a Form Recognizer API. To successfully call the API, the activities must include an authentication header in the request. To include an authentication header, the activities rely on the Azure Form Recognizer Scope activity to provide a subscription key value.

Using your subscription key (Subscription Key) and resource endpoint (Endpoint), the Azure Form Recognizer Scope activity facilitates the authenticated connection to your Form Recognizer Azure resource.

Note:

The authentication method used by the Azure Form Recognizer Scope activity is different when compared to other Microsoft integrations (e.g., Teams and ).

Currently, the Azure Form Recognizer activities authenticate with a single-service subscription key only. Authentication using an InteractiveToken or IntegratedWindowsAuthentication is not supported.

How It Works

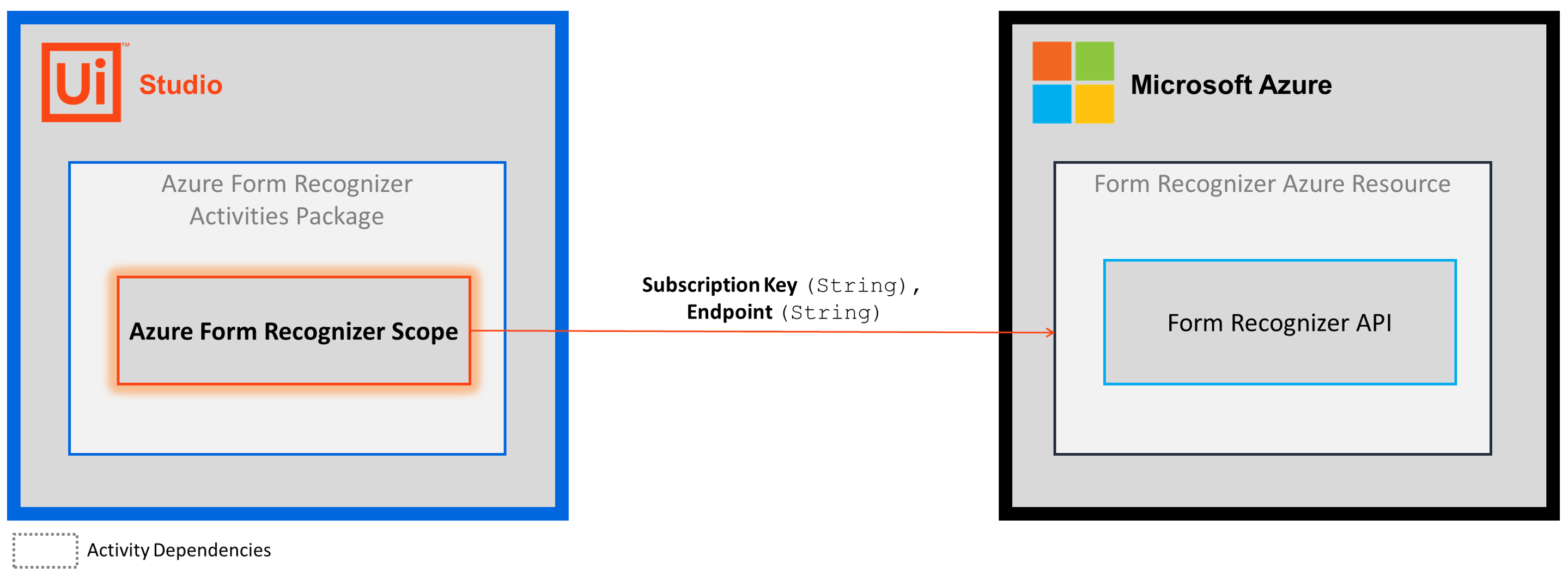

The following steps and message sequence diagram is an example of how the activity works from design time (i.e., the activity dependencies and input/output properties) to run time.

1. Complete the Setup steps.
2. Add the Azure Form Recognizer Scope activity to your project.

3. Enter values for the Authentication and Input properties.









Properties

The values for the following properties are specified when adding this activity to your project in UiPath Studio.

Common

DisplayName

The display name of the activity.

Attributes	Details
Type	String
Required	Yes
Default value	Azure Form Recognizer Scope
Allowed values	Enter a String or String variable.
Notes	N/A

Authentication

Subscription Key

The SecureString used to authenticate requests to the Form Recognizer API.

Attributes	Details
Type	String
Required	Yes
Default value	Empty
Allowed values	Enter a SecureString variable.
Notes	The Subscription Key gets generated when you create a Form Recognizer Azure resource. For more information, see the Create a Form Recognizer Azure resource section of the Setup guide.

Input

Endpoint

The API endpoint of your Form Recognizer resource.

Attributes	Details
Type	String
Required	Yes
Default value	Empty
Allowed values	Enter a String or String variable.
Notes	The Endpoint gets generated when you create a Form Recognizer Azure resource. For more information, see the Create a Form Recognizer Azure resource section of the Setup guide.

Misc

Private

If selected, the values of variables and arguments are no longer logged at Verbose level.

Attributes	Details
Type	Checkbox
Required	No
Default value	Not Selected
Allowed values	Selected or Not Selected
Notes	N/A

Example

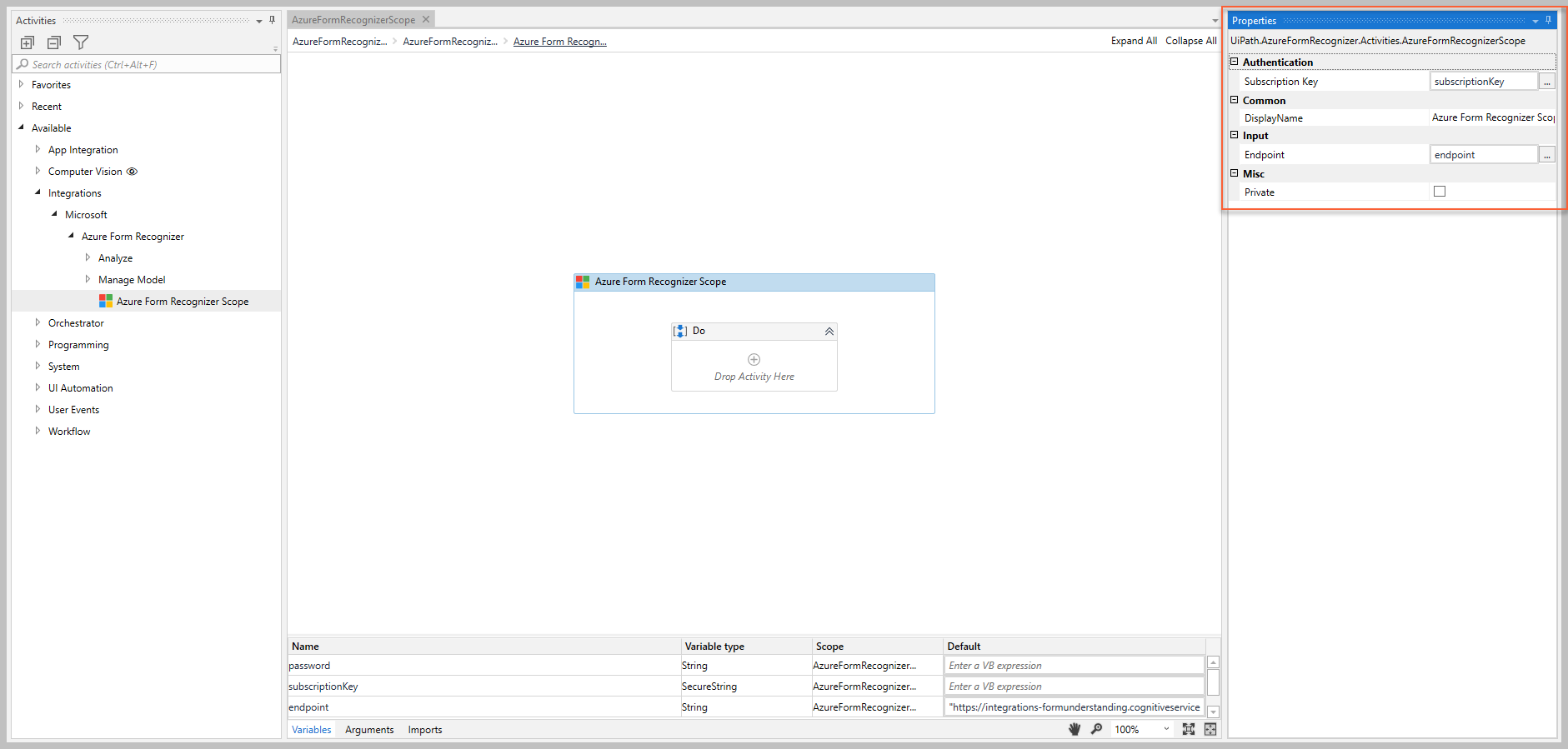

The following image shows an example of the activity dependency relationship and input/output property values.

For step-by-step instructions and examples, see the Quickstart guide.
