Create Event

Overview

The Create Event activity calls the Microsoft Graph CreateEvent API to create a new event object (Event) in your specified team (TeamId).

After creating your new event, the activity outputs the identifier (EventId) as a String that you can use as an input variable in subsequent activities (e.g., Delete Event, ).

How It Works

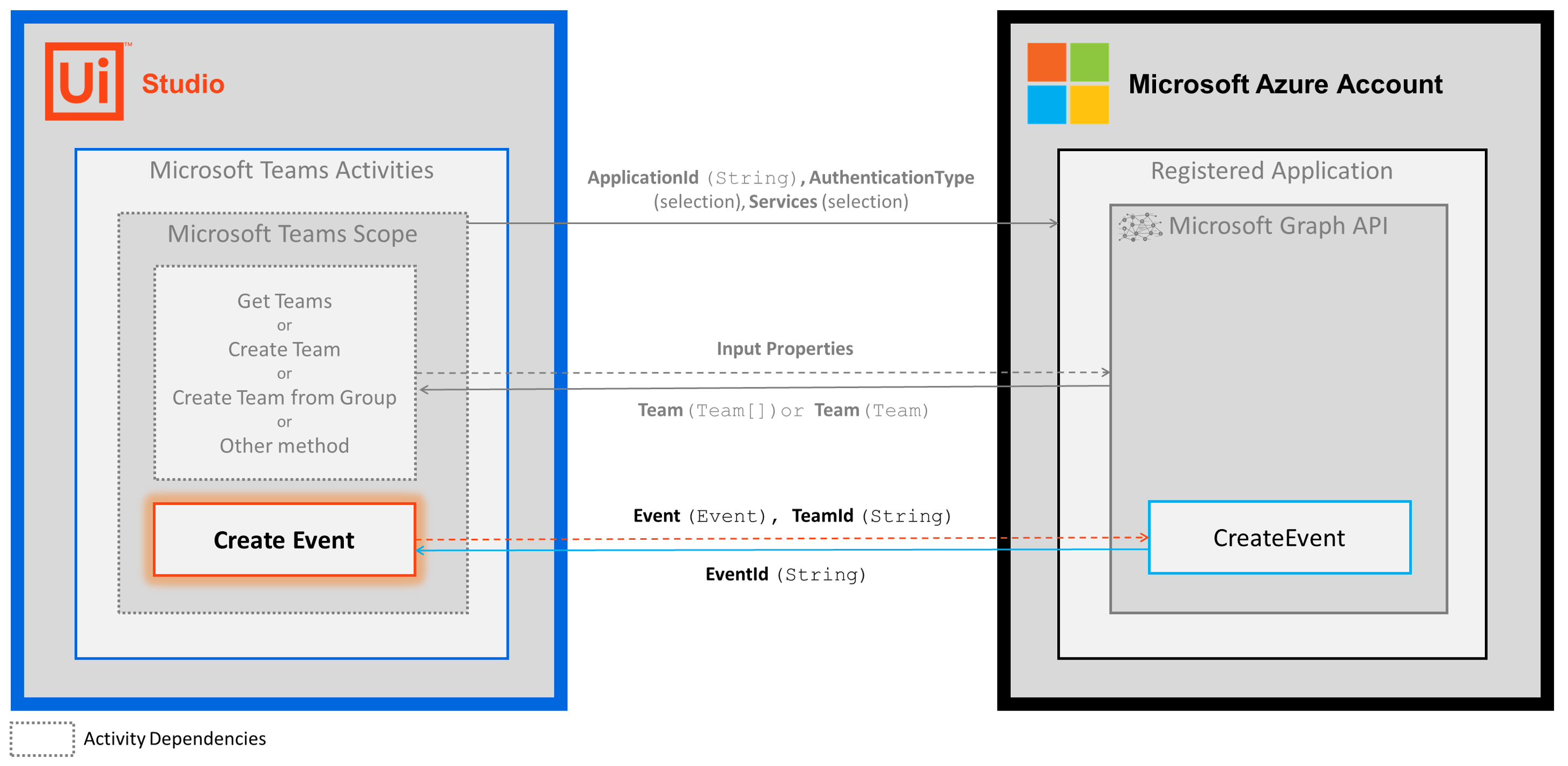

The following steps and message sequence diagram is an example of how the activity works from design time (i.e., the activity dependencies and input/output properties) to run time.

1. Complete the Setup steps.
2. Add the Microsoft Teams Scope activity to your project.
3. Add an activity or run an external process that outputs a Team.Id value (e.g., Get Teams).
4. Add the Create Event activity inside the Microsoft Teams Scope activity.
5. Enter values for the Input properties, including a new Event variable.
6. Create and enter a String variable for your Output property.

7. Run the activity.

   • Your input property values are sent to the CreateEvent API.
   • The API returns the event id String value to your output property variable.








Properties

The values for the following properties are specified when adding this activity to your project in UiPath Studio.

Common

DisplayName

The display name of the activity.

Attributes	Details
Type	String
Required	Yes
Default value	Create Event
Allowed values	Enter a String or String variable.
Notes	N/A

Input

Event

The Event object that represents your new event.

Attributes	Details
Type	Event
Required	Yes
Default value	Empty
Allowed values	Enter a Event variable.
Notes	Because you're creating a new event, the Event object does not yet exist. To create the Event object variable that represents your new event, enter the following as your variable Default value: new Microsoft.Graph.Event(). The variable you create for this property can be used as an input variable in subsequent activities (e.g., Delete Event, ).

TeamId

The Id of the Team object that you want to create the event in.

Attributes	Details
Type	String
Required	Yes
Default value	Empty
Allowed values	Enter a String or String variable.
Notes	To get the Team.Id value, use an external process or activity that includes the Team.Id value in its output (e.g., Get Teams or external API call)

Misc

Private

If selected, the values of variables and arguments are no longer logged at Verbose level.

Attributes	Details
Type	Checkbox
Required	No
Default value	Not Selected
Allowed values	Selected or Not Selected
Notes	N/A

Output

EventId

The identifier assigned to your new Event object.

Attributes	Details
Type	String
Required	No (required if you plan to use the output data in subsequent activities)
Default value	Empty
Allowed values	Enter a String variable.
Notes	The variable you create for this property can be used as an input variable in subsequent activities (e.g., Delete Event, ).
