Upload File

UiPath.OracleNetSuite.Activities.UploadFile

The Upload File activity uses the the Oracle NetSuite file.create API to upload a file (FilePath) to a specific folder (FolderId).

After uploading the file, the activity outputs the file id of the file (FileId) and the status of the upload (success/failure information) in a ResponseStatus object (ResponseStatus). Both of these outputs can be used as input variables in subsequent activities (e.g., FileId in Download File and ResponseStatus in conditional logic).

Note: The maximum file upload size is 10MB per Oracle NetSuite documentation.

How it works

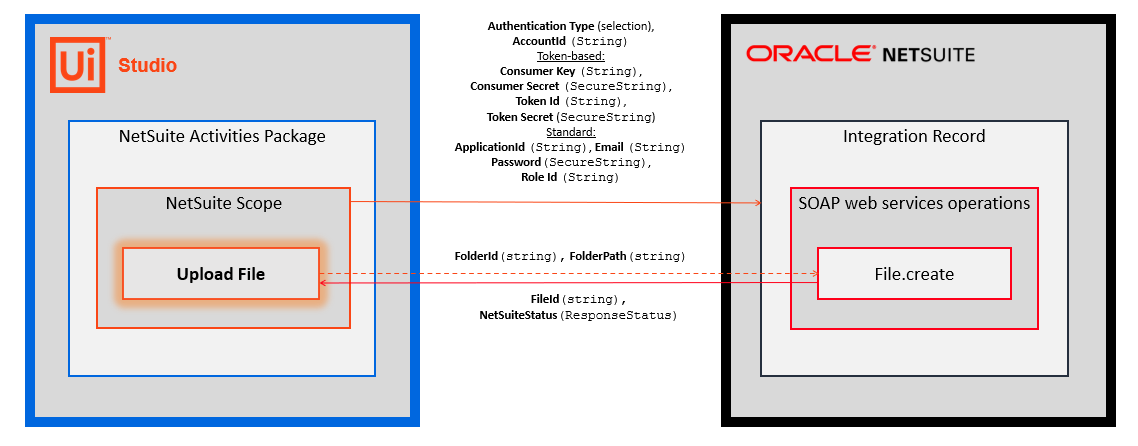

The following steps and message sequence diagram is an example of how the activity works from design time (i.e., the activity dependencies and input/output properties) to run time.

1. Complete the Setup steps.
2. Add the Oracle NetSuite Application Scope activity to your project.
3. Add the Upload File activity inside the Oracle NetSuite Application Scope activity.
4. Create and enter a String and a FolderId variable for the Input properties.
5. Create and enter a String and a File variable for the Input properties.
6. Create and enter a String and a FileId variable for the Output properties.
7. Create and enter a String and a ResponseStatus variable for the Output properties.








Properties

Common

• DisplayName - The display name of the activity. This field supports only Strings or String variables.

Input

• File - The complete local path to the file that you want to upload. This field supports only Strings or String variables.
• FolderId - The Id of the folder to upload your file to. This field supports only Strings or String variables.

Misc

• Private - If selected, the values of variables and arguments are no longer logged at Verbose level.

Output

• FileId - The id of the file. This field supports only String variables. The variable you create for this property can be used as an input variable in subsequent activities (e.g., Download File, etc.).
• ResponseStatus - The status of the request (success/failure information). Enter a ResponseStatus variable (UiPath.BAF.Models.ResponseStatus). The ResponseStatus object includes three properties that you can use in other activities.
  • Success - Boolean - Specifies whether the API request was successful.
  • ErrorCode - String - The response error if the API request is unsuccessful (Success=False).
  • Message - String - The error message.
