Quickstart - Send an SMS

Overview

The purpose of this guide is to help you create a working sample that uses the Send Message activity.

This working sample enables you to quickly verify the connection to your Twilio resources and get familiar with the activity's input/output datatypes.

After completing the steps in this guide, you'll have an automation sequence that does the following:

1. Establishes a connection to your Twilio resources (Twilio Scope).
2. Sends an SMS message (Send Message).

Prerequisites

Before you begin:

1. Complete the Twilio Setup steps.

Steps

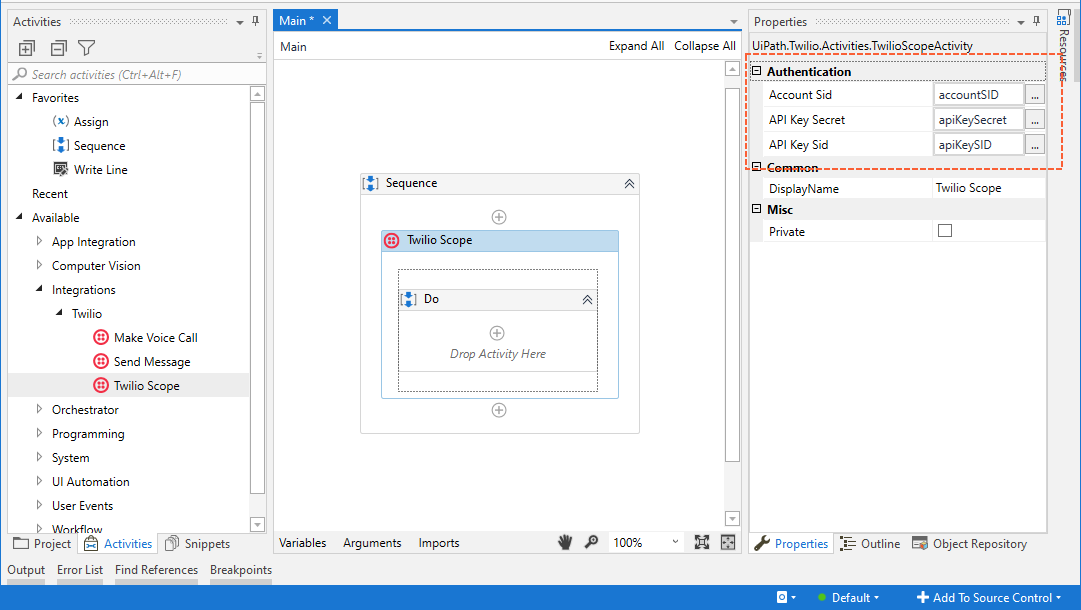

1. First, add an Twilio Scope activity and set the values for the input parameters like in the screenshot below. In the sample workflow above, you can see that I got the values for these parameters from variables. Here's a short description of the activity’s parameters:

   • Account Sid (String) - Your Account SID from your project dashboard.
   • API Key Sid (String) - API Key SID to work with your Twilio project. API Keys can be provisioned and revoked through the Twilio Console.
   • API Key Secret (String) - API Key Secret to work with your Twilio project. API Keys can be provisioned and revoked through the Twilio Console.

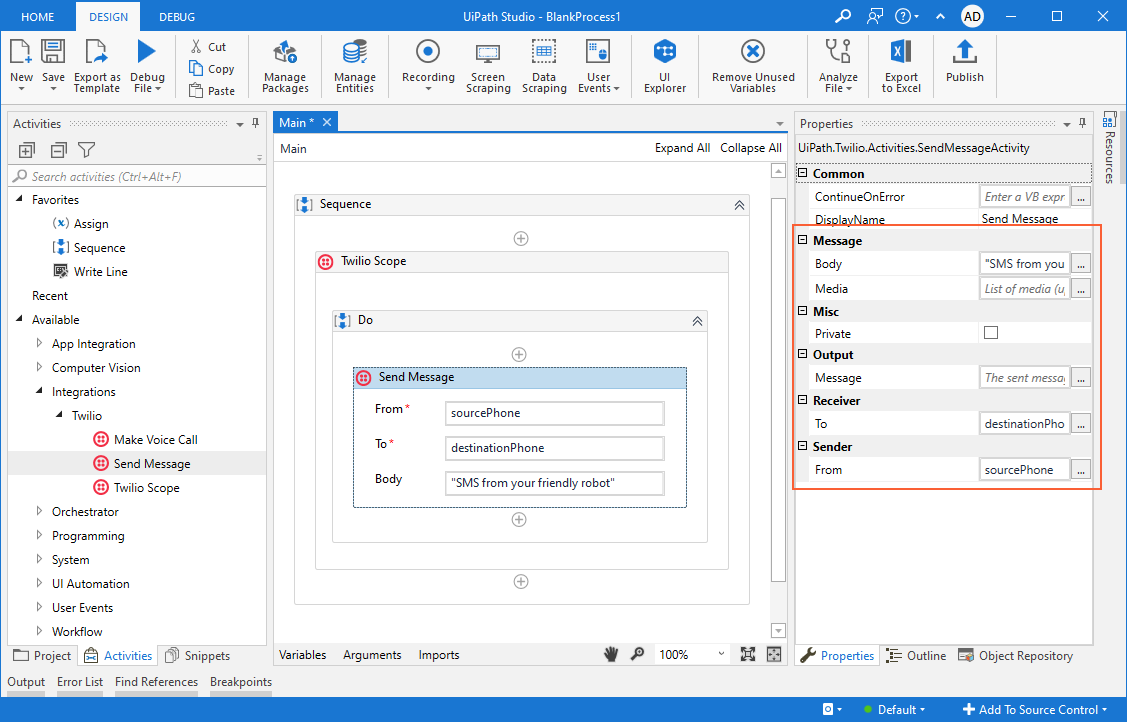

2. Add the Send Message activity which can be used to send an SMS message. The parameters of this activity are:

   • From (String) - The Twilio phone number in E.164 format.
   • To (String) - The phone number to call, in E.164 format, e.g. [phone].
   • Body (String) - The text of the message you want to send. Can be up to 1,600 characters in length.
   • Media (String[]) - List of media (up to 10) to send with the message.







3. Click Run and verify the SMS goes through.

A sample of this workflow can be found here.
