Classic Integrations Activities
Last updated Nov 8, 2024

Execute Action

UiPath.MicrosoftDynamics.Activities.ExecuteAction

The Execute Action activity uses the Web API POST operation to execute an action (Action).

After executing the action, the activity outputs action specific field values (if applicable) and the status of the request (success/failure information) in a ResponseStatus object (MicrosoftDynamicsStatus) that you can use in subsequent activities (e.g., conditional logic).

How it works

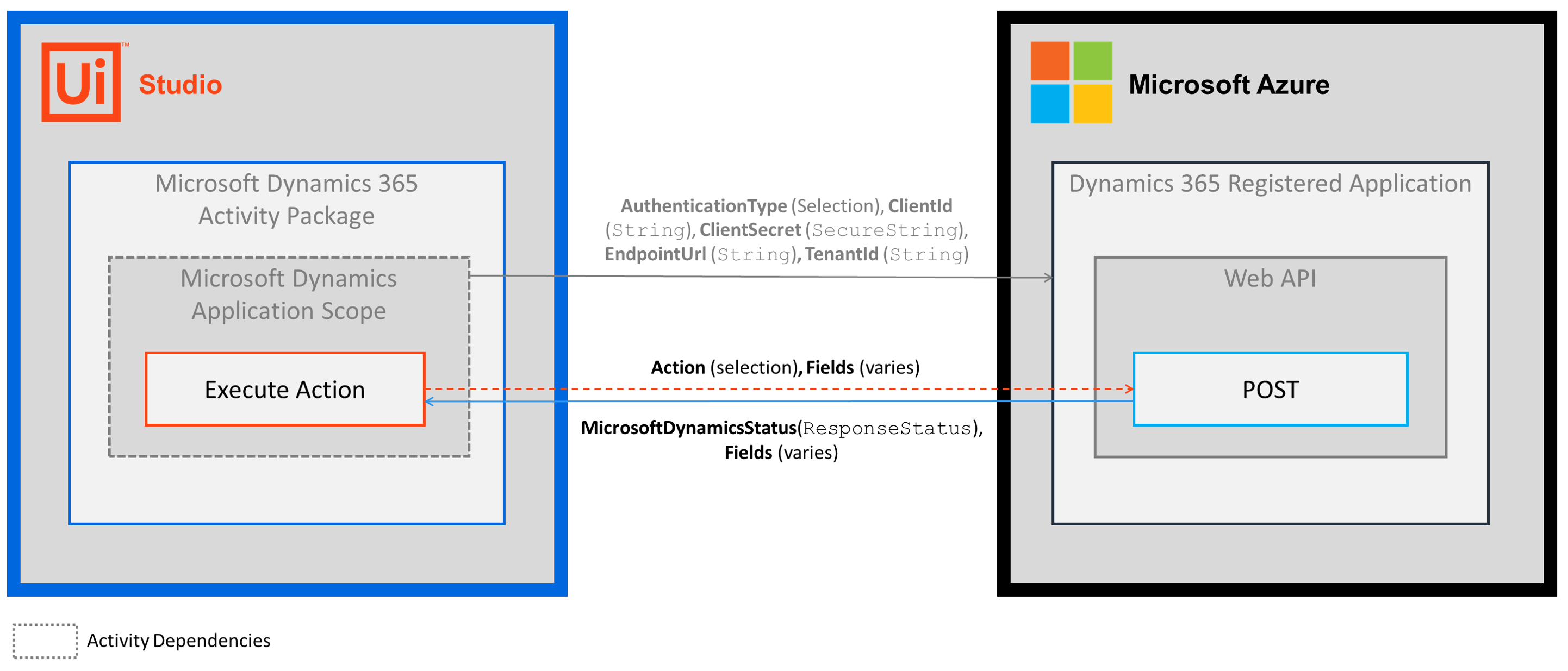

The following steps and message sequence diagram is an example of how the activity works from design time (i.e., the activity dependencies and input/output properties) to run time.

  1. Complete the Setup steps.
  2. Add the Microsoft Dynamics Application Scope activity to your project.
  3. Add the Execute Action activity inside the Microsoft Dynamics Application Scope activity.
  4. Click the Configure button inside the Execute Action activity (this opens the Object Wizard).
  5. Select the Action you want to insert and enter values for the fields returned in the Object Wizard.
  6. Create and enter a ResponseStatus variable for the Output property, as well as, any fields that have a Direction value of Out.
    • Your input property values are sent in the POST operation request.
    • The operation returns the ResponseStatus and any applicable field values to your output property variables.


Configure

To enter your Execute Action property values, you must use the Object Wizard by clicking the Configure button.

When you select an Action using the Object Wizard, the required in/out fields are displayed for the selected action. Unlike the other activities in this package, you can not add or remove in/out property fields for an Activity object.

For a complete list of the available fields for each object, see the Web API EntityType Reference in the Microsoft documentation.

Properties

Common
  • DisplayName - The display name of the activity. This field supports only strings or String variables.
Misc
  • Private - If selected, the values of variables and arguments are no longer logged at Verbose level.
Output
  • ResponseStatus - The status of the request (success/failure information). Enter a ResponseStatus variable (UiPath.BAF.Models.ResponseStatus). The ResponseStatus object includes three properties that you can use in other activities.
    • Success - Boolean - Specifies whether the API request was successful.
    • ErrorCode - String - The response error if the API request is unsuccessful (Success=False).
    • Message - String - The error message.

Example

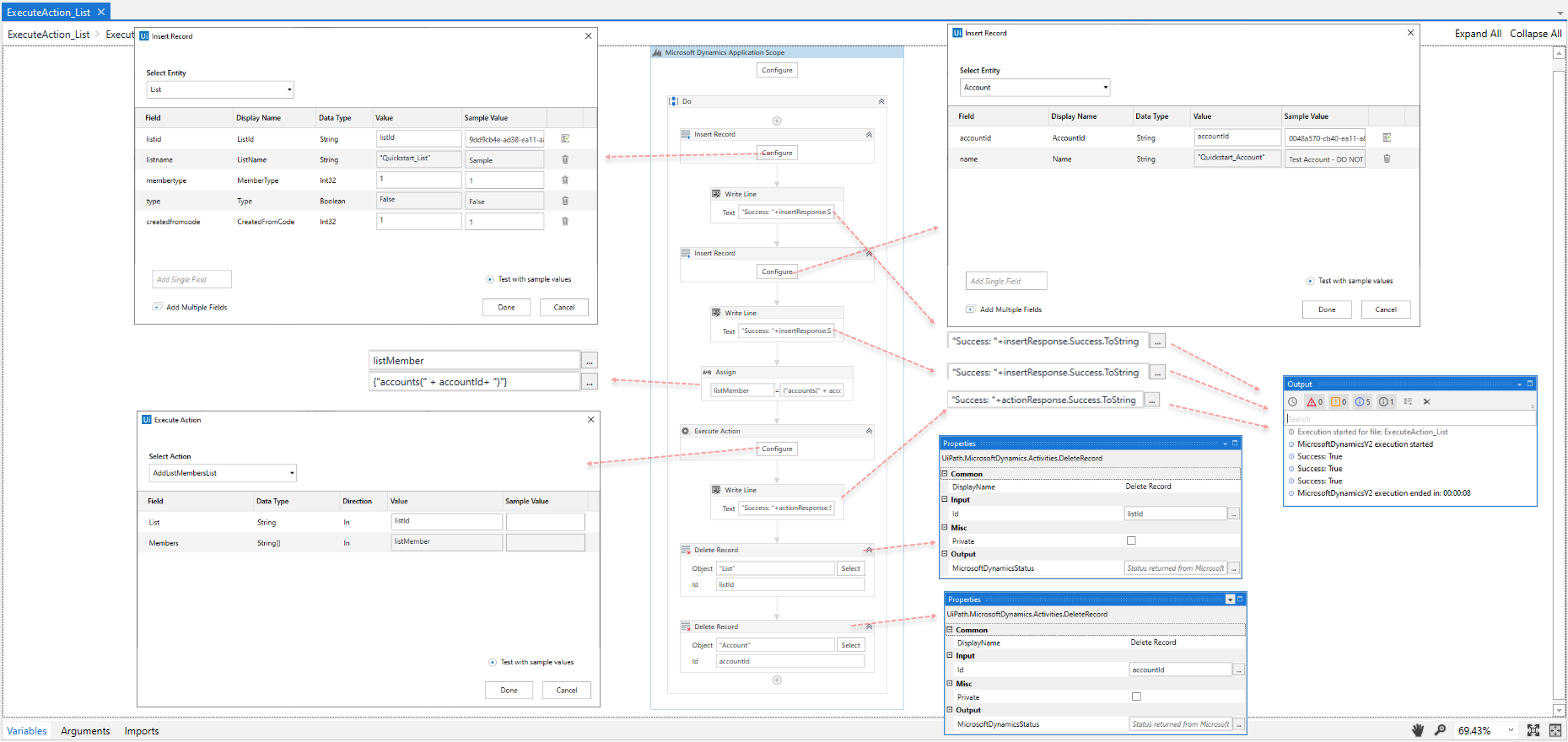

The following image shows an example of the activity dependency relationship and input/output property values.

For step-by-step instructions and examples, see the Quickstart guide.
