Update Channel

Activity for calling the Microsoft Graph UpdateChannel API to update the name and description of a specified channel in a team in Microsoft Teams

Overview

The Update Channel activity calls the Microsoft Graph UpdateChannel API to update the name and description (Name,Description) of a specified channel (Channel) in a team (TeamId).

How It Works

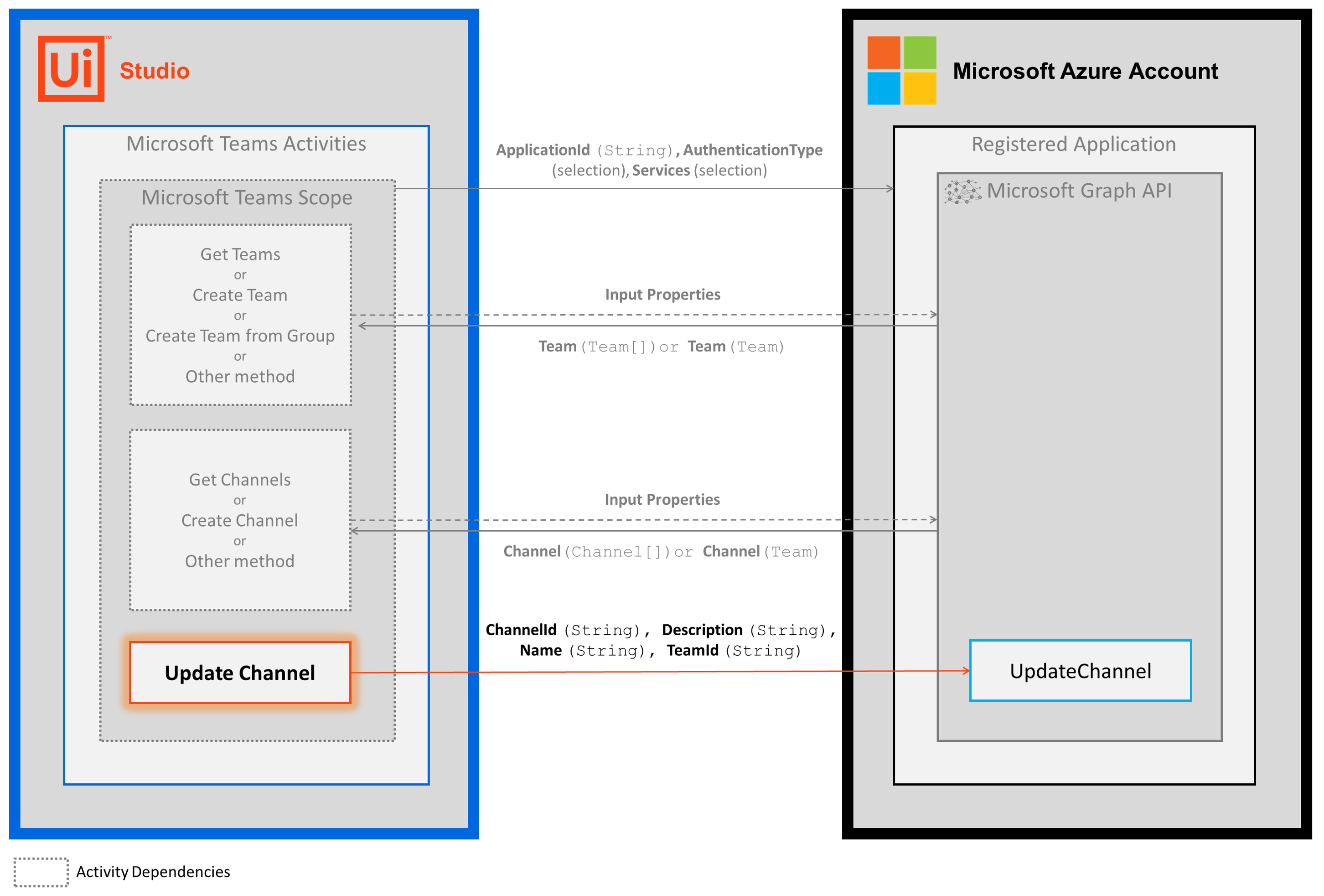

The following steps and message sequence diagram is an example how the activity works from design time (i.e., the activity dependencies and input/output properties) to run time.

1. Complete the Setup steps.
2. Add the Microsoft Teams Scope activity to your project.
3. Add an activity or run an external process that outputs a Team.Id value (e.g., Get Teams) AND an activity or external process that outputs a Channel.Id value (e.g., Get Channels).
4. Add the Update Channel activity inside the Microsoft Teams Scope activity.
5. Enter values for the Input properties.
6. Run the activity.

   • Your input property values are sent to the UpdateChannel API.



Properties

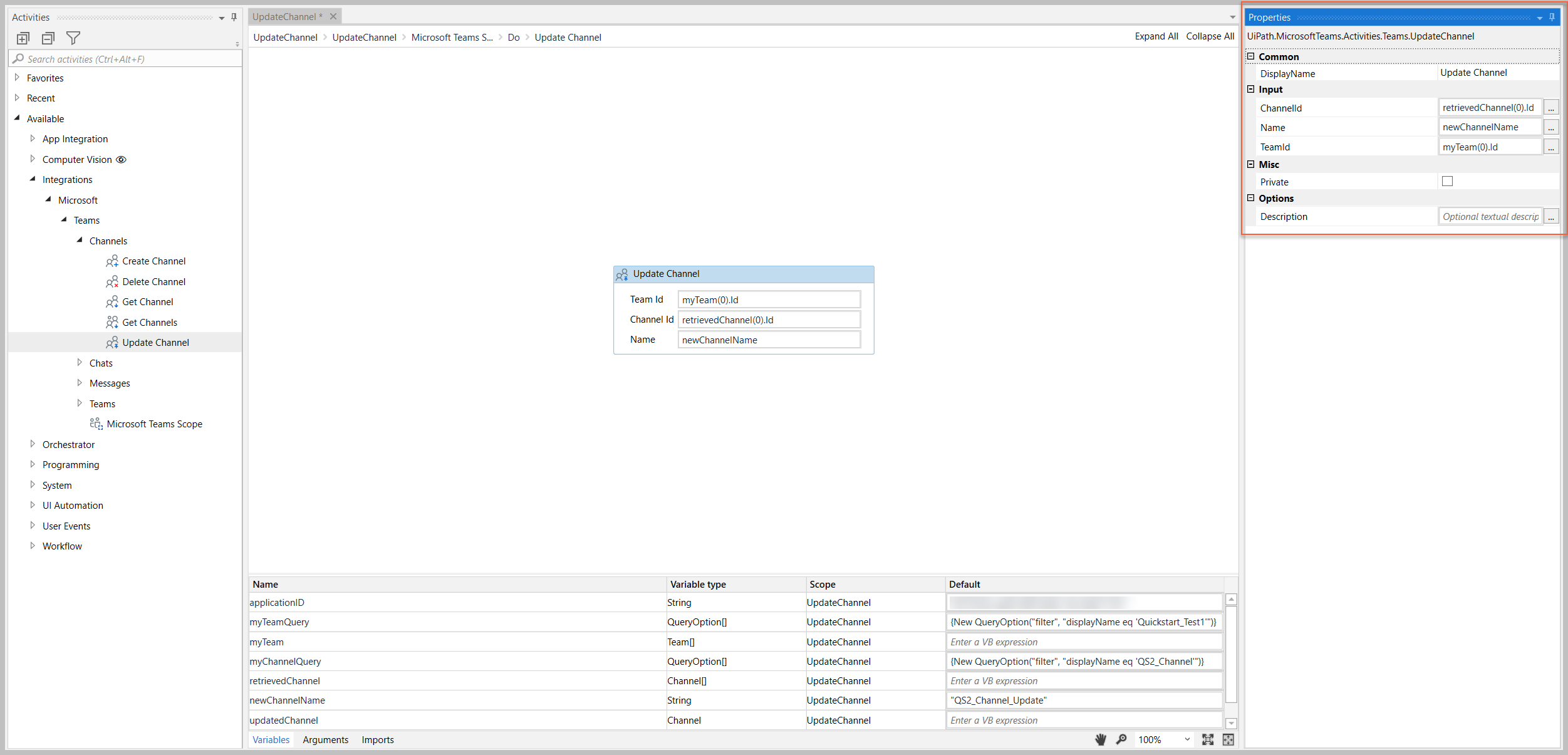

The values for the following properties are specified when adding this activity to your project in UiPath Studio.

Common

DisplayName

The display name of the activity.

Attributes	Details
Type	String
Required	Yes
Default value	Update Channel
Allowed values	Enter a String or String variable.
Notes	N/A

Input

ChannelId

The Id of the Channel object that you want to update.

Attributes	Details
Type	String
Required	Yes
Default value	Empty
Allowed values	Enter a String or String variable.
Notes	To get the Channel.Id value, use an external process or activity that includes the Channel.Id value in its output (e.g., Get Channels or external API call)

Name

The new display name for the channel.

Attributes	Details
Type	String
Required	Yes
Default value	Empty
Allowed values	Enter a String or String variable.
Notes	This value is displayed in the Microsoft Teams app.

TeamId

The Id of the Team object that contains the channel you want to update.

Attributes	Details
Type	String
Required	Yes
Default value	Empty
Allowed values	Enter a String or String variable.
Notes	To get the Team.Id value, use an external process or activity that includes the Team.Id value in its output (e.g., Get Teams or external API call)

Misc

Private

If selected, the values of variables and arguments are no longer logged at Verbose level.

Attributes	Details
Type	Checkbox
Required	No
Default value	Not Selected
Allowed values	Selected or Not Selected
Notes	N/A

Options

Description

The new description for the channel.

Attributes	Details
Type	String
Required	No
Default value	Empty
Allowed values	Enter a String or String variable.
Notes	N/A

Example

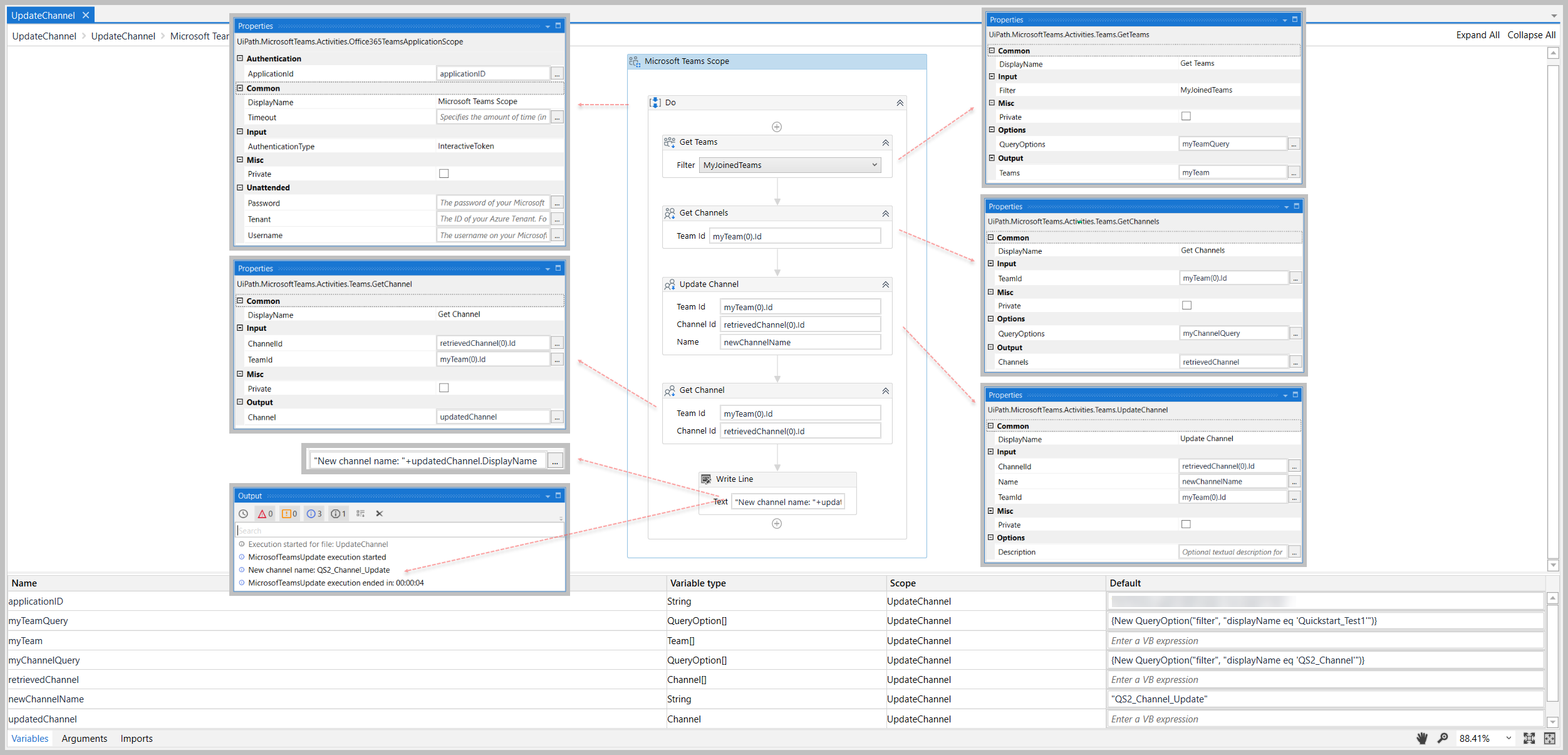

The following image shows an example of the activity dependency relationship and input/output property values.

For step-by-step instructions and examples, see the Quickstart guides.
