UI Automation Activities
Last updated Apr 26, 2024
Get Session Identifier
UiPath.MobileAutomation.Activities.GetSessionIdentifier
Retrieve the session ID of the current Mobile Device Manager connection to route HTTP commands to Appium endpoints so you can perform custom actions.
You can use the WebAPI activity package to make HTTP requests by using the Get Session Identifier to build endpoint request.

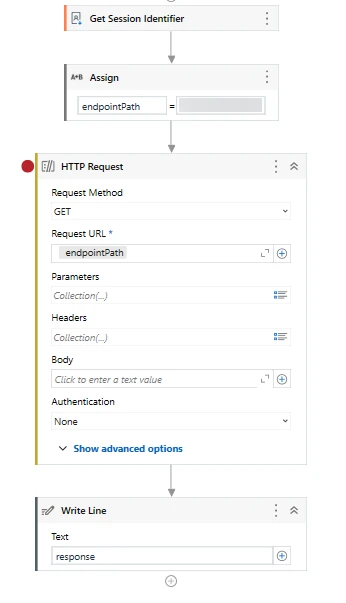

In the following example, the HTTP request activity was used to retrieve
the system time from an Appium endpoint. The
endpointPath variable
was used to concatenate the Appium session ID (e.g., "https://yourAppiumURL"
+ "/session/" + sessionId + "/appium/device/system_time").
Properties panel
Common
- ContinueOnError - Specifies if the automation should continue even when the activity throws an error. This field only supports Boolean values (True, False). The default value is False. As a result, if the field is blank and an error is thrown, the execution of the project stops. If the value is set to True, the execution of the project continues regardless of any error.
- DisplayName - The display name of the activity.
Misc
- Private - If selected, the values of variables and arguments are no longer logged at Verbose level.
Output
- Session Id - The unique identifier of the API endpoint session of your routing command.
