Setting up Azure Event Hub

You can set up real-time data export by leveraging Azure Event Hub.

If you are using Azure Event Hub, you can connect to the following monitoring tools:

• Power BI
• Splunk
• Elasticsearch

To configure real-time data export, you need to configure an integration with Azure Event Hub.

Tip:

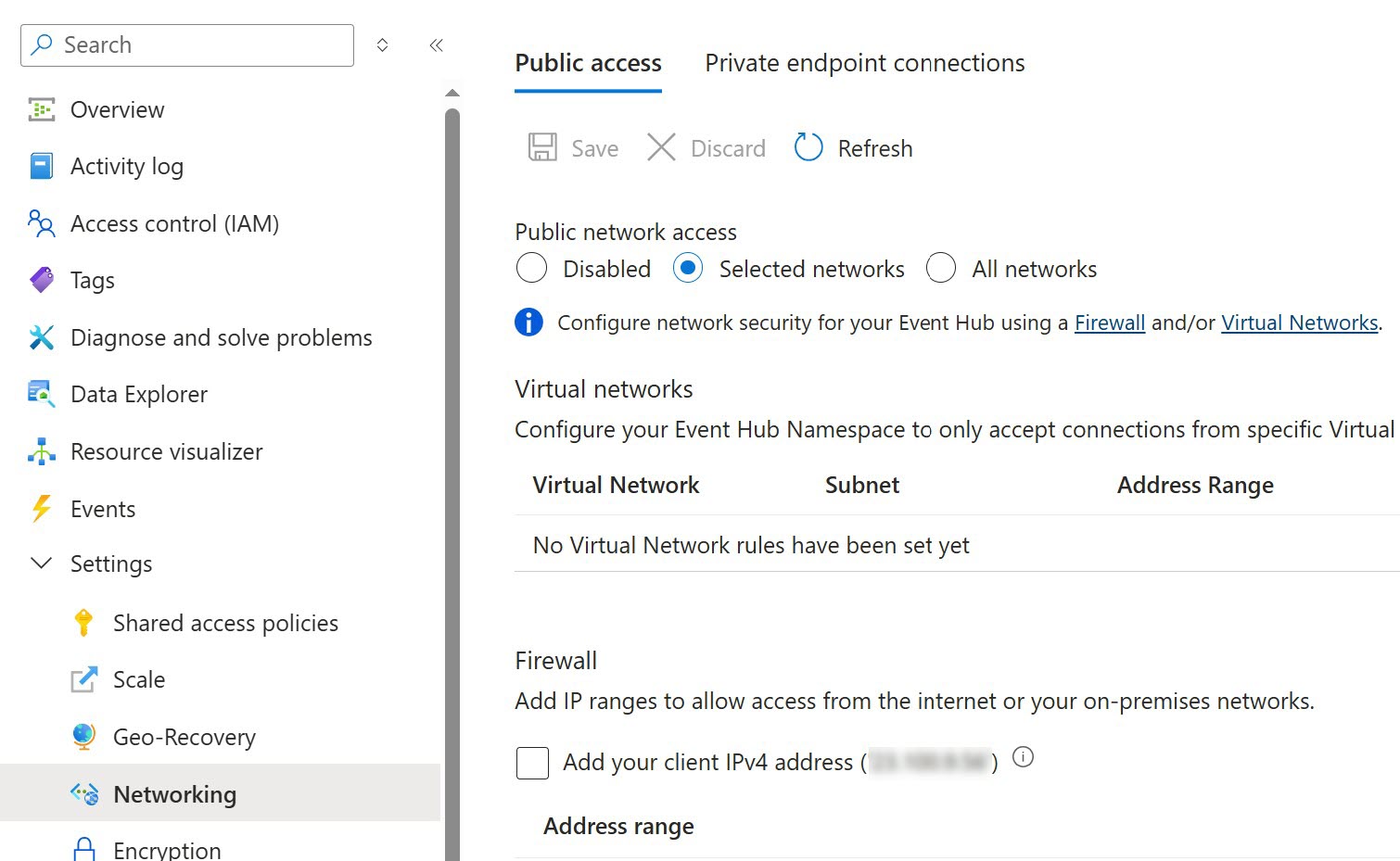

You can configure static IPs to the allowlist and not open your network to all external IPs. Go to Settings > Networking > Public access > Firewall > Address range in Azure Event Hub to add the sttatic IPs. Check the Configuring the firewall page from the Automation Cloud admin guide for the full list of IPs.

• Azure Event Hubs account
• Real-time data export is enabled on the tenant

1. Go to the Automation Cloud™ homepage.

2. Go to the Admin page.

3. From the tenants list, select the tenant in which you want to enable real-time data export.

4. Select Services.



5. Select the three-dot icon ⁝ from the Insights tile.

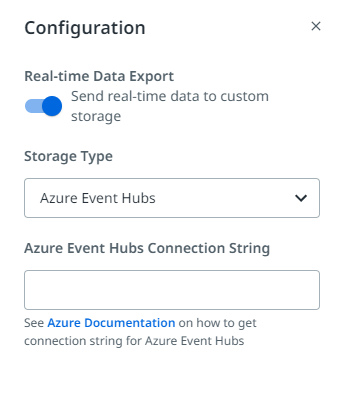

6. Select Real-time Data Export Configuration from the drop-down list.



7. Switch on the toggle button.

8. Select Azure Event Hubs from the Storage Type drop-down list.

9. Provide the Azure Event Hub connection string.

   Note:

   The connection string must be for a specific Azure Event Hub, but it can't be a namespace connection string. An example of a connection string is: Endpoint=sb://xxxx.servicebus.windows.net/;SharedAccessKeyName=RootManageSharedAccessKey;SharedAccessKey=xxxxxxxxxxxxx;EntityPath=xx



10. Select Save.

Note:

You need the select at least the following scopes in Microsoft Azure under Shared Access Signatures:

• Send
• Listen
