Anwenden von Filtern und Ansichten

Ordnerstruktur über Filter und Ansichten

To organize the default, flat list display of your objects (Requirements, Test Cases, Test Sets) into meaningful structures, apply the available grouping and filtering criteria, and then save the resulting views as virtual, dynamic folders you can switch between with ease.

There are two types of views: the Default view (the flat view) and the custom structured views (created by users via grouping and filtering). In addition, you can keep the structured custom views that you create private or share them with other project members by making them public.

Auf einen Blick können Sie benutzerdefinierte strukturierte Ansichten erstellen, indem Sie eine oder beide der folgenden Methoden kombiniert anwenden:

• Grouping (new feature) – Group the objects by custom field definitions of the type Label.
  Wichtig:

  The Group by capability (which is part of custom structured views) is available in Test Manager only when delivered through Test Cloud.

• Filtering (revamped UI) – Filter the objects by their native properties (such as Updated by, Studio Project, and others).
  Wichtig:

  Public views can be edited by other users.

Gruppieren von Objekten (neue Funktion)

You can group your objects by custom field definitions of the type Label.

Wichtig:

The Group by capability (which is part of custom structured views) is available in Test Manager only when delivered through Test Cloud.

Szenario

Consider the following scenario. You want to check the test cases which were run in a particular sprint, on a specific application component. You also want to check the sprint and the component for test “GUJDM:15”. You navigate to the Test Cases view, but it is difficult to obtain this information from the Test Cases list.

So würde ein durchgängiger Flow aussehen:

1. Erstellen Sie die folgenden benutzerdefinierten Felddefinitionen und ihre Werte. Eine benutzerdefinierte Felddefinition ist ein Mehrfachauswahlfeld.
   • Testzyklus

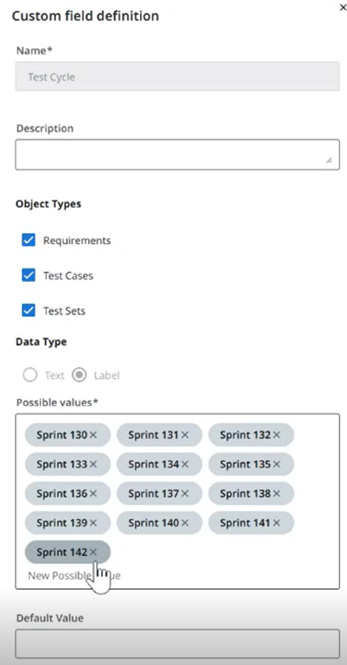

Figure 1. Test Cycle custom field

• Produktkomponente

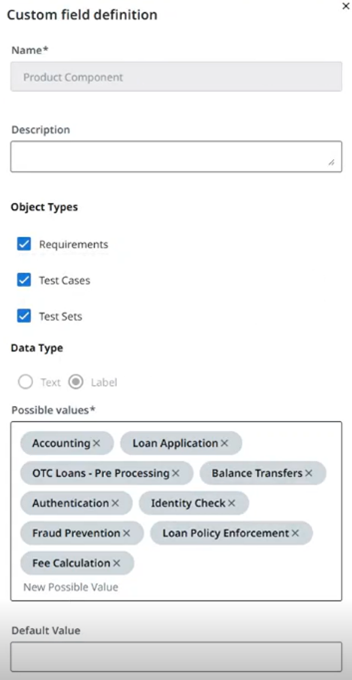

Figure 2. Product Component custom field

2. Go to Test Cases. 3. Select Group by, and select "Test Cycle".

Figure 3. Group by Test Cycle

4. In the left-hand side Group by panel, consult the sprints and the number of associated test cases in brackets. Select a sprint and check the test case details. The “Unspecified” category includes all the test cases which do not have a custom field attached to them.

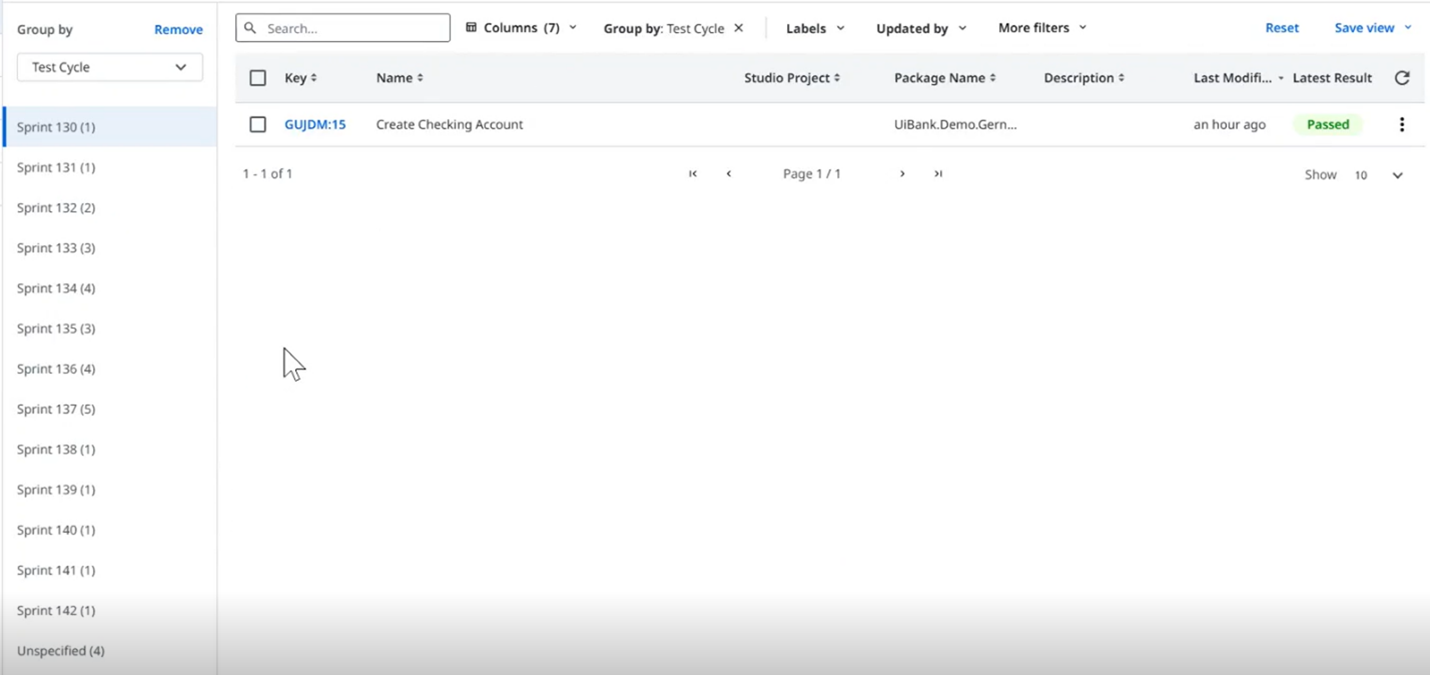

Figure 4. Group by Test Cycle - panel

5. From the Group By dropdown, select “Product Component”. Consult the components and the number of associated test cases in brackets. A structure emerges, allowing you to view if several test cases were run for a component or if a component was tested across several sprints.

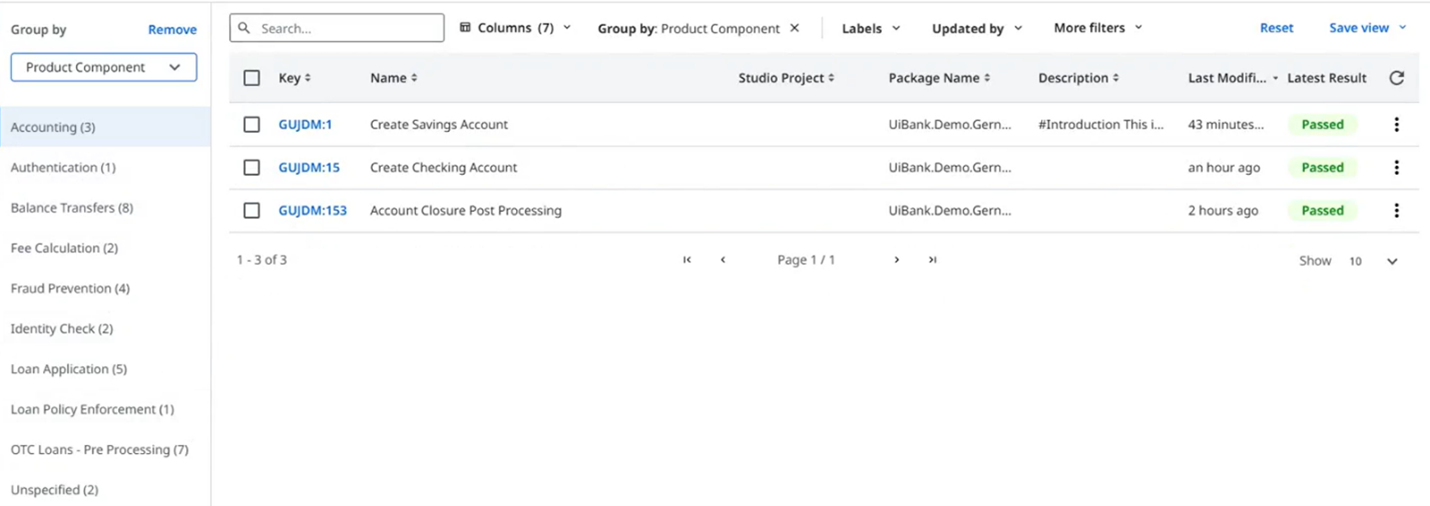

Figure 5. Group by Product Component - panel

6. Next, apply filters or save your changes as a custom structured view.

Schritte

1. Create custom fields of the type Label and associate them with your test objects.
2. Wechseln Sie zum gewünschten Testobjektabschnitt (d. h Anforderungen/Testfälle/Testsätze).

Figure 6. Filter criteria for custom structured views

3. Select Group by, and select or clear the check boxes of the custom fields. 4. Select Apply. 5. To revert your changes, in the Group by panel, select Remove.

Filtern von Objekten (überarbeitete Funktion)

You can filter the objects by their native properties (such as Updated by, Studio Project, and others).

Szenario

Sie möchten alle Testfälle überprüfen, die für die Produktkomponente „Buchhaltung“ fehlgeschlagen sind.

So würde ein durchgängiger Flow aussehen:

1. Erstellen Sie das benutzerdefinierte Feld „Produktkomponente“. Fügen Sie „Buchhaltung“ als einen der Werte hinzu.
2. Go to Test Cases.
3. Select Group by, and select the “Product Component” check box.
4. In the Group by panel, select “Accounting”.
5. Select More filters > Latest result. The Latest result filter appears on the filter bar. Expand the Latest result filter, and select the Failed check box.

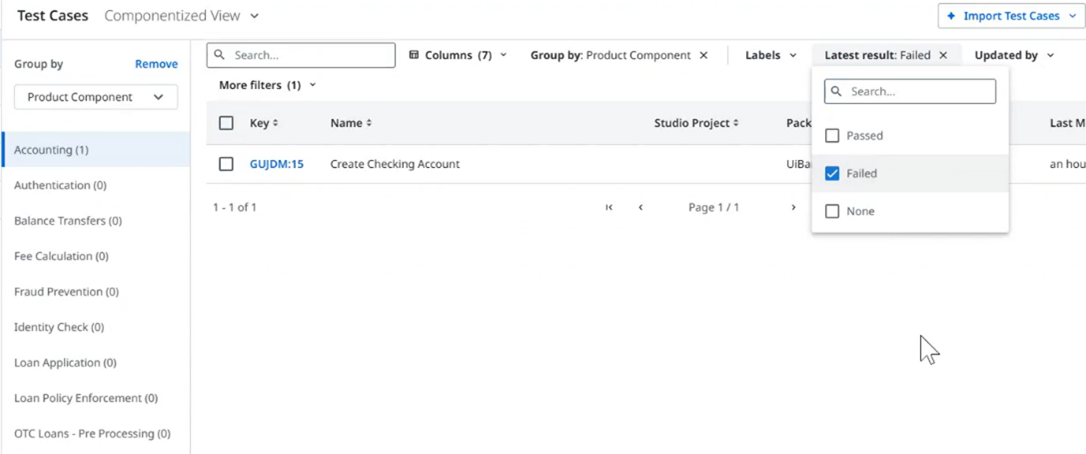

Figure 7. Grouping and filtering in a custom structured view

Schritte

1. Wechseln Sie zum gewünschten Testobjektabschnitt (d. h Anforderungen/Testfälle/Testsätze).
2. Wählen Sie eines oder mehrere der verfügbaren Filterkriterien aus.

Figure 8. Filter criteria for custom structured views

3. To manage the columns that are displayed in the table, select Columns, and select or clear the check boxes of one or more native properties of the object. Select Apply. 4. To have a filter appear as a standalone selection criterion in the filter bar, select More filters, and select or clear the check boxes of native properties or of custom fields (of the type label). Select Apply. To remove a filter from the filter bar, select More filters > Clear selection. 5. To view objects updated by you or other users, select Updated by, and select or clear the check boxes of one or more users. Select Apply. To revert your changes, select the x sign next to Updated by.

Verwalten von benutzerdefinierten strukturierten Ansichten (überarbeitete Funktion)

There are two types of views: the Default view (the flat view) and the custom structured views (created by users via grouping and filtering). In addition, you can keep the structured custom views that you create private or share them with other project members by making them public.

Wichtig:

Public views can be edited by other users.

Erstellen Sie benutzerdefinierte strukturierte Ansichten

1. Go to the desired test object section (i.e. Requirements, Test Cases, Test Sets).

Figure 9. Filter criteria for custom structured views

2. Apply the available grouping and filtering criteria. 3. To save you custom structured view, go to the end of the filter bar, expand the Views menu, and select Save new view. 4. In the Save new view window, give your view a name (in the Label field) and decide whether to keep the new view private or set it to Public for other users to access and edit. Select Save to confirm changes.

Figure 10. Save New View for custom structured views

Wichtig:

Public views can be edited by other users.

Wechseln Sie zwischen Ansichten

1. Identify the upper, left-hand corner of the object screen (Requirements, Test Cases, Test Sets).
2. Expand the menu, and select the Default view or a custom structured view.

Figure 11. Switching between custom structured views

Aktualisieren Sie die Filter von benutzerdefinierten strukturierten Ansichten

1. Identify the upper, left-hand corner of the object screen (Requirements, Test Cases, Test Sets).
2. Erweitern Sie das Menü und wählen Sie eine benutzerdefinierte strukturierte Ansicht aus.
3. Aktualisieren Sie die Filterkriterien.
4. To save your changes, go to the end of the filter bar, expand the Viewsmenu, and select Save current view.
5. In the Save current view window, give your view a name (in the Label field) and decide whether to keep the new view private or set it to Public for other users to access and edit. Select Save to confirm changes.

Aktualisieren Sie den Namen oder die Sichtbarkeit von benutzerdefinierten strukturierten Ansichten

1. Identify the upper, left-hand corner of the object screen (Requirements, Test Cases, Test Sets).
2. Expand the menu and select Manage views.
3. To edit a private view, select My views. To edit a public view, select Shared views.
4. Identifizieren Sie die Ansicht, die Sie bearbeiten möchten, und wählen Sie das Bleistiftsymbol.
5. In the Edit view window, update the name and the visibility.
6. Wählen Sie Speichern.

Löschen Sie benutzerdefinierte strukturierte Ansichten

1. Identify the upper, left-hand corner of the object screen (Requirements, Test Cases, Test Sets).
2. Expand the menu and select Manage views.
3. To delete a private view, select My views. To delete a public view, select Shared views.
4. Identify the view you want to delete, right-click the three vertical-dot icon, and, from the context menu, select Delete.

Führen Sie andere Vorgänge (klonen, öffentlich oder privat) für benutzerdefinierte strukturierte Ansichten durch

1. Identify the upper, left-hand corner of the object screen (Requirements, Test Cases, Test Sets).
2. Expand the menu and select Manage views.
3. To manage a private view, select My views. To manage a public view, select Shared views.
4. Identify the view of interest, right-click the three vertical-dot icon, and, from the context menu, select the operation you want to perform: Make public, Make private, Clone view.

Figure 12. Operations with custom structured views

Löschen Sie alle Filter, die auf benutzerdefinierte strukturierte Ansichten angewendet wurden

1. Identify the upper, left-hand corner of the object screen (Requirements, Test Cases, Test Sets).
2. Erweitern Sie das Menü und wählen Sie eine benutzerdefinierte strukturierte Ansicht aus.
3. On the filter bar, select Reset.
