UiPath Process Mining

The UiPath Process Mining Guide

Accounts payable - Process

Introduction

Accounts payable - Process is the main dashboard where you can analyze the complete Purchase-to-Pay process from an invoices perspective.
See the illustration below.

KPIs

Below is a description of the KPIs that are displayed at the top of the Accounts payable - Process dashboard.
If you click on a KPI, the corresponding metric is selected in the Invoices dashboard item.

KPI

Description

Variants

The number of various process paths different invoices have taken.

A variant is a specific path through the process, a set of activities that were taken in a specific order. Usually, several purchase order items have followed the same variant.

Avg. throughput time

The average throughput time between the first and the last event for invoices.

Percentage first time right

The percentage of unique invoices that only have main events and for which the final payment is done, related to the total number of invoices.

Total value (invoiced)

Total value of the invoices.

Invoices

Total number of invoices.

Invoices

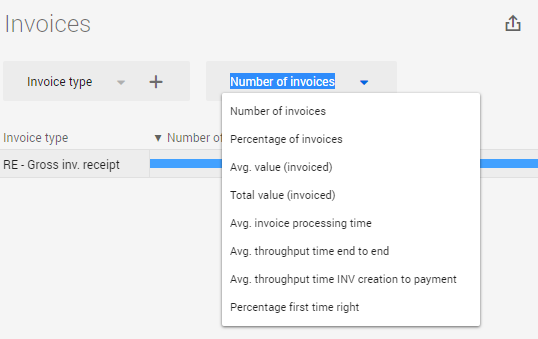

With the Invoices dashboard item you can analyze the invoices in more detail.

You can select various attributes of the invoices and create different contexts by selecting metrics from the metric selector. See the illustration below.

Metrics

Below is a description of the metrics.

Metric

Description

Number of invoices

The number of unique invoices created within the selected period.

Percentage of invoices

The percentage of unique invoices created within the selected period related to the total number of invoices.

Avg. value (invoiced)

The average value of invoices created within the selected period.

Total value (invoiced)

The total value of invoices created within the selected period.

Avg. invoice processing time

Average number of days between the invoice date and the creation date for invoices created within the selected period.

Note: The processing time is calculated only if both dates are available and occurred in the right order.

Avg. throughput time end to end

The average throughput time between the first and the last event for invoices created within the selected period.

Note: The throughput time is calculated only if both dates are available and occurred in the right order.

Avg. throughput time INV creation to payment

The average throughput time from creating an invoice to the actual payment of the invoice for invoices created within the selected period.

Note: The throughput time is calculated only if both dates are available and occurred in the right order.

Percentage of first time right

The percentage of unique invoices which only have main activities and for which the final payment has been made, related to the total number of unique invoices created within the selected period for which a final payment has been made.

📘

Note

Metrics in the Purchase-to-Pay Discovery Accelerator never take Invoices with missing data into account when the metric is calculated.
For example, if an invoice does not have a value for the selected attribute and the metric calculates the average over this attribute, the Invoices is not taken into account.

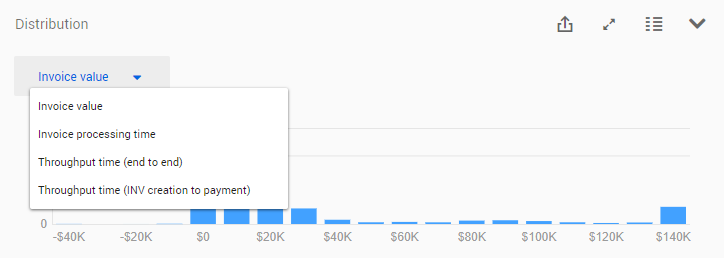

Distribution

The Distribution chart enables you to analyze the frequency of purchase order items based on the Invoice value, the Invoice processing time, Throughput time (end to end), or Throughput time (invoice creation to payment). See the illustration below.

The Details button imageimage enables you to analyze invoices in more detail and opens the Details - Invoices

Process graph

The process graph displays the Accounts payable process based on the number of cases. See the illustration below.

📘

Note

You can use the Detail slider to change the number of activities and/or edges shown.

Viewing the process based on a different metric

Follow these steps to select a different metric for the process graph.

Step

Action

1

Click on the imageimage icon in the process graph.

2

Select a different metric from the list of available metrics.

See the illustration below.

See also Working with Process Graphs.

Submitting Automation Ideas

When you identify a bottleneck in the Purchase-to-Pay process while monitoring, for example when a manual activity takes a long time to be executed, you might want to send a request to automate the activity to UiPath Automation Hub. You can do this directly from the process graph. See Sending Automation Ideas to UiPath Automation Hub for more information.

📘

Note

This function is only available if UiPath Process Mining is set up for integration with UiPath Automation Hub.

Submitting Automation Ideas

When you identify a bottleneck in the Purchase-to-Pay subprocess while monitoring, for example when a manual activity takes a long time to be executed, you might want to send a request to automate the activity to UiPath Automation Hub. You can do this directly from the process graph. See Sending Automation Ideas to UiPath Automation Hub for more information.

📘

Note

This function is only available if UiPath Process Mining is set up for integration with UiPath Automation Hub.
