The UiPath Process Mining Guide

From Data to Dashboard


This page describes the necessary steps to roll out a customized version of app or discovery accelerator to end-users. It starts with the input data and covers all the steps that are needed to provide the data in a meaningful way to end-users.

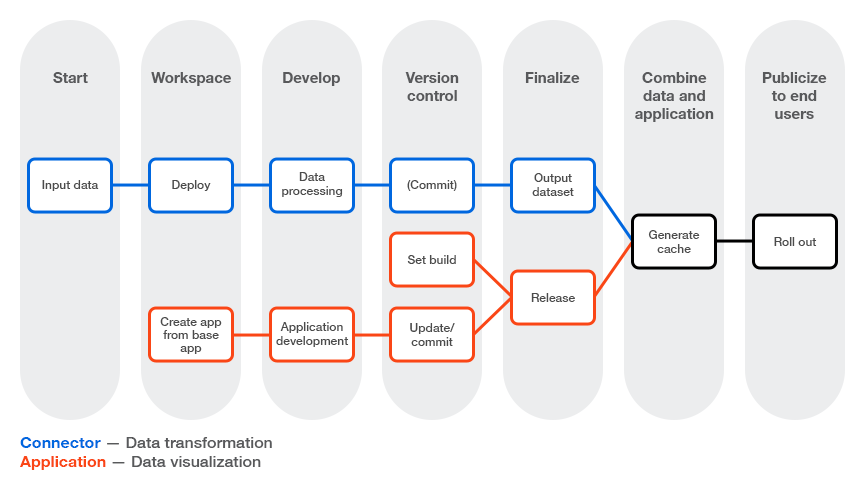

From data to dashboard

Hover over the image and click to go to the related page in the documentation.



For an optimal experience it is recommended to set the scaling to 100% in the display settings of your monitor.

Input Tables of the Basic Connector Deploying a Connector Creating an app from a base app Basic Connector Creating Dashboards Commit Set build Update/Commit Output Dataset Create Release Generate Cache Deploy a Release

Steps in the connector

The steps below refer to the Basic Connector, but you can do this in the same way for the SAP Connectors.

Step 1: Identify input data.
Step 2: Deploy the latest version of the connector.
Step 3: Transform the data in an appropriate event log.
Step 4: Commit your changes in the connector.
Step 5: Export the output dataset from the connector.



If you did not make any changes to the dataset, it is not needed to export the dataset.

Steps in the app or discovery accelerator

Step 1: Create a new app and use the latest version of the app or discovery accelerator as the base app.
Step 2: Make the desired changes, see App and Discovery accelerator development.
Step 3: Set the build version.
Step 4: Commit your changes.
Step 5: Create a release.



If you did not make any changes to the app or discovery accelerator, it is not needed to create a new release.

Steps to roll out the app or discovery accelerator with the new dataset

Step 6: Generate a cache with the created release and the output dataset.
Step 7: Deploy the release to make the changes available to end-users.
