Analysis - End to End

Introduction

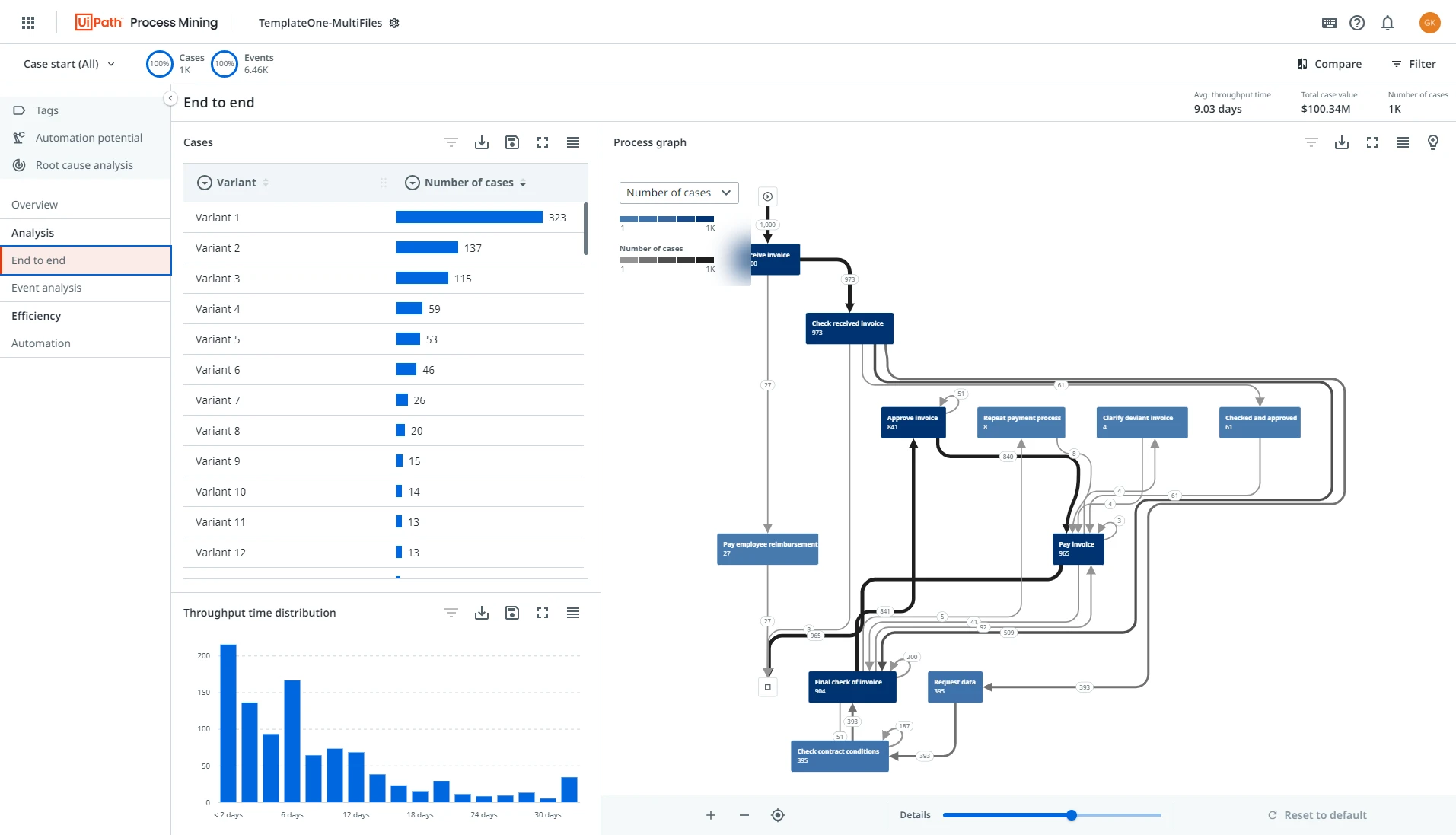

End to end is the dashboard where you can analyze the complete process regarding cases using various fields and metrics.

See the illustration below.



Context information

The context bar at the top of the End to end dashboard displays context information and KPI's.

Below is a description of the elements of the context bar.

KPI

Description

Avg. throughput time

The average throughput time for the end-to-end process.

Total case value

The total value of cases created during the selected period.

Number of cases

The number of unique cases created during the selected period.

Metrics

The End to end dashboard enables you to select various fields and metrics to analyze cases.

Below is a description of the metrics that can be selected in the End to end dashboard.

Metric

Description

Base

Number of cases

The number of unique cases.

Cases

Avg. case value

The average case value of cases created during the selected period.

Cases

Total case value

The sum of the values of the cases created during the selected period.

Cases

Avg. throughput time

The average throughput time for the end-to-end process.

Cases

Total throughput time

The total throughput time for the end-to-end process.

Cases

Distribution

The Distribution chart enables you to analyze the frequency of cases based on Throughput time. See the illustration below.



Process graph

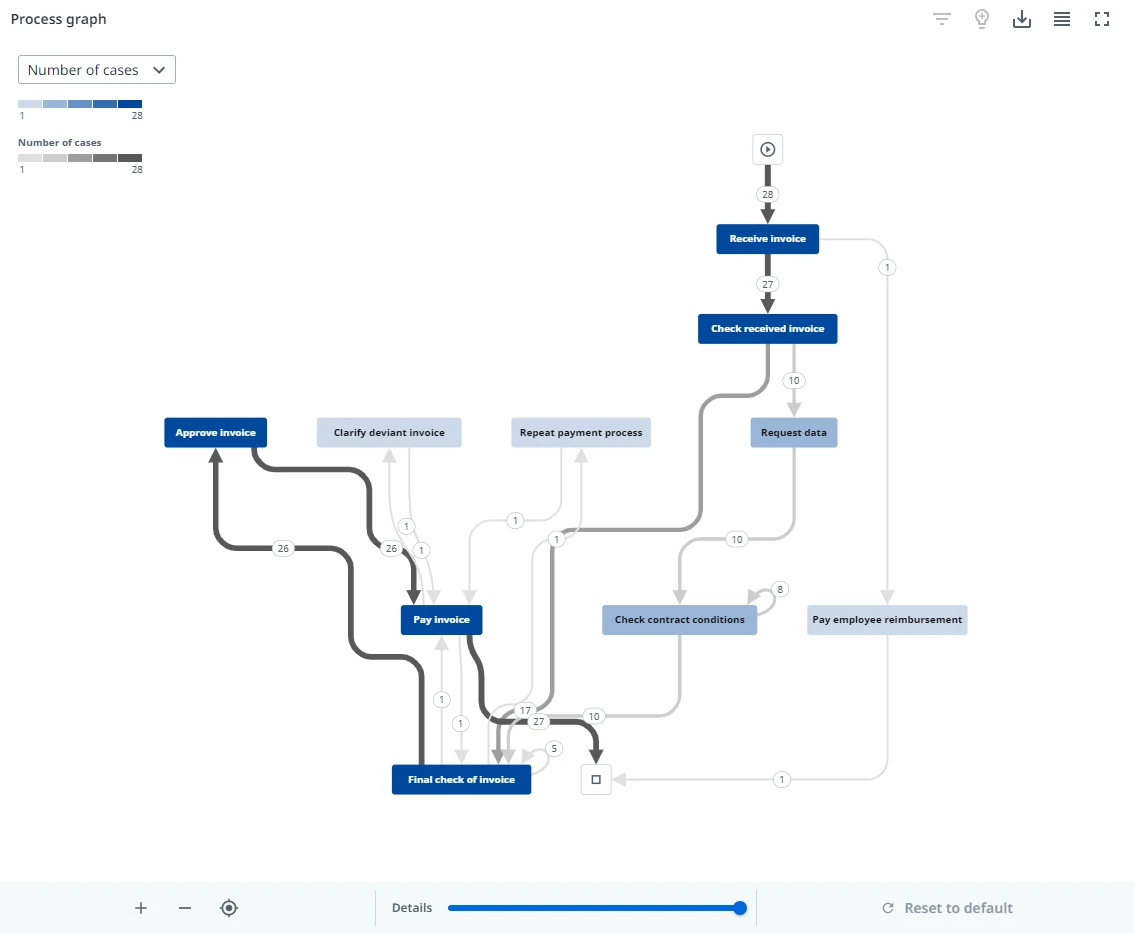

The process graph displays the end-to-end process based on the number of cases. See the illustration below.



You can select a different metric from the metric selector to display the process graph based on a different metric. Below is a description of the available metrics.

Metric

Description

Base

Number of cases

The number of unique cases.

Cases

Avg. case value

The average case value of cases created during the selected period.

Cases

Total case value

The sum of the values of the cases created during the selected period.

Cases

Number of events

The total number of events.

Event log

Avg. number of events

The average number of events.

Event log

Avg. event throughput time

The average throughput time for the end-to-end process.

Event log

Total event throughput time

The total throughput time for the end-to-end process.

Event log

Note: You can use the Detail slider to change the number of activities and/or edges shown.
