UiPath Apps is available on your UiPath Portal. You can access your Apps homepage by selecting 'Apps' from the left-hand navigation bar.

If it's your first time visiting the homepage, you may not have any apps to run yet. If you're a returning user then you see apps that you've created, apps that other users have invited you to collaborate on, and apps that you can run.

875875

:information-source: If you have feedback we'd love to hear it over on the UiPath Apps Forum.

Creating a new app

  1. Click on the Create new button on the App Studio homepage.
  2. Give the new app a name.
  3. Click the Create button.
890890

You can select a template for the first page or blank page.

19171917

Adding controls

  1. Click the Add new control Add New Control iconAdd New Control icon icon from the top of the canvas.
  2. Click the 'v' icon to expand each control section and locate the control you would like to add.
  3. Click and drag the control to the desired location on the canvas.
18501850

Adding pages

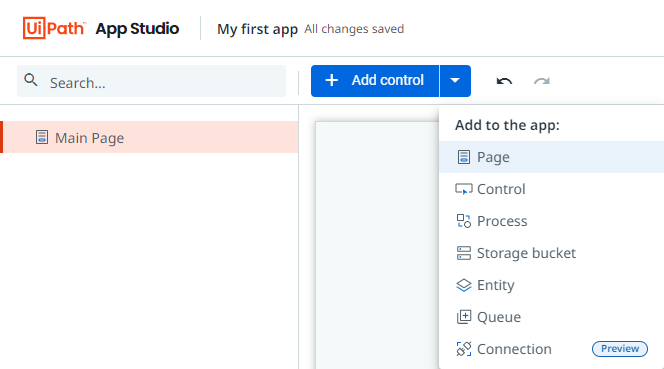

  1. Click the Add any Add Any iconAdd Any icon icon from the top of the canvas.
  2. Select Page.
664664

The first page in this list is the first page to run when you launch your app. The ordering of subsequent pages doesn't have an impact on runtime, but you can re-arrange them to help keep your app organized. To set another page as the start page you can either:

  • Right Click > Set as Start Page
  • Or click and drag the page to reorder it

Styling your controls

App Studio provides visual presets for many controls to help accelerate your app development, but you can always drill into specific styling properties to customize your app in any way you want.

To change the style of a control:

  1. Select the control on the canvas
  2. Select the Style tab in the properties panel
  3. Change individual styling properties to change the look and feel of your app

For more details about styling, see the Controls Overview

18521852

Adding a process

To add a process that is already in Orchestrator:

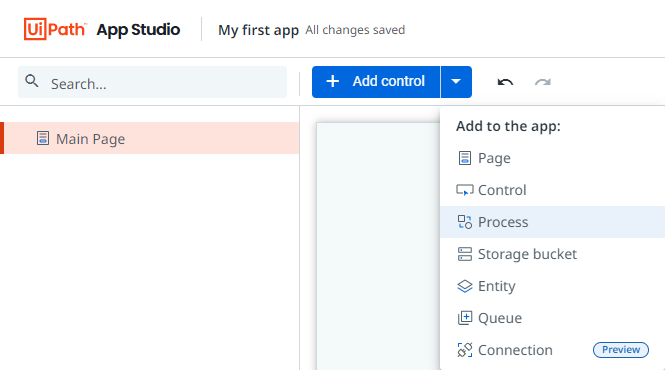

  1. Click the Add any Add Any iconAdd Any icon icon from the top of the canvas.
  2. Select Process.
665665
  1. Choose an Orchestrator tenant that you have access to within your account.
  2. Select the folder where you published your process.
  3. Select the process(es) you want to include in your app.
  4. Click Add.

For more details, see adding a process to your app.

Adding a storage bucket

  1. Click the Add any Add Any iconAdd Any icon icon from the top of the canvas.
  2. Select Storage bucket.
665665
  1. Choose an Orchestrator tenant that you have access to within your account.
  2. Select the folder where the storage bucket is located in.
  3. Select the storage bucket(s) you want to include in your app.
  4. Click Add.

For more details, see adding a storage bucket to your app.

Adding an entity

  1. Click the Add any Add Any iconAdd Any icon icon from the top of the canvas.
  2. Select Entity.
664664
  1. Choose an Orchestrator tenant that you have access to within your account.
  2. Select the folder where the entity is located in.
  3. Select the entity(es) you want to include in your app.
  4. Click Add.

For more details, see adding an entity to your app.

Adding a queue

  1. Click the Add any Add Any iconAdd Any icon icon from the top of the canvas.
  2. Select Queue.
665665
  1. Choose an Orchestrator tenant that you have access to within your account.
  2. Select the folder where the entity is located in.
  3. Select the entity(es) you want to include in your app.
  4. Click Add.

For more details, see adding a queue to your app.

Adding a connector

  1. Click the Add any Add Any iconAdd Any icon icon from the top of the canvas.
  2. Select Connection.
665665
  1. Choose the desired connection.
  2. Connect to the selected connector.
  3. Click Add.

For more details, see adding a queue to your app.

Data binding

To bind your controls to process inputs or outputs, use their Value Binding field. For more details, see binding process inputs and outputs to controls on the canvas.

18501850

Events and logic

Events and Rules control the end-user experience inside of your app. The events available for a control are determined by that control's type. For example, Pages have a 'Loaded' event, while a textbox has a 'Value Changed' event.

To customize interactions within your app:

  1. Select the control that you would like to add an event to.
  2. Click the Events tab on the properties pane.
  3. Choose an event you'd like to customize and click Create Rule.
  4. Start typing or select a rule from the available list.

For more, see Events and Rules.

18521852

Preview and publish

You can preview your app at any time during development by clicking the Preview button in the header. Check out the rest of the documentation to learn more about Preview and Publishing.
