Automation Basics

About Activities

Activities are the basic building blocks of an automation project, each representing one or more manual tasks that StudioX can automate. A sequence of related, interconnected activities makes up an automation project. When you consider automating a repetitive process, you must first break down that process into each of the individual manual steps you take, and then identify the activities in StudioX that automate each of those steps.

For example, let’s say that you want to automate the following workflow:

1. Open a spreadsheet.
2. Open a business application
3. Copy the data from a cell in the spreadsheet.
4. Paste the copied data into a field in a business application.
5. Click a button in the application to submit the data.

When you create a project in StudioX to automate that process, you use the following activities:

1. Use Excel File to indicate which spreadsheet you want to use.
2. Use Application/Browser to indicate which application you want to use.
3. Type Into to select the input field in the business application where to copy the data as well as the cell from which you want to copy the data.
4. Click to indicate which button to click to submit the data in the business application.

There isn’t always a one-to-one relationship between a manual step and a StudioX activity. As you can see in the above example, the Type Into activity covers two manual steps because you use it to indicate both the source and the destination of the copied text.

The Activities Panel

The Activities panel shows available activities that can be added to the current project. You can search for activities by name or description using the search box at the top of the panel. To add an activity to your automation, double-click it or drag and drop it to the desired place in the Designer panel.

Hovering over an activity in the panel displays the package it belongs to and its description. To add an activity to the list of favorites, right-click it and select Add to favorites.

Customizing the Activities Panel

Click the View Options button at the top of the panel to open a menu that allows you to customize the panel. See the following table for a list of available options.

Option	Description
Show Favorites	Show a section with favorite activities. This option is selected by default.
Show Recent	Show a section with the ten most recently used activities. This option is not selected by default.
Show Categories	Group activities by the category they belong to. This option is selected by default.
Group by Packages	Group activities by the package they belong to. This option is not selected by default.
Pin Favorites	When searching in the panel, keep favorite activities always visible. Available if Show Favorites is selected. This option is not selected by default.
Show Developer	Show activities designed for the Studio profile. This option is not selected by default. These activities may not function as expected in the StudioX profile.

For example, if you are trying to view all Excel activities, you can select Group by Packages and deselect Show Categories.

Container Activities

Container activities define a scope or the conditions to be met for the execution of the activities added inside them. A container activity can be described as a parent activity that contains one or more child activities. Examples of container activities include:

• Resource activities - Add an application resource to the automation and make that resource available to the activities added inside them.
• For Each activities - Define a collection of items and repeat the activities added inside them once for each of those items.
• Repeat number of times - Similar to a For Each, but it repeats the activities added inside it for a specified number of times.
• If, Switch, and Check App State - Evaluate a condition and determine the flow of the automation by executing specific activities added inside them based on the result of the evaluation.
• Wait for Download - Detects a file download initiated by the activities added inside it and makes the file available in the automation.

Resource Activities

Activities are grouped into categories based on the application they apply to. Before you can automate tasks you perform in an application, you must first add the required application resource to the automation. The following activities add resources to your automations:

• Use Excel File - Use a specified Excel file. The data in the Excel file is available to all the activities added inside this activity. When you configure child activities, you can select individual cells, ranges, or sheets in the file directly from StudioX.
• Use Desktop Outlook App, Use Outlook 365, and Use Gmail add a desktop Outlook, Outlook 365, and Gmail account to the automation. The emails in the account are available to all the activities added inside this activity. When you configure child activities, you can select individual folders, messages, or message fields directly from StudioX.
• Use Word File - Use a specified Word document. Add the activities to perform on the file inside this activity.
• Use Application/Browser - Use a specified desktop application or web browser page. Add the activities to perform in the application or web browser inside this activity.
• Use PowerPoint Presentation - Use a specified PowerPoint file. Add the activities to perform on the file inside this activity.
• Use OneDrive & SharePoint - Select an account to use for OneDrive and SharePoint automation. Add the related activities inside this activity.

You can add as many resources as your automation requires. For activities that use more than one application, add the resources one inside the other. For example:

• To add activities that use both data from an Excel file and emails from an Outlook account, add a Use Excel File activity inside a Use Desktop Outlook App activity, and then add the common activities inside Use Excel File.
• To add activities that use both data from a web page and a Word document, add a Use Application/Browser activity inside a Use Word File activity, and then add the common activities inside Use Application/Browser.

Adding Global Resources to the Automation

When you add a resource to the automation using a resource activity, the resource is only available to the activities added inside the resource activity. To make a resource available to all the activities in a project, you can add the resource globally by connecting the project to the resource. Global resources are managed from the Data Manager panel, not added as activities to the project. This means that connecting the project to a resource also helps save space in the Designer panel.

For information on how to connect a project to an Excel workbook, see Connecting a Project to an Excel File.

Iterating through Items

Iterating refers to repeating one or more activities in your automation project for each individual item in a collection of items. To iterate through items, add one of the available For Each activities in which you define the collection, and then add the activities to repeat inside the For Each. When you configure the activities to repeat, indicate that an activity should use data from each item in the iteration by selecting the current item option from the Plus menu.

StudioX comes with the following For Each activities:

• For Each Excel Row - Repeat one or more activities for each row in an Excel table, range, or sheet.

  The current item option is CurrentRow. For some activities, you must also select which column to use from the current row.

• For Each Excel Sheet - Repeat one or more activities for each sheet in an Excel file.

  The current item option is CurrentSheet.

• For Each Email - Repeat one or more activities for each message in an Outlook folder, Gmail label, or in a selection of messages.

  The current item option is CurrentMail. For some activities, you must also select which field to use from the current mail: Subject, Body, Body as HTML, Bcc, Cc, To, From, or Priority.

• For Each File in Folder - Repeat one or more activities for each file in a folder on your computer.

  The current item option is CurrentFile. You must also select which file property to use from the current file: Size, Name, Full Name (includes full path), Folder, Last modified date, Last accessed date, Created date, IsReadOnly, or Size in KB.

• For Each Folder in Folder - Repeat one or more activities for each folder inside a specified folder on your computer.

  The current item option is CurrentFolder. For some activities, you must also select which folder property to use from the current folder: Name, Full Path, or Last modified date.

To make it easier to identify when configuring activities added inside a For Each, you can rename the current item option using a name that describes the items you are iterating through.

Configuring the Data Used by Activities

Activities can receive data as input and, upon execution, they can generate output data. You configure the data for each activity using the Plus menu available on the right side of data fields.

Depending on its purpose, an activity can have no data fields, one, or multiple data fields. The following information describes the options you can find in the Plus menu. Because the menu displays options that are relevant in the context of each field, activity, and parent activity, only a subset of the options is available for each field.

Options for Input Fields

Input fields define the data received by an activity using the following options:

• Data from resources added to the project:

  • Excel - Data from the Project Notebook or from an Excel file added to the automation. Select named cells, named ranges, tables, or sheets directly from the Plus menu, or select Indicate in Excel to open the workbook in Excel and indicate in it. Selecting Custom Input lets you manually enter sheet names, table names, cell addresses, or range addresses. If the activity is inside an For Each Excel Row activity, you can select the current row in the iteration.
  • Outlook / Gmail / Outlook 365 - Data from an email account defined for a parent mail resource activity. You can use the message selected in the Outlook desktop app when the project is executed or, if the activity is inside a For Each Email activity, the current email in the iteration.
  • PowerPoint - Data from a PowerPoint presentation defined for a parent Use PowerPoint Presentation activity. You can select slides, placeholders, slide masters, or layouts.
  • File - If the activity is inside a For Each File in Folder activity, you can use properties of the current file in the iteration.
• Text - Enter text using the built-in text builder. You can click Plus inside the Text Builder to add Excel data, mail data, or values you saved for later use to the text.
• Text - Empty Value - This option gives you the ability to have an empty text as a value for cases where you want to add additional text or update it later on.
• Number - Enter a numeric value or a formula. Formulas support the following operators and symbols: + (addition), - (subtraction), * (multiplication), / (division), ^ (exponent, for example 2^3 for 2 raised to the power of 3), ( ) (to enforce the order of operations).

  You can click Plus inside the Numeric Calculation window to add numeric values from the project. For example, select a cell in an Excel file, or a numeric value that you saved for later use.

• Condition Builder - Add conditional statements that are used to determine what activities to execute based on whether or not the conditions are met. For example, the If activity contains a condition field, and it executes a series of activities if the condition is met and, optionally, another set of activities if the condition is not met.

  You create a conditional statement by selecting two values and comparing them using one of the available operators: greater than, greater than or equal, less than, less than or equal, equal to, not equal to, is empty, is not empty, is true, is false, starts with, ends with, contains, is numeric, is not numeric.

  You can add multiple statements and select if all of the statements or any of the statements must be true for the condition to be met.

• True / False - Adds a conditional statement. Select either True or False for fields that support conditional statements in activities such as the If activity.

• Use Variable - Use the output of another activity that you stored as a variable in the project for the current field. In certain cases, StudioX adapts the variable type so it matches the type the field requires. For example, you can use Text variables in fields that require a Number since the value is automatically converted from Text to Number. When a variable type is converted to another type, StudioX adds the new type at the end of the variable's name.








• Choose Date/Time - Select a date from the calendar or a time (hour, minute). This option is available for date and time fields.
• Choose Duration - Select a duration (hours, minutes, and seconds). This option is available for duration fields.
• Ask when run - Prompt for a value during project execution, This option is available for fields that accept text, numeric, date/time, or Boolean (True/False) values.
• Paste from clipboard - Use an output value that you copied to the clipboard in another activity as input for the current field. This option is available for fields that accept text values or Excel ranges.
• Variables - Select a variable created for use in App/Web activities selectors.
• Arguments - Select a created argument to pass data between StudioX activities and apps.
• Open in Advanced Editor - Enter VB expressions.
• Clear Value - Clear the current selection in the field.

Options for Output Fields

Output fields define what to do with the data generated by an activity using the following options:

• Excel - Save output to the Project Notebook or an Excel file defined for a parent Use Excel File activity. Select named cells, named ranges, tables, or sheets directly from the Plus menu, or select Indicate in Excel to open the workbook in Excel and indicate in it. Selecting Custom Input lets you manually enter sheet names, table names, cell addresses, or range addresses. If the activity is inside an For Each Excel Row activity, you can select the current row in the iteration.
• Create Variable - Save the output for later use in your automation as a variable. Enter a name by which to refer to the variable in the project and select a data type from the following options: Text, Number, True or False, Number with decimals, Date, and Duration. The created variable can then be selected as input in another activity.
• Copy to clipboard - Save the output to the clipboard. You can then paste the value in an input field in another activity. This option is available for fields that output text, Boolean values (True/False), numbers, or Excel ranges (for example, the Destination field in the Copy Range activity). Boolean and number values are converted to text when copied to the clipboard.
• Rename Variable - Rename a variable you created for later use.
• Variables - Select a variable created for use in App/Web activities selectors.
• Arguments - Select a created argument to pass data between StudioX activities and apps.
• Open in Advanced Editor - Enter VB expressions.
• Clear Value - Clear the current selection in the field.

Using the Output of an Activity as Input for Another Activity

Passing data from one activity to another can be very useful, even essential when trying to achieve certain workflows. StudioX enables you to save the output generated by an activity in variables, and then use them as input in other activities later in the project:

1. To save data and use it in other activities, select the Create Variable option in the Plus menu of a field that configures the output data of an activity, and enter a name for the variable (saved value). You will use this name later to identify and select the variable as input in another activity, so make sure to use a unique name that describes the variable.

   Note: Certain activities may require you to select the type of the data along with the name of the variable. Select from the following options: Text, Number, True or False, Number with decimals, Date, and Duration. Select Advanced options if the type of data you need to store is not found in the list.
2. To use the variable as input for another activity later in the project, select it from the Use Variable option in the Plus menu of a field that configures the input data of an activity.

There are various scenarios in which this feature can be useful. Here are a couple of examples:

• A Read Text File activity reads and outputs the contents of a text file which can then be used as the input for an Append Text activity to add the text to a Word file.
• A File Exists activity checks whether a file exists and outputs the result (True or False) which can then be used in the condition of an If activity to determine specific actions to perform when the file already exists.

The Properties Panel

The Properties panel is contextual and enables you to view and edit advanced properties for a selected activity. When selecting multiple activities, only their common properties can be modified from the Properties panel.

The Properties panel is hidden by default. In most situations, you can configure activities using the options available in the Designer panel.

Managing Variables

Variables are used to store data of different types and pass it between activities in a project. All variables used in your project can be found and managed in the Data Manager panel. To edit or rename a variable, open the Data Manager panel, right-click on a variable and select Edit Variable.

Note: Starting with StudioX v2022.4, Saved Values have been replaced by Variables. The core functionality is the same, however, variables allow the data type to be set when a variable is created and later it can be changed by certain activities or manually by the user. Projects created in an older version of StudioX will still use the Saved Values system when opened in StudioX v2022.4.

Creating Variables

1. Click New in the Data Manager panel and select New Variable. The Variables Panel opens and adds a new variable at the bottom of the list.
2. Select a name in the Name field.
3. Select a data type in the Data Type field and click Plus on the right of the Default Value field to set a default value.

Optionally, click the +New button to create a new variable.

Alternatively, you can create a variable directly from the output field of an activity.

By default, all new variables are of String type (text). You can configure variables, based on how they are used:

• Type - Choose the value type you want your variable to store. The following options are available:

  • Boolean - This type has only two possible values: true or false. These variables enable you to make decisions, and therefore have a better control over your workflow.
  • Int32 - This type is used to store numeric information. Some of its uses are to perform equations, comparisons and pass important data.
  • String - Stores text information. This type of variable can be used to store any text-based information such as employee names, usernames or any other strings.
  • Object - Can be used to store different types of data. You can use this type of variable in situations where you need flexibility for the type of data you store in a variable. Make sure that the data type used in Object variables is compatible with the activities that use the variable.
  • System.Data.DataTable - This type can store big pieces of information, and act as a database or a simple spreadsheet with rows and columns. Can be useful to migrate specific data from a database to another and extract information from a website and store it locally in a spreadsheet, among other uses.
  • Array of [T] - Enables you to store multiple values of the same type.

  • Browse for Types - Allows you to explore more types that can be relevant to your task.

    Note: You can also create variables from inside activities that have output fields, such as Set Variable Value. In the output field (Save to), click the Plus menu, select Create Variable and give your variable a name and type.

Editing Variables

1. Open the Data Manager panel.
2. Right-click on a variable in the list and select Edit Variable. Alternatively, you can select Rename Variable and change the name of the variable directly from the Data Manager panel.

Variables types and values can also be edited directly from the Data Manager panel by clicking the arrow icon to the left of a variable. This brings up additional fields where you can edit the variable.

Removing Variables

1. Open the Data Manager panel.
2. Under Variables, right-click on a variable to open the context menu.
3. Select Delete Variable.

Managing Arguments

Arguments are used to pass data between activities in a project and can be used to integrate an workflow with other products such as UiPath Apps.

Once configured, you can use arguments in an activity similar to how you would use Variables (saved values). To edit or rename an argument, open the Data Manager panel, right click an argument and select Edit.

Creating Arguments

1. Click New in the Data Manager panel and select New Argument. The Arguments panel opens and adds a new argument at the bottom of the list.
2. Select a name in the Name field.
3. Select a direction using the Direction field and a data format using the Data Format field.
4. Select a value using the Plus menu next to the Default Value field to set a default value.

Optionally, click +Add to create a new argument.

By default, all new arguments are of String type and have an In direction. You can configure arguments, based on how they are used:

• Type - Choose the value type you want your argument to store. The following options are available:

  • Boolean - This type has only two possible values: true or false. These arguments enable you to make decisions, and therefore have a better control over your workflow.
  • Int32 - This type is used to store numeric information. Some of its uses are to perform equations, comparisons and pass important data.
  • String - Stores text information. This type of argument can be used to store any text-based information such as employee names, usernames or any other strings.
  • Object - Can be used to store different types of data. You can use this type of argument in situations where you need flexibility for the type of data you store in an argument. Make sure that the data type used in Object arguments is compatible with the activities that use the argument.
  • System.Data.DataTable - This type can store big pieces of information, and act as a database or a simple spreadsheet with rows and columns. Can be useful to migrate specific data from a database to another and extract information from a website and store it locally in a spreadsheet, among other uses.
  • Array of [T] - Enables you to store multiple values of the same type.
  • Browse for Types - Allows you to explore more types that can be relevant to your task.

• Direction - Select a direction for your argument when used with apps. The following options are available:

  • In – the argument can only be used within the given project.
  • Out - the argument can be used to pass data outside of a given project.
  • In/Out – the arguments can be used both within and outside of a given project.

Editing Arguments

1. Open the Data Manager panel.
2. Right-click on an argument in the list and select Edit Argument. Alternatively, you can select Rename and change the name of the argument directly from the Data Manager panel.

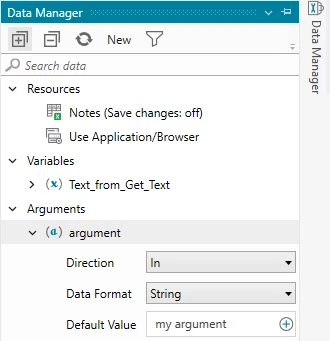

Argument direction, data format, and values can also be edited directly from the Data Manager panel by clicking the arrow icon to the left of an argument. This brings up additional fields where you can edit the argument.

Removing Arguments

1. Open the Data Manager panel.
2. Under Arguments, right-click on an argument to open the context menu.
3. Select Delete.

Running Your Automations

We recommend running your automations often during the design stage. This enables you to verify that the project works as expected and lets you identify potential errors early.

To run an automation, click Run in the StudioX ribbon or press F5 on your keyboard.

You can stop project execution by clicking Stop in the ribbon or pressing F5 on your keyboard. After the project is executed, a message displayed at the top of the Designer panel informs you if the run was successful or not.

To run only parts of your project, right-click any activity and select:

• Run to this Activity to execute all the activities in the project before the activity.
• Run from this Activity to execute all the activities in the project starting with the activity.

Running in Picture-in-Picture

If you want to use your computer during project execution without interference from the Robot, you can run your automation in picture-in-picture mode. This executes the project in another session opened in a separate window, leaving you in full control of the keyboard, mouse, and screen.

To run an automation in picture-in-picture, click the arrow next to Run in the StudioX ribbon, and then select Run in PiP. Alternatively, you can press F6 on your keyboard. The Robot starts executing the activities in the project in a new window.

Note: Automations that use Microsoft Office resources do not run successfully in picture-in-picture if the resources are already open in the main session. Before you run an automation in picture-in-picture, close any PowerPoint, Excel, or Word file that is accessed by the automation.

Common Scenarios

To help speed up automation design, StudioX comes with common scenarios, reusable pieces of automation that you can add to any project. A common scenario represents one or more activities that are grouped together in a logical order to automate a task or part of a task.

Common scenarios are context-sensitive, which means the available options depend on where exactly you are in your automation. For example, in a Use Desktop Outlook App activity, the available common scenarios are related to Outlook tasks, such as Download email attachments. For a list of available common scenarios, see Common Scenarios Descriptions.

To use a common scenario in a project:

1. Click the Add activity icon in the Designer panel where you want to add the scenario.

   The Add Activity search bar appears with a list of relevant activities and common scenarios at the top.

2. Click the common scenario you want to add.

   The activities in the scenario are added to the Designer panel.

3. If needed, configure the added activities.









The following tables describe the common scenarios available in StudioX and any configuration they may require. The common scenarios are listed based on the activity where you can add them.

Anywhere In the Automation

Common Scenario	What It Does	What You Need to Configure
Add date to folder file names	Prompts for the folder that contains the file names to update, adds a Write Cell activity that enters today's date in a cell in the Project Notebook, and a For Each File in Folder activity that iterates through the selected folder. Inside For Each File in Folder, another Write Cell activity copies the name of the current file in the iteration to the Project Notebook, and a Move File activity adds the current date to the name using a formula in the Project Notebook.
Delete folder and subfolders	Prompts for the folder to delete and adds a Delete Folder activity configured to delete even if the folder contains files or subfolders.

Use Excel File

If not added inside a Use Excel File activity, the following common scenarios can be used with the Project Notebook.

Common Scenario	What It Does	What You Need to Configure
Merge ranges	Adds an Append Range activity that copies all the values in a range and appends them to another range, and a Delete Rows activity that removes all duplicate rows from the destination after the data is appended.	In Append Range, select the source and destination ranges. In Delete Rows, select the destination range.
Repeat actions for rows in Excel range	Adds a For Each Excel Row activity.	Select the range to use. Add the activities to repeat inside For Each Excel Row.

Use Application/Browser

Common Scenario	What It Does	What You Need to Configure
Fill form from Excel	Adds a For Each Excel Row activity that contains three Type Into activities configured to copy the data from the first, second, and third columns in the selected range, and pastes it into three indicated fields in the target application or web page. By default, the range A1:C3 from the Scratchpad sheet of the Project Notebook is used.	Make sure the range from the Scratchpad sheet of the Project Notebook contains the data to enter in the form (by default A1:C3). You can add another file in a parent Use Excel File activity and/or select another range for For Each Excel Row. Indicate the target element for each Type Into activity. Add or remove Type Into activities depending on the number of fields on the form.

Use Desktop Outlook App

Common Scenario	What It Does	What You Need to Configure
Repeat actions for emails	Adds a For Each Email activity.	Select the folder or messages to use. Add the activities to repeat inside For Each Email.
Send email	Adds a Send Email activity.	Configure the Send Email activity.
Download email attachments	Prompts for a folder where to save the attachments, adds a Save Email Attachments activity, then a For Each File in Folder containing a Write Line activity configured to display the file names in the Output panel.
Email folder backup	Prompts for a folder on the computer where to save emails, adds a For Each Email with a Save Email activity inside it.	Select the folder to back up from For Each Email. The Inbox is selected by default.
Create contacts details database	Adds a For Each Email activity configured to use the emails from the Inbox, Write Cell and Append Range activities inside For Each Email to copy the senders from each email to a new Contacts sheet in the Project Notebook, and a Delete Rows activity to remove duplicates.
Copy email details to Excel	Adds a series of Write Cell activities that add the email fields as column headers in a new sheet named Emails in the Project Notebook. Then adds a For Each Email activity that contains a series of Write Cell activities that copy the fields of each email to the Scratchpad sheet, and an Append Range activity to copy all the fields to the Emails sheet.	In For Each Email, select the folder from which to get the emails. The Inbox is selected by default.
Email all files in a folder	Prompts for a folder to select and adds a Send Email activity configured to use the files in the selected folder as attachments. The current Outlook account is added by default to the To field.	Edit the default values added to the fields of the activity to customize the email, for example add one or more recipients, or edit the Subject and Body.

For Each Email

Common Scenario	What It Does	What You Need to Configure
Reply to email	Adds a Reply to Email activity to reply to the current mail in the iteration, a Mark Email as Read/Unread activity, and a Move Email activity to move the email to another folder.	In Reply to Email, edit the email body. In Move Email, select a folder where to move the email.
Forward email	Adds a Forward Email activity to forward the current mail in the iteration, a Mark Email as Read/Unread activity, and a Move Email activity to move the email to another folder.	Configure the Forward Email activity. In Move Email, select a folder where to move the email.
Move email	Adds a Move Email activity to move the current email in the iteration to another folder.	In Move Email, select a folder where to move the email.
Save and process email attachments	Prompts for a folder where to save the attachments, adds a Save Email Attachments activity and a For Each File in Folder activity where to add activities to repeat for each attachment.	Add activities to repeat for each attachment inside For Each File in Folder.

For Each File in Folder

Common Scenario	What It Does	What You Need to Configure
Try open file as Excel	Adds an If activity that checks if the current file in the iteration has the .xlsx extension. The Then branch contains a Use Excel File activity that adds the current file to the project if the condition is met.
Add date to file and move to subfolder	Adds a Create Folder activity that creates a subfolder named Processed in the current folder, a Write Cell activity to copy the name of the current file in the iteration to the Project Notebook, and a Move File activity that moves the current file to the subfolder and adds the current date to the name using a formula in the Project Notebook.
Group files by type	Adds a Write Cell activity to copy the name of the current file in the iteration to the Project Notebook, a Create Folder activity that creates a subfolder in the current folder named with the extension of the current file using a formula in the Project Notebook, and a Move File activity that moves the current file to the subfolder.
Group files by size	Adds an If activity that checks if the current file in the iteration is smaller than 100KB. The Then branch contains a Create Folder activity that creates a new folder with the title set to 100 K and a Move File activity that moves the current file in the iteration to the newly created folder. The Else branch contains an If activity that checks if the current file is smaller than 1000KB. Both the Then and Else branches contain a Create Folder and Move File activity.
Group files by creation date	Adds a Write Cell activity to copy the creation date of the current file in the iteration to the Project Notebook, a Create Folder activity that creates a subfolder in the current folder named with the creation date of the current file using a formula in the Project Notebook, and a Move File activity that moves the current file to the subfolder.
Copy file info to Excel	Adds a series of Write Cell activities that copy the name, full path, size, and creation date of the current file in the iteration to the Scratchpad sheet and an Append Range activity to copy all the fields to the Files sheet.

Tips and Tricks

General

• You can open Excel, Word, and PowerPoint files added to your automation directly from the Data Manager panel. Right-click any Excel or Word resource and select Open. You can also select Open file location to open the folder containing the file.









• If you're not sure which activity can help you automate a specific action, search through activities using either the search bar at the top of the Activities panel, or the one displayed at the top of the screen after you click Add activity in the Designer panel. Searching returns results from activity names as well as descriptions, so it can be a good way to find activities you may not have discovered yet.








• When you need help with an activity you added to your project, right-click it and then select Help, or select the activity and then press F1 on your keyboard to open its documentation page with information about how to configure it.
• If you want to save a few clicks when designing your automations, you can double-click most activity fields to open the option in the Plus menu most commonly used to configure that field. For example, double-clicking a field that accepts text input opens the Text Builder, doing the same for the Condition field in the If activity opens the Condition Builder.
• When you select Text from the Plus menu to add text to an activity field, you can compose text that combines multiple types of data using the Text Builder. In addition to typing text, you can select other types of data from the Plus menu in the upper-right corner the Text Builder. For example, you can add the contents of a cell in an Excel file, a field in an Outlook email, or one of the properties of a file on your computer that you saved for later in a previous activity.

UI Automation

• When configuring a Use Application/Browser activity to add a desktop application to the automation, if you want the automation to open a specific file, indicate the application, and then add the path to the file in the Application arguments field. For example, if you indicated Acrobat Reader as the application to automate and you want to work with the file form_template.pdf located in the C:\Work folder, enter C:\Work\form_template.pdf in the Application arguments field to open the file in Acrobat when the automation is executed.







• When indicating target elements of App/Web activities in web browsers, always add at least one anchor to make sure the element is correctly identified by the Robot. For more information about targets and anchors, see UI Automation.
• When configuring a Use Application/Browser activity to automate tasks you perform in a web browser, before you indicate the web browser, navigate to the web page where the automation performs the first action. Doing this automatically adds the URL of the page to the Browser URL field, so that you don't have to enter it manually.
• If you don't want to add too many Type Into activities to fill out a form with many fields, you can simplify your workflow by configuring one Type Into activity to enter text in multiple fields. After indicating the first field on the form and selecting the text to type into it, you can open the Text Builder of the Type this field, add the tab special key from the Plus menu inside the Text Builder, and then select the text for the following field. For example, provided that the tab key moves the cursor to the next field in the target application, configuring the Type this field like in the following image copies the text from three different cells and pastes it in three different fields.







• When two consecutive App/Web activities aren't timed correctly (for example, the first takes a long time to execute the action and the second one starts before the previous action is complete), configure the Delay before or Delay after properties from the activities' Properties panel to make sure the first activity completes before the second activity starts. These properties add a delay before or after an activity is executed, increasing the time between activities when needed.
• When the actions you want to perform in a desktop application or web browser depend on the state of the application, use a Check App State activity to determine which actions to perform based on the state. This activity verifies whether an element appears in or disappears from the user interface of the target application and enables you to add different activities to execute when the element is found and/or when it is not found. For example, you can check if you are already logged in to a web application by verifying if the Log in button is present, and only perform the actions required to log in when the button is found.

Excel

• The Excel files you add to automations are not always available at design time (for example, a file can be created by or downloaded during the automation). In this scenario, you can still take advantage of StudioX's deep integration with Excel to configure the activities that use the file by defining another file with the same format (same sheets, columns, tables, etc.) as a template file.

  Once defined, you can indicate data in Excel or select data from the template file directly from the Plus menu.

  For example, if you want to create an automation with a report you'll receive monthly, use an existing report with the same format as the template. To define a template, add the Use Excel File Excel File activity, enter the path to the file to automate, then select the Template file option and indicate the file to use.

• When you want to work with a .xls (Excel 97-2003) workbook, the data in the file cannot be accessed directly from the Plus menu. In this case, you can configure activities that use the file with the Indicate in Excel or Custom input options in the Plus menu. Alternatively, to be able to select data directly from the menu, create a .xlsx copy and add it as a template file.
• When you filter rows in a large sheet and iterate through them using an Excel For Each Row activity, instead of iterating through the original sheet after applying the filter, use a Copy Range activity to copy the filtered rows to a different sheet, and then iterate through the filtered range in the new sheet. This will result in better performance when the project is executed.

Desktop Outlook App

• You can add bodies formatted as HTML for emails sent using mail activities from the desktop Outlook app by selecting the Use Word Document option for the Body field. This enables you to select a Word document containing formatted text, images, or tables as the body of emails sent with the Send Email , Reply to Email, and Forward Email activities.









Running Projects

• If you want to use your computer during project execution without interference from the Robot, you can run your automations in picture-in-picture mode. This features enables you to execute the project in another session opened in a separate window, leaving you in full control of the keyboard, mouse, and screen. To run an automation in picture-in-picture, click the arrow next to Run in the StudioX ribbon, and then select Run in PiP.









• If you dismissed an error that occurred when executing a project before having a chance to read the error message, you can find the error message in the Output panel. To access the Output panel, click Output in the lower-left corner of the StudioX window.








• To avoid opening multiple instances of the same application, before running an automation, close all the applications and files that are used in it.
