The User Interface

UiPath Studio contains multiple panels for easier access to specific functionalities. They can be docked, act as floating windows, or the Auto-hide option can be enabled from the drop-down list.

Overview

No.

Name

Description

1

Ribbon Tabs

Access the three main areas of Studio:
Home - Go to the Studio Backstage View where you can open and create projects, configure Studio, and more.
Design - Build automations using the tools available in the Command Palette, and Studio panels.
Debug - Use a comprehensive set of tools to debug your workflows. For more information, see About Debugging.

2

Title Bar

Open the Command Palette.
Send Feedback.
Access Help resources.
Sign in to your account.

3

Designer Panel

Build your automation by managing the activities added to the current workflow file.

4

Command Palette

Search within your project using the available search bars:
Add activity
Universal search
Go to File
Jump to activity

5

Variables Panel

Manage variables.

6

Arguments Panel

Manage arguments.

7

Imports Panel

Manage imported namespaces.

8

Project Panel

View the contents of your current project, manage files, folders, and dependencies, and adjust project settings.

9

Activities Panel

View all available activities and add activities to your automation.

10

Snippets Panel

Use pre-built workflows and add your own reusable automations.

11

Properties Panel

View and configure the properties of a selected activity.

12

Outline Panel

View the hierarchy of the current workflow and all available nodes.

13

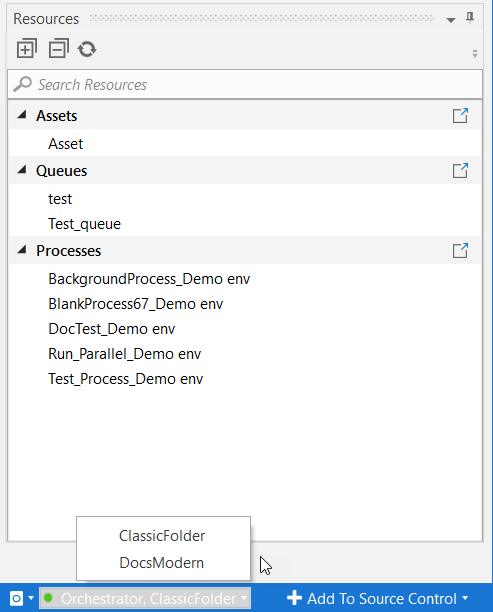

Resources Panel

Add resources such as assets, queues, processes, and entities from Orchestrator.

14

Object Repository Panel

Create and reuse UI taxonomies inside and across projects.

15

Output Panel

View the output of the Log message and Write Line activities, status information regarding the execution of your project, errors generated by activities packages, and more.

16

Error List Panel

View all the errors generated when running the Workflow Analyzer.

17

Find References Panel

View all the places where an element is referenced in your project.

18

Breakpoints Panel

Manage breakpoints added to the project.

19

Status Bar

View status information and manage the Orchestrator connection and source control integration.

The Ribbon

Ribbon Tabs

The ribbon is straightforward and can be minimized or expanded by clicking the Minimize / Expand button minimize_expandminimize_expand. It consists of the following three tabs:

  • Home - create and open projects, configure Studio, or access help and license information from the Studio Backstage View.
  • Design - add sequences, flowcharts and state machines to your project, install and manage activities packages, build interactions with UI elements, export workflows to Excel, and then publish your work to Orchestrator or custom feeds. Keep in mind that wizards and UI Explorer aren't visible in the Ribbon unless you install the UiPath.UIAutomation.Activities package.
  • Debug - debug your workflow, while using debugging tools to set breakpoints, monitor the execution of activities step by step, and adjust the debugging speed. Open logs to view details regarding execution and any changes made to the project. For more information on debugging, check the About Debugging page.

📘

Note:

Files that are not created during the execution of the automation project become read-only when published to Orchestrator. If your business process requires you to write in a specific file at some point, be sure to create it while designing the project.

The Title Bar

Send Feedback

There are two types of feedback that you can send directly from within Studio: Submit an idea for the product or Report a bug. Both are accessible from the ribbon by clicking the send_feedbacksend_feedback icon.

The Send Feedback feature must be used only for sending anonymous feedback to the product team. To contact our tech support team, please use the Contact Technical Support form.

Provide the following information, and then click Submit:

  • From the I want to drop-down menu, pick either Submit an idea for the product or Report a bug.
  • From the For drop-down menu, pick either UiPath Activities, UiPath Studio, UiPath Robot, UiPath Orchestrator or UiPath Assistant.
  • From the How important is this to you drop-down menu, pick Nice to have, Important, or Critical.
  • In the Subject field, add a short title.
  • Add a detailed description and attach up to 6 images, videos, or text files, each with a size smaller than 10MB. The threshold for sending feedback is 3 posts in a timeframe of 5 minutes.

Help

Click the Help icon to quickly access the resources that are also available in the Help tab in Backstage View, as illustrated below:

Sign in to Your Account

If you installed Studio using the UiPathStudio.msi installer with the Robot in user mode or you are using the Community Edition of Studio, you can connect Studio and the Assistant to Orchestrator by signing in to your UiPath account:

  1. Click sign_in_iconsign_in_icon on the upper-right side of the Studio window, and then click Sign in. To find out more information about signing in, click Learn more.
  1. A new page opens in your web browser. Complete the sign in procedure, and, when prompted by your web browser, click Open UiPath to return to Studio.

After you sign in, an icon with your initials is displayed on the upper-right side of the Studio window. To sign out and disconnect from Orchestrator from both Studio and the Assistant, click the icon, and then select Sign Out.

Connecting to Orchestrator with Your Machine Key

If you installed Studio using the UiPathStudio.msi installer with the Robot registered as a Windows service, you can only connect to Orchestrator with your machine key:

  1. Click sign_in_iconsign_in_icon, and then click Connect.
  2. Enter the Orchestrator URL and Machine Key, and then click Continue.
    • If you want to activate a local license key, click Use License Code.

Common Errors when Connecting to Orchestrator

The following table documents errors you may encounter when you try to connect to Orchestrator by signing in or using your machine key, along with causes and solutions.

Error

Cause

Solution

Interactive sign-in is not enabled for this tenant. Enable it from Orchestrator settings, or connect using the machine key

You are trying to sign in to your account but user authentication is not enabled from Orchestrator.

Do one of the following:

  • In Orchestrator, go to Tenant > Settings > Security, and then select Allow both user authentication and robot key authentication.
  • Click Use Machine Key to connect to Orchestrator using your machine key.

Unauthorized

No attended Robot is allocated to your user.

In Orchestrator, go to Tenant > Users and edit the current user. In the Attended Robot tab, select Automatically create an attended robot for this user and select a License Type.

The remote name could not be resolved: Orchestrator_URL

Connection to Orchestrator could not be established.

Make sure your Internet connection is working.

Backstage View

This is the view you see when you first open Studio. You can also get here by clicking Home in the upper-left corner of the window. Here you can create and open projects, configure Studio, or access help and license information.

The following buttons and tabs are available in this view:

  • Open - Browse to a local automation project and open it. By default, projects are created in C:\Users<current_user>\Documents\UiPath.
    :information-source: Note: Projects located on network folders where your user only has read permissions cannot be opened in Studio. We recommend using source control systems to collaborate on projects.
  • Close - Close the automation project that is currently open.
  • Start - Create a new automation project or open recently accessed projects. You can create a new project from predefined templates or open a project you recently worked on. Projects can be pinned or removed from the Open Recent list, while hovering over them displays the entire project Description.
  • Templates - Create a new project based on a template. In this tab, you can view all available project templates, search and filter them by source. For more information, see Project Templates.
  • Team - Manage source control integration for the automation project.
  • Tools - Install extensions for Chrome, Firefox, Edge, Java, Silverlight, Citrix, Windows Remote Desktop, VMware Horizon, launch the UI Explorer, Project Dependencies Mass Update Tool, and the Repair Tool for Microsoft Office Interop. For more information about extensions, see About Extensions.

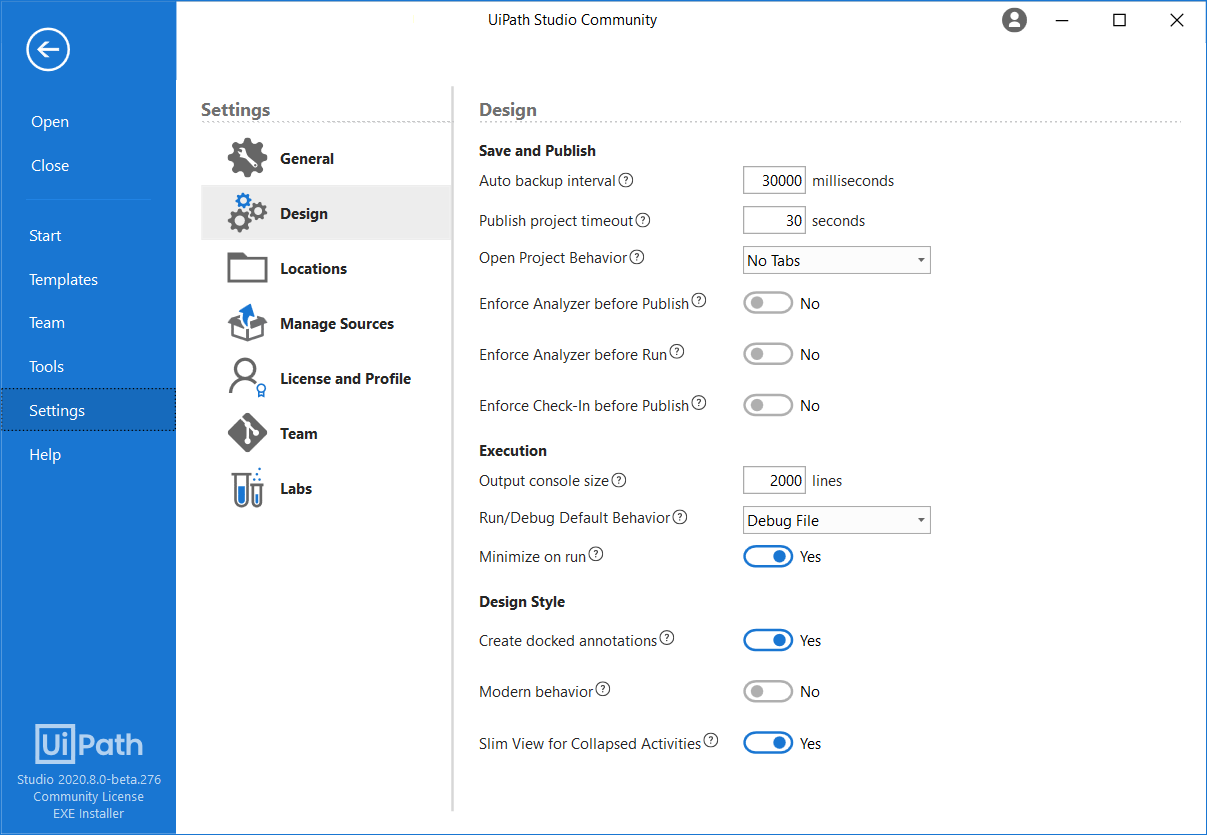

  • Settings - Change the look and feel of Studio, set global preferences, and manage activities package sources. For more information, see Configuring Studio Settings.
  • Help - Directs you to product documentation, release notes, online resources, the Community Forum and the RPA Academy.
    This is where you can also access a quick tutorial that helps you learn the basics of creating, publishing, and running an automation.
    :information-source: Note: To ensure the tutorial is completed successfully, we recommend that you pause the tutorial before making any changes to the workflow outside of those highlighted in the tutorial steps.
    Information regarding product version and installation, license availability, update channel and device ID is also found in the Help tab, together with a Copy Info button for quickly copying the details to the clipboard.

The Command Palette

The Command Palette is opened by using the Ctrl + Shift + P, F3 keyboard shortcuts, or by clicking the search button. It incorporates the Add activity, the Universal search, the Go to file, and Jump to activity search bars.

📘

Note:

Studio supports prioritizing activities by scope. Click the plus_iconplus_icon icon inside an activity scope and notice that the Command Palette offers suggestions of activities which fit the current scope. Support for this feature is rolling out in stages in official activities packages, check release notes periodically.

Add Activity

The Add activity search bar is opened using the Ctrl + Shift + T keyboard shortcut. You can search for activities in installed packages, and add them after the selected activity in the file. The bar automatically assigns keyboard shortcuts to the first five results, and remembers your previous findings.

Click the plus_iconplus_icon icon at the top or bottom of an activity from a sequence to open the Add activity search bar.

The Universal Search

The Universal search bar enables you to find snippets, activities, variables, arguments, imports, project dependencies, and files in your current project. Searches return results from all workflow files, including files that are closed.

Option

Shortcut

Description

Current File

Ctrl + 1

Lists results from the currently opened file that match the search query.

All Files

Ctrl + 2

Lists results found in all files part of the current project that match the search query.

Activities

Ctrl + 3

Lists results from activities that match the search query.

Variables

Ctrl + 4

Finds variables in the current project that match the search query.

Arguments

Ctrl + 5

Finds arguments defined in the project that match the search query.

Imports

Ctrl + 6

Finds imported namespaces in the project that match the search query.

Project Files

Ctrl + 7

Finds files part of the current project that match the search query.

Dependencies

Ctrl + 8

Lists results found in dependencies installed to the project.

Snippets

Ctrl + 9

Finds snippet files that match the search query.

Search results persist until the next time you open the search bar if you use Universal search or Add activity. For Go to file and Jump to activity the previous search query is not persisted.

Double-click an activity or press Enter to add it to the currently opened file. Using the same commands, you can open files from under the All Files or Project Files category, or focus on the desired search result.

Default values of arguments from a process inside the Invoke Workflow activity are not searchable with the Universal Search.

Go to File

The Go to file bar searches and opens files part of the current project folder. .xaml files are opened in the Designer panel in Studio, while other files, such as screenshots or Excel files, are opened with their respective default application on your machine. Double-click or press Enter to open a file.

📘

Note:

The Activities, Project panels, and the Command Palette support fuzzy search, which means that a list of results is returned even if the search terms don't match exactly. The search terms could be slightly incomplete, misspelled or include only the first letter of each word. For example, if you type dci in the Activities bar, it returns the Double Click Image activity.

Jump to Activity

The Jump to activity search bar part of Command Palette helps find and focus specific activities in large workflows. It is accessed by using the Ctrl + J keyboard shortcut, or by opening using the F3 or Ctrl + Shift + P shortcuts, and selecting Jump to activity.

When opened, the Jump to activity bar displays the list of all activities in the .xaml file currently focused in the Designer panel.

Type the display name or the namespace of an activity, for example Assign. Use the keyboard arrows to select the activity and press Enter to focus it in the Designer panel.

Activities in the Jump to activity bar are arranged in the following order: container, parent, and child activities.

The Panels

The Designer Panel

The Designer panel displays your current automation project, enables you to make changes to it, and provides quick access to variables, arguments and imports.

It is possible to navigate within a diagram by double-clicking the activity you want to view. The path is displayed as breadcrumbs in the header of the Designer panel. Please note that when using multiple displays scaled differently the text in the input field part of some activities might be improperly shown.

Activities can be copied using Ctrl + C shortcut or the context menu, to a text editor, receive changes, and then copied back to the Designer panel.

Activate Pan Mode by clicking the pan_modepan_mode icon, holding the Space key or pressing the middle mouse button. Use the zoom drop-down to change the zoom level and click the reset_zoomreset_zoom icon to reset it back to 100%.

The Fit to Screen fit_screenfit_screen icon changes the zoom in such a way that the whole workflow fits in the Designer panel. Click the overviewoverview icon to get an overview of the whole project and navigate through sections by adjusting the focus.

The Context Menu

The context menu enables you to perform several operations on your workflow, be it a sequence or a flowchart. You can display it by right-clicking an activity inside your workflow.

📘

Note

If you select more activities, the menu is not displayed at all.

Field Descriptions for the Context Menu

Option

Description

View Parent

Displays the parent of the target activity in the Designer panel.
Note: This option is only displayed for child-activities, if they are opened in the Designer panel.

Open

Opens the selected activity in the Designer panel. Has the same result as double-click.

Collapse

Collapses the activity thus reducing the displayed details to "Double-click to view". You can achieve the same result by clicking the Collapse button **Collapse****Collapse**.
Note: Only displayed for sequences.

Expand in Place

Expands the content of the activity, displaying its detailed content. You can achieve the same result by clicking the Expand button **Expand****Expand**.
Note: Only displayed for sequences.

Cut

Removes the selected activity and places it onto the Clipboard.

Copy

Copies the selected activity and places it onto the Clipboard. Activities from read-only files can be copied to another workflow or a .txt file. When copying multiple activities to clipboard, their order is reversed.

Paste

Inserts the content of the Clipboard at the current location.

Delete

Deletes the target activity.

Note: Since the Context menu is only displayed for a one-activity selection, you can use this command for more activities with the corresponding keyboard shortcut, Delete.

us

Add, edit, delete, show and hide annotations added to activities in the workflow.

Copy as Image

Makes a screenshot of the content displayed in the Designer panel.

Note: If you want to make a screenshot of a child activity, make sure to firstly open it in the Designer panel.

Save as Image

Makes a screenshot of the content displayed in the Designer panel and prompts the user to set the details for saving it (Name, Type, Destination). Supported formats: JPG, PNG, GIF, XPS.

Create Variable

Creates a variable in the Variable panel.

Auto Arrange

Automatically arranges activities in a flowchart.

Remove Surrounding Sequence

Removes the selected Sequence activity from the Designer panel. The activities that it contains are moved to the parent sequence.

Surround with Try Catch (Ctrl + T)

Inserts the activity in a Try Catch statement.

Note: A Try Catch statement is used for handling exceptions caused by data or coding errors. The Try clause encloses the activity to be checked for exceptions. The Catches clause is the exception handler. The Finally clause is used for executing an activity regardless of the status of the first two clauses.

Extract as Workflow

Creates a new workflow containing the targeted activity with the purpose of breaking down a large project into smaller ones. In the place of the extracted activity an Invoke <new> workflow activity is created which enables you to edit and import arguments from the newly created workflow. The arguments are created automatically from the variables used in that activity. The Invoke <new> workflow activity automatically maps the local variables to invoke arguments for the extracted workflow.

Open Workflow

Opens a workflow created using the above option.

Enable Activity

Enables a previously disabled activity.

Disable Activity

Disables an activity, which is then placed inside a Comment out activity.

Toggle Breakpoint

Marks the selected activity as a breakpoint for debugging. Breakpoints can also be toggled by clicking the Breakpoint button in the Execute tab. You can trigger a breakpoint for one activity at a time.

Edit Breakpoint Settings

Opens the Breakpoint Settings window.

Run to this Activity

Debugs the project and stops before this particular activity is executed.

Run from this Activity

Starts debugging from this activity.

Show All Conditions

Displays all conditions defined in your project (Properties panel > Conditions).

Note: This option is only displayed for flowcharts when you right-click an empty space inside the project; it is not displayed if you right-click an activity in your flowchart.

Hide All Conditions

Hides all displayed conditions.

Note: This option is only displayed for flowcharts when you right-click an empty space inside the project; it is not displayed if you right-click an activity in your flowchart.

Set as Start Node

Connects the selected activity with the Start node.
Note: Only displayed for flowcharts.

Set as Initial State

Connects the State Machine specific activity to with the Start node.
Note: Only displayed for state machines.

The context menu is also displayed for tabs in the Designer panel. The following options are available:

Option

Description

Close

Closes the active tab.

Close Others

Closes all tabs but the active one.

Close All Documents

Closes all tabs.

Float

Undocks the target tab and changes it to a floating state.

Pin Tab

Pins the target tab in the Designer panel.
Note: The tab pinned last is always moved in front of all other existing tabs (pinned or not). The position of a pinned tab can only be changed relative to other pinned tabs.

New Horizontal Tab Group

Splits the screen horizontally, enabling you to see two or more instances of the Designer panel within the same screen. The target project is moved onto the panel on the right.
Note: Only displayed when your project contains two or more tabs and, implicitly, workflows.

New Vertical Tab Group

Splits the screen vertically, enabling you to see two or more instances of the Designer panel within the same screen. The target project is moved onto the panel at the bottom.
Note: Only displayed when your project contains two or more tabs and, implicitly, workflows.

Move to Previous Tab Group

Moves the target tab onto the previous Designer panel displayed.
Note: Only displayed if you had used the New Vertical Tab Group or New Horizontal Tab Group options before.

Move to Next Tab Group

Moves the target tab onto the next Designer panel displayed.
Note: Only displayed if you had used the New Vertical Tab Group or New Horizontal Tab Group options before.

The Activities Panel

The Activities panel shows available activities that can be added to the current workflow. You can search for activities by name and description using the search box at the top of the panel, navigate through them using navigation keys, and press Enter to add the selected activity to the currently opened file.

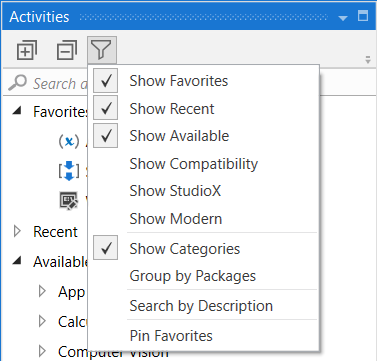

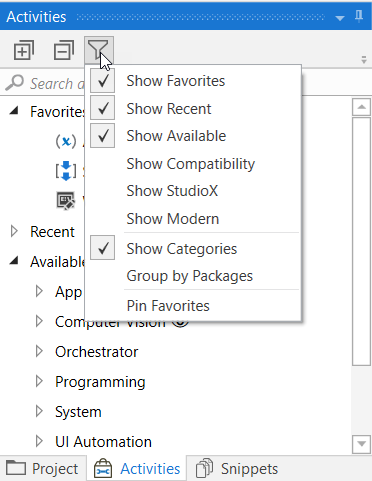

The Show Activities button opens a list with options for showing favorite, recently used, available and compatible activities. The Pin Favorites option enables you to keep favorite activities always visible in the panel.

To group activities by packages they belong to click the View Options button and select Group by Packages. They are now grouped in the Activities panel.

Hovering over an activity in the panel displays the package it belongs to and its description.

Right-click an activity in the panel and select Create Test Bench to test out one or more activities before adding them to a project. Read more about this here.

📘

Note:

The search box can be used for finding activities by their class name, regardless of the interface language set in Studio.

The Snippets Panel

The Snippets panel enables you to easily reuse automations. It includes, by default, multiple samples and snippets.

You can add your own by clicking the Add Folder button and selecting a directory from your hard drive. Empty folders are not displayed.

To remove a folder, right-click it and select Remove.

The Properties Panel

The Properties panel is contextual and enables you to view and change the properties of a selected activity. When selecting two activities in the same workflow, common properties can be modified from the Properties panel.

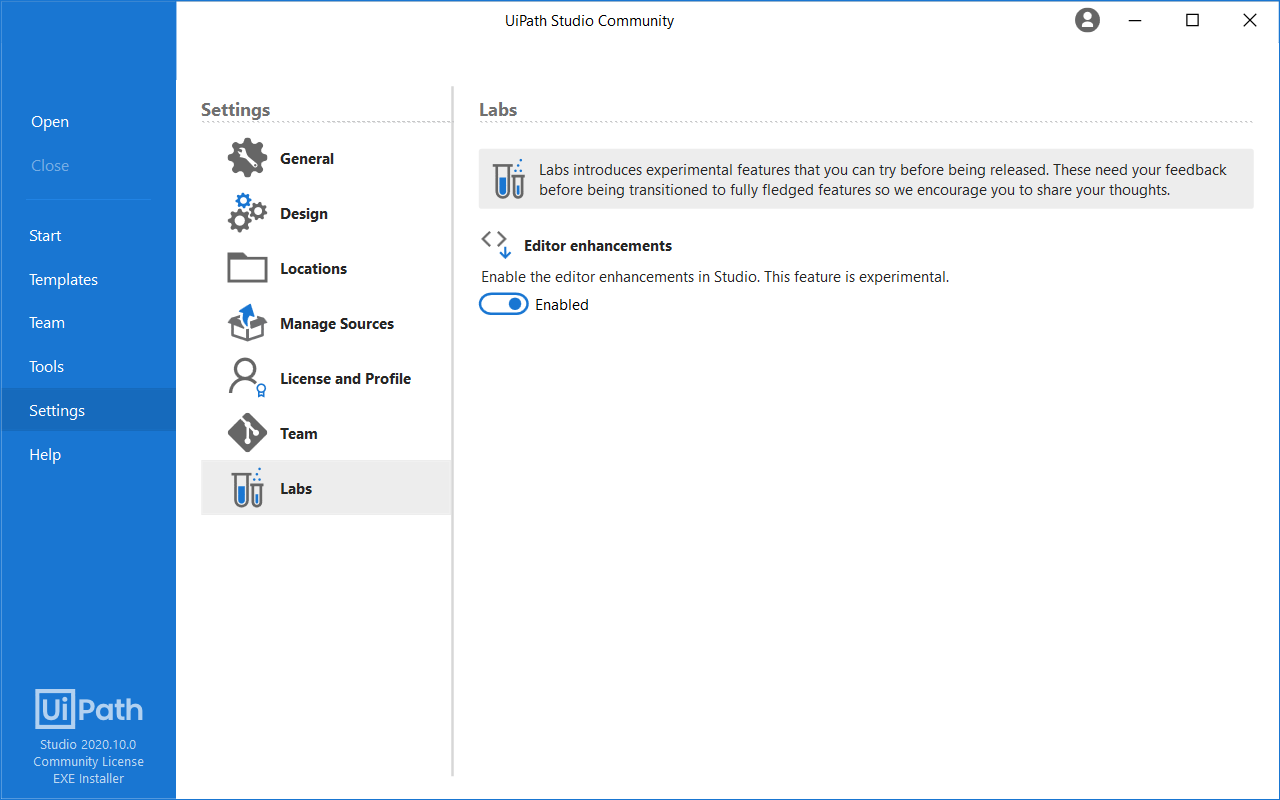

The Expression Editor

The Expression Editor is accessible with the Ctrl + Shift + E keyboard shortcut when used inside activity input fields. It is also available from the Properties panel, from fields that require inputting text, and from the body of an activity, by adding text directly in the required fields.

Expressions can be written on multiples lines. Keyboard shortcuts for creating variables and arguments directly in expressions are available.

Use Ctrl + F inside the editor to open the search and replace capabilities. Select part of an expression and press Ctrl + F3 to add the text to the search field. Hold the Ctrl key to make the search pane semi-transparent and see the text behind it.

The Outline Panel

The Outline panel displays the project hierarchy, and all available nodes. You can highlight activities in this panel by selecting them in the Designer panel, or you can go to a specific activity by selecting it in the Outline panel.

The Output Panel

The Output panel enables you to display the output of the Log Message or Write Line activities, among other things. Exceptions for packages are also displayed in this panel.

From the Output panel, you can show or hide messages that have different log levels (errors, warnings) by clicking the buttons in the panel’s header. Double-clicking a message displays further details about it, with the option to copy information.

When searching for a log in the Output panel and selecting an item from the search results list, the log is highlighted.

The Export Logs button is used for exporting logs into a .txt file. It exports timestamps and error message details as well. Exporting filtered logs is available. For example, if you want to export only trace level logs, filter the list and then use the Export Logs button.

When debugging, the Output panel shows logs for when an activity starts executing and until it ends. This can be enabled from the Log Activities option in the Debug tab.

The Error List panel displays errors found in the file or project during the validation process, together with errors generated by About Workflow Analyzer rules.

The Clear All button erases all info displayed in the Output panel. Logs and other data stored in this panel are erased when a workflow is run. The Output panel displays up to 2,000 lines at a time.

The Find References Panel

The Find References panel displays results for references you search for in your project. To find every place in the project where an element is referenced, right-click it and select Find References. This works for the following:

  • Files in the Project panel
  • Activities in the Activities panel
  • Variables in the Variables panel
  • Arguments in the Arguments panel
  • Descriptors in the Object Repository panel

The Resources Panel

The Resources panel in Studio can load assets, queues, processes, and entities, provided that the Robot is connected to Orchestrator. Read the Connecting Robots to Orchestrator page to find the steps.

If the Robot connected to Orchestrator is of type Standard, then the Resources panel can display only the Classic folder which has this Robot provisioned.

If the Robot is of type Floating, then the panel displays all Classic and Modern folders that this Robot has access to. Read more about creating Robots in Orchestrator here.

The panel displays assets, queues, and processes found in Classic or Modern Folders in Orchestrator. Read more about Folders.

📘

Note:

When using a classic, manually provisioned robot, it must be granted View permissions for the corresponding resources (i.e. Assets, Queues, and Processes) to appear in the panel. Read more about setting up Roles and permissions in Orchestrator.

To load resources into the panel, click the Refresh button at the top of the panel. Right-click any item in the Resources panel to copy its name and use it in activities that interact with such resources.

Hover over the folder name in the status bar to see the Orchestrator URL, and click the folder name in the status bar to switch to another folder.

📘

Note:

Logs generated from processes located in subfolders are visible in Orchestrator only if the subfolder is selected in the Resources panel.

Drag and drop assets, queues, or processes from the Resources panel directly to your automation project. Upon doing so, suitable activities are suggested in the Add activity search bar. For example, after dragging a queue in your project, pick the Add Queue Item activity from the Add activity search bar and notice that the queue was automatically assigned to the activity's Queue Name property.

The Status Bar

In the status bar, you can view status information and access options related to Orchestrator and source control. This is where you can also view which language is used for expressions in the project (VB or C#).

  • Cloud Options - Click Cloud Options cloud optionscloud options to access Orchestrator options: sign in to your cloud account, connect to or disconnect from Orchestrator, and refresh resources.
  • Orchestrator Status - Displays the Orchestrator connection status. When connected to Orchestrator, the currently selected folder is displayed. You can click the status to view a list of available folders and select a different folder from which to sync resources.
  • Source Control - Depending on whether the project is connected to a source control repository, different options are available to help you manage source control integration. For more information, see About Version Control.

Updated about a month ago



The User Interface


Suggested Edits are limited on API Reference Pages

You can only suggest edits to Markdown body content, but not to the API spec.
