Settings

Selecting the Settings tab on the Home page will display three tabs as follows:

• General
• Capturing
• Branding

General

The General tab contains three sections:

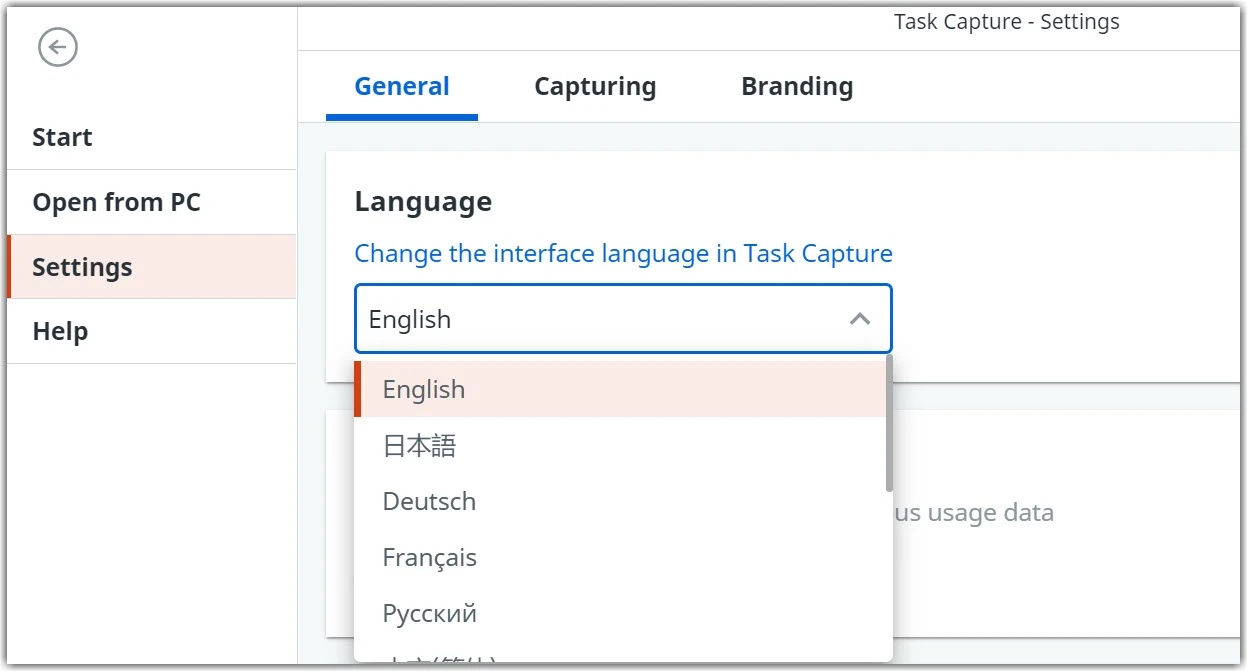

• Language - a dropdown pop up will allow you to change the interface language in Task Capture.

  After updating the language, be aware of the following changes:

  • All the options and actions available on the tool are displayed in the chosen language.
  • New diagram actions are displayed in the newly updated language.

  • If new Sequences are added, these, along with the actions describing them, are displayed in the newly updated language.

    Note: If during the creation/capturing process, you update the language, only the actions recorded after the new language is setup the will be displayed in the respective language.








• Theme - Interface theme can be changed between Light and Dark for a more comfortable experience.









• Text size - a dropdown pop-up will allow you to change the interface text size in Task Capture.









• Opting out of telemetry - a control that can be toggled on/off for anonymous telemetry gathering.









• Licensing - allows you to modify the current license.









Capturing

• Capturing hotkeys - provides the ability to set up hotkeys that can be used to pause/resume or stop actions during the capture process.

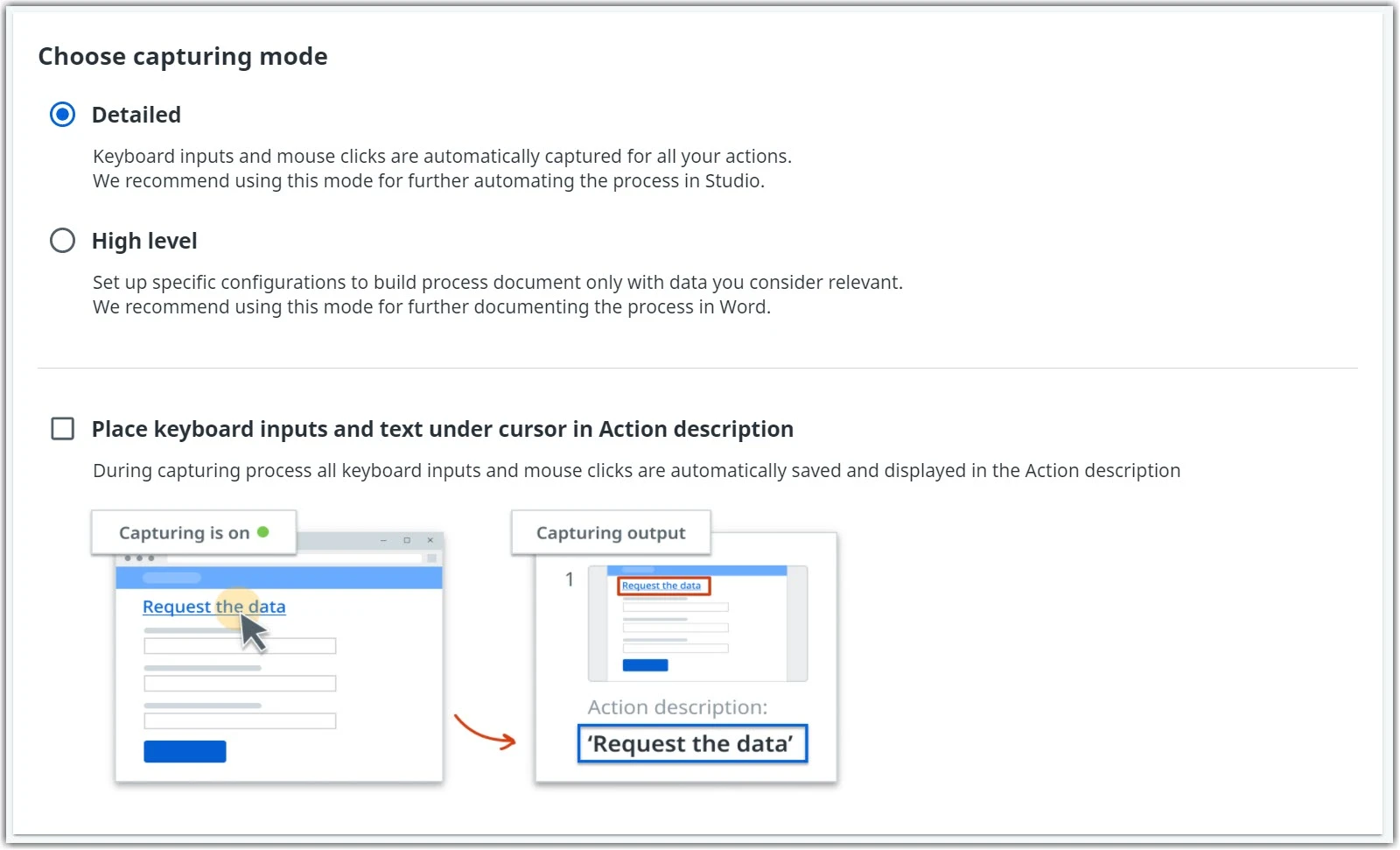

• Capturing mode - provides the ability to choose between two capturing modes: Detailed and High level.

  When choosing the capturing mode, you can also choose if the inputs and mouse clicks are automatically saved and displayed in the action description.








  Note: To find out more about capturing modes and hotkeys, see Capturing settings.

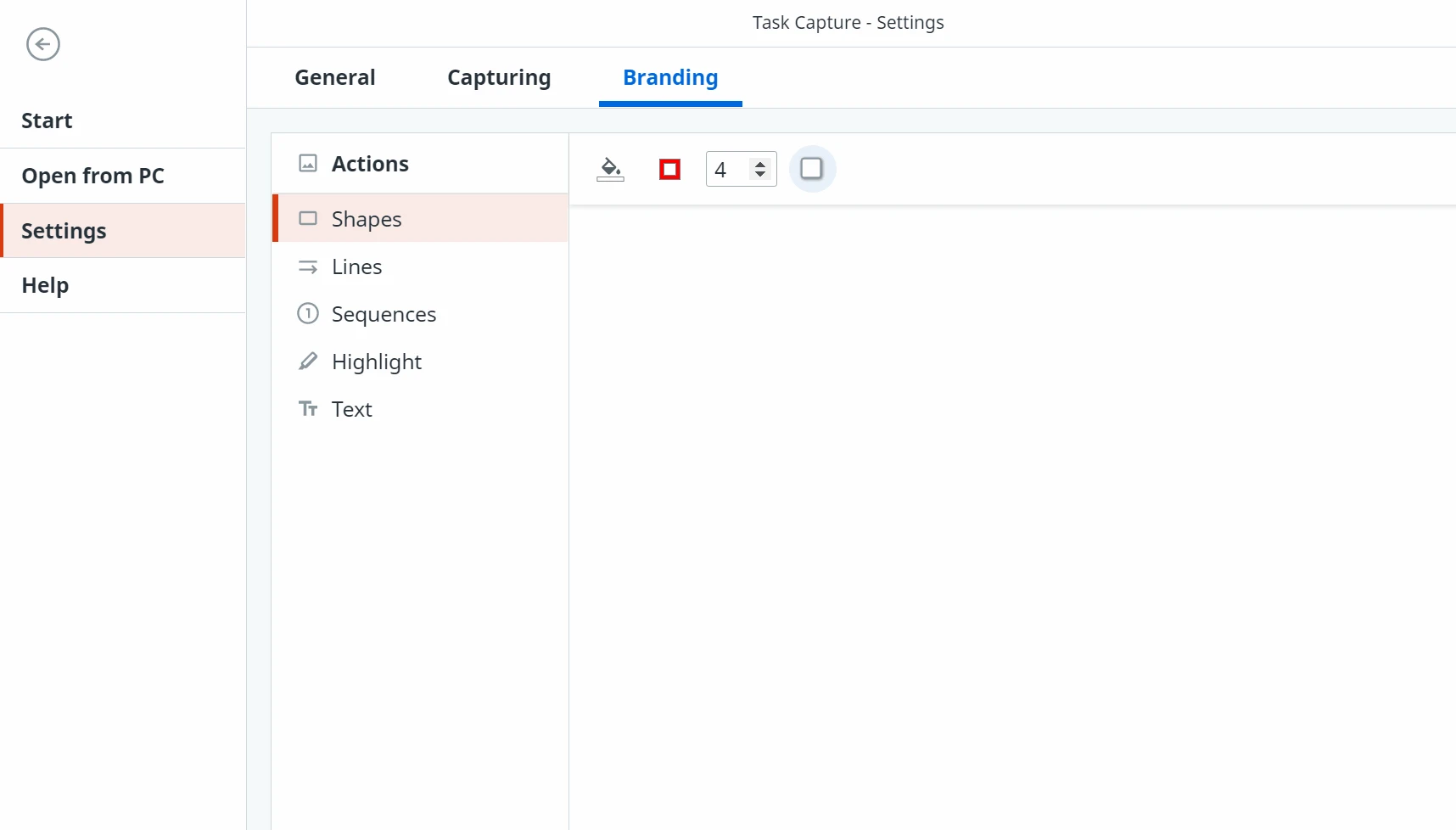

Branding

Here you can set the rules for the annotations in the Image Editor.

• Shapes

  1. Fill Сolor – choose the background color.
  2. Outline Сolor - choose the color of the frame of a Rectangle/Rounded Rectangle/Ellipse.
  3. Outline Width – choose the width of the frame of a Rectangle/Rounded Rectangle/Ellipse.
  4. Shadow – add/remove shadows.

• Lines

  1. Outline Сolor - choose the color of the frame of a Rectangle/Rounded Rectangle/Ellipse.
  2. Outline Width – choose the width of the frame of a Rectangle/Rounded Rectangle/Ellipse.
  3. Shadow – add/remove shadows.

• Sequences

  1. Fill Сolor– choose the background color.
  2. Outline Сolor - choose the color of the frame of a Rectangle/Rounded Rectangle/Ellipse.
  3. Outline Width – choose the width of the frame of a Rectangle/Rounded Rectangle/Ellipse.
  4. Shadow– add/remove shadows.

• Highlight

  1. Fill Сolor – choose the background color.

• Text

  1. Font Name
  2. Font-size
  3. Bold
  4. Italic
  5. Underline
  6. Font Color
  7. Fill Сolor – choose the background color.
  8. Outline Сolor - choose the color of the frame of a Rectangle/Rounded Rectangle/Ellipse.
  9. Outline Width – choose the width of the frame of a Rectangle/Rounded Rectangle/Ellipse

  10. Shadow – add/remove shadows.
