Run the flow

Run the deployed Price Watch Flow in Orchestrator, review the job trace, and clean up the resources created in this tutorial.

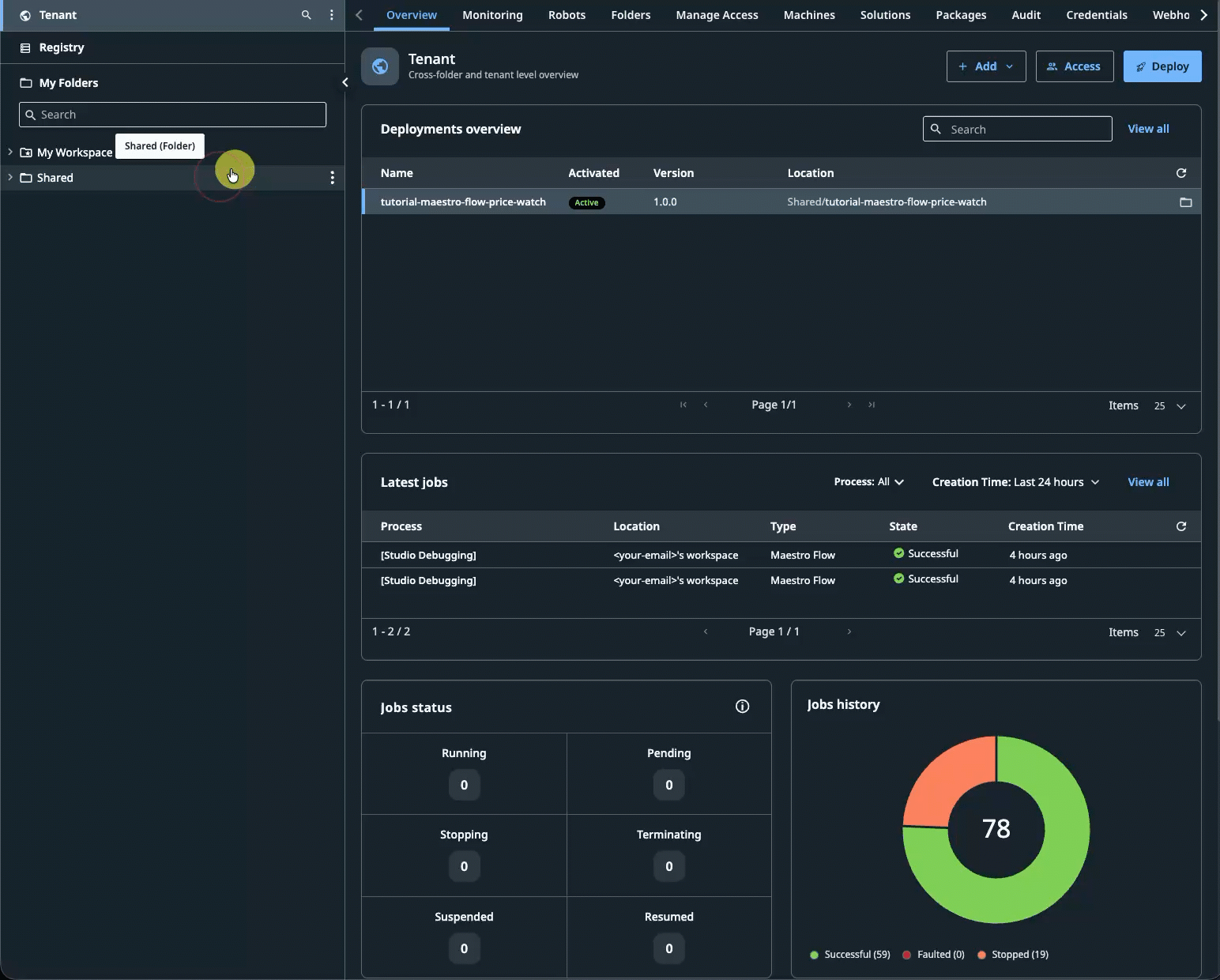

Step 6 - Running the Flow with Orchestrator

Follow these steps to start an instance of the deployed Flow as a job, watch it complete, and then verify the output:

  1. Use the Start job button for our tutorial-maestro-flow-price-watch deployment.

  2. Use Start button to start the job - the input values will already be set to the default values of USD, EUR, and 0.9.

  3. Verify the output values for watchResult when "✅ Successful" shows the job has completed.

  4. Open the Trace tab to view each of the steps and the time each step took to execute.

Congratulations! You've completed your first Maestro Flow by building, testing, deploying, and then running it! Before you close this page, make sure to follow the last step to clean up the resources we deployed in this tutorial.


Step 7 - Cleaning up the resources

The resources that we created for the tutorial-maestro-flow-price-watch deployment that need to be cleaned up are:

  • The Automations Process the deployment created
  • The deployment
  • The published package
  • The two folders under Shared (one for the deployed version, the second created when executing the Flow with Debug)

A deployment into a Shared folder is fully managed from the CLI, and we use CLI commands from the terminal in VS Code to clean up items 1, 3, and 4. To remove the deployment (item 2), we will use Orchestrator in your UiPath Cloud account. To remove all the resources, follow the following steps:

  1. Run the command below to uninstall the deployment - this deactivates the deployment, and removes the Automation Process and the folder it was deployed to.

    uip solution deploy uninstall tutorial-maestro-flow-price-watch --yes
    uip solution deploy uninstall tutorial-maestro-flow-price-watch --yes


    The result should be similar to:

    {
        "Result": "Success",
        "Code": "SolutionDeployUninstall",
        "Data": {
            "Status": "SuccessfulUninstall",
            "DeploymentName": "tutorial-maestro-flow-price-watch",
            "InstanceId": "abcdef12-3456-7890-abcd-ef1234567890_v7"
        }
    }
    {
        "Result": "Success",
        "Code": "SolutionDeployUninstall",
        "Data": {
            "Status": "SuccessfulUninstall",
            "DeploymentName": "tutorial-maestro-flow-price-watch",
            "InstanceId": "abcdef12-3456-7890-abcd-ef1234567890_v7"
        }
    }

  2. Run the command below to delete the published package:

    uip solution packages delete tutorial-maestro-flow-price-watch 1.0.0 --yes
    uip solution packages delete tutorial-maestro-flow-price-watch 1.0.0 --yes


    The result should be similar to:

    {
        "Result": "Success",
        "Code": "SolutionPackagesDelete",
        "Data": {
            "PackageName": "tutorial-maestro-flow-price-watch",
            "PackageVersion": "1.0.0"
        }
    }
    {
        "Result": "Success",
        "Code": "SolutionPackagesDelete",
        "Data": {
            "PackageName": "tutorial-maestro-flow-price-watch",
            "PackageVersion": "1.0.0"
        }
    }

  3. Retrieve the Key of the folder you deployed to with:

    uip or folders list --limit 200 --output-filter "[?contains(Path, 'Debug_tutorial-maestro-flow-price-watch')]"
    uip or folders list --limit 200 --output-filter "[?contains(Path, 'Debug_tutorial-maestro-flow-price-watch')]"


    The result should be similar to:

    {
      "Result": "Success",
      "Code": "FolderList",
      "Pagination": {
        "Returned": 3,
        "Limit": 200,
        "Offset": 0,
        "HasMore": false
      },
      "Data": [
        {
          "Key": "aaaaaaaa-bbbb-cccc-dddd-1234567890ab",
          "Name": "Debug_tutorial-maestro-flow-price-watch",
          "Path": "Shared/Debug_tutorial-maestro-flow-price-watch",
          "Description": "",
          "Type": "DebugSolution",
          "ParentKey": "11111111-2222-3333-4444-abcdef123457"
        }
      ]
    }
    {
      "Result": "Success",
      "Code": "FolderList",
      "Pagination": {
        "Returned": 3,
        "Limit": 200,
        "Offset": 0,
        "HasMore": false
      },
      "Data": [
        {
          "Key": "aaaaaaaa-bbbb-cccc-dddd-1234567890ab",
          "Name": "Debug_tutorial-maestro-flow-price-watch",
          "Path": "Shared/Debug_tutorial-maestro-flow-price-watch",
          "Description": "",
          "Type": "DebugSolution",
          "ParentKey": "11111111-2222-3333-4444-abcdef123457"
        }
      ]
    }

  4. Delete the folder using the value from the Key field above (replace aaaaaaaa-bbbb-cccc-dddd-1234567890ab with your value).

    uip or folders delete aaaaaaaa-bbbb-cccc-dddd-1234567890ab --yes
    uip or folders delete aaaaaaaa-bbbb-cccc-dddd-1234567890ab --yes


    The response should look similar to:

    {
      "Result": "Success",
      "Code": "FolderDelete",
      "Data": {
        "Key": "aaaaaaaa-bbbb-cccc-dddd-1234567890ab",
        "Path": "<your email>'s workspace/Debug_tutorial-maestro-flow-price-watch",
        "Status": "Deleted successfully"
      }
    }
    {
      "Result": "Success",
      "Code": "FolderDelete",
      "Data": {
        "Key": "aaaaaaaa-bbbb-cccc-dddd-1234567890ab",
        "Path": "<your email>'s workspace/Debug_tutorial-maestro-flow-price-watch",
        "Status": "Deleted successfully"
      }
    }

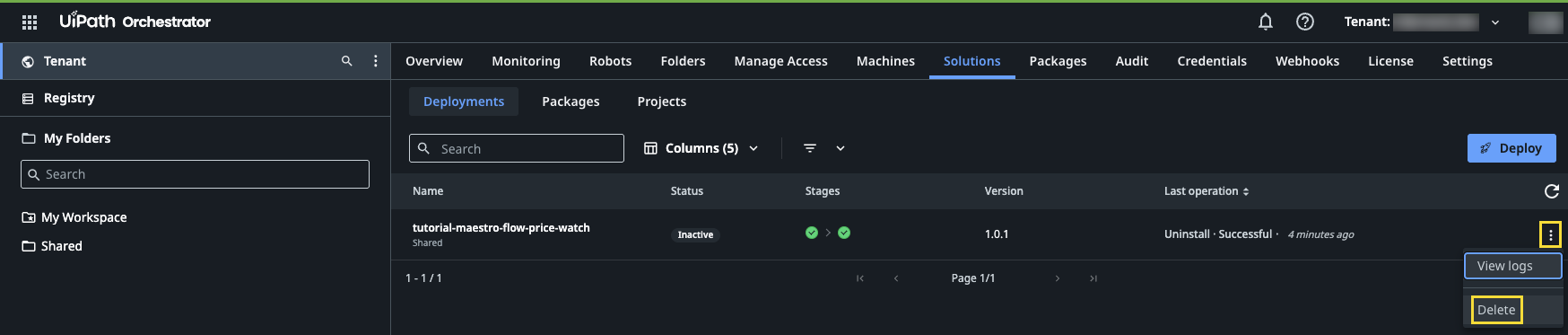

  5. In your UiPath Cloud tenant, navigate to Orchestrator, select the Solutions tab.

  6. Open the context menu for the inactive tutorial-maestro-flow-price-watch deployment and use the Delete option to delete it.

Congratulations! You've now completed this tutorial, and cleaned up all the resources created as part of it. Below are links to additional tutorials and content for you to continue building on UiPath.
