Upload Part

UiPath.Box.Activities.File.ChunkedUpload.UploadPart

The Upload Part activity uses the Box UploadPartofFile API to update a chunk (Part Index) of an upload session (Upload Session) for a file.

After updating the session, the activity outputs a BoxSessionPartInfo object (PartInfo) that includes the properties of the update.

How it works

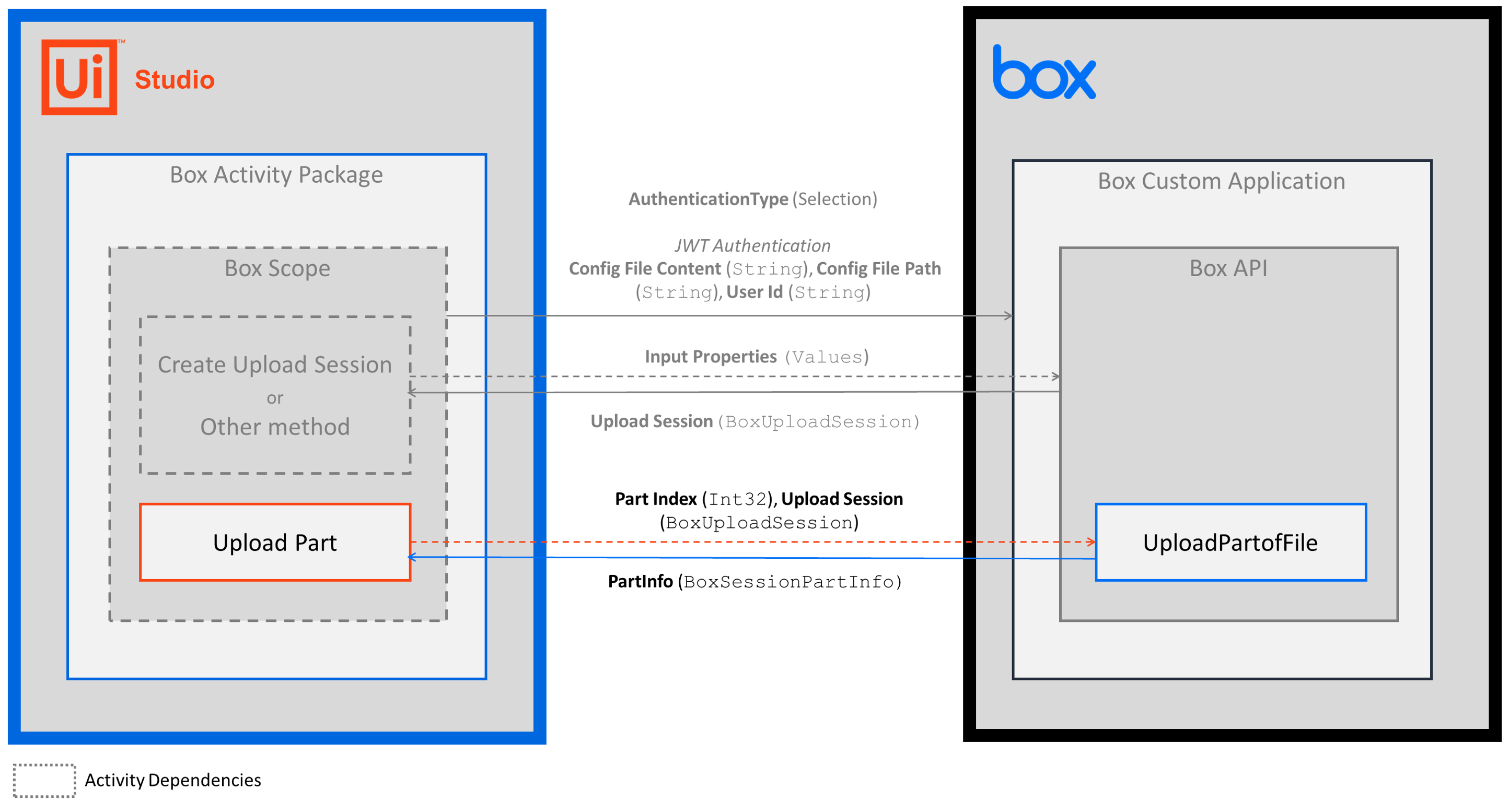

The following steps and message sequence diagram is an example of how the activity works from design time (i.e., the activity dependencies and input/output properties) to run time.

  1. Complete the Setup steps.
  2. Add the Box Scope activity to your project.
  3. Add an activity or run an external process that outputs a BoxUploadSession value (e.g., Create Upload Session).
  4. Add the Upload Part activity inside the Box Scope activity.
  5. Enter values for the Input property.
  6. Create and enter a BoxSessionPartInfo variable for the Output property.
    • Your input property values are sent in the UploadPartofFile API operation request.
    • The operation returns the BoxSessionPartInfo value to your output property variable.

属性

Common

  • ContinueOnError - Specifies if you want the activity to continue running when an error is thrown. This field supports only Boolean values.
  • DisplayName - The display name of the activity. This field supports only Strings or String variables.

Input

  • Part Index - The index of the file part starting from 0. Enter a BoxUploadSession. This field supports only Int32 variables.
  • Upload Session - The upload session object. Enter a BoxUploadSession. To get the BoxUploadSession value, add an activity or run an external process that outputs a BoxUloadSession object (e.g., Create Upload Session).

Misc

  • Private - If selected, the values of variables and arguments are no longer logged at Verbose level.

选项

  • File Path - The location of the file that you want to upload. This field supports only Strings or String variables. If left empty, the activity defaults to the file path that was used to create the upload session.

Output

  • PartInfo - The BoxSessionPartInfo object that includes the part properties. This field supports only BoxSessionPartInfo variables. The BoxSessionPartInfo object includes multiple properties that you can use in other activities.
