Robot User Guide
Last updated Jul 1, 2024

Azure Marketplace Deployment

Azure marketplace deployments allow you to deploy UiPath solutions directly from the Azure portal.

UiPath Robot

The deployment will create a modern folder in a UiPath Orchestrator with Users and Machine Templates assigned to it. For attended robots, the UiPath Orchestrator must have attended robots licenses. The names are as follows:

  • Folder: AzureDeployed
  • User (one for each robot deployed): Azure-<VM Name>-<RandomString>
    • Robot user (for each user): <VM Name>\<Machine Admin Username>
  • Machine Template (one for each robot deployed): AzureTemplate-<VMName>

The Azure Portal wizard will allow you to deploy one or more UiPath Robots. The components are:



Virtual Machine that will run scripts to configure the UiPath Robot and connect it to the UiPath Orchestrator. It gets deployed in a VNet together with a Network Interface Card and a separate storage account.

Going Through the Wizard

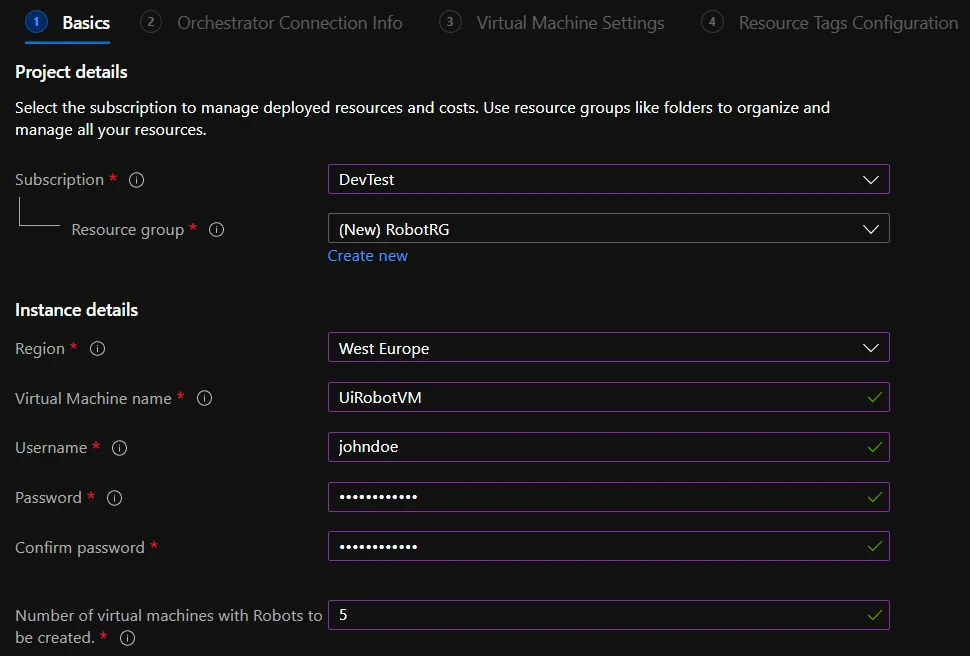

In this step, you need to select the subscription, the Resource Group, and Region where you want the solution to be deployed.



Subscription, Resource Group, and Region

Please select the subscription, the Resource Group, and Region where you want the solution to be deployed.

Virtual Machine Name

Provide a name for the Virtual Machine(s). If multiple and index will be added.


Set the administrator user for the Azure Virtual Machine


Virtual Machine password

Number of VMs/Robots

Enter the number of UiPath Robots you need.

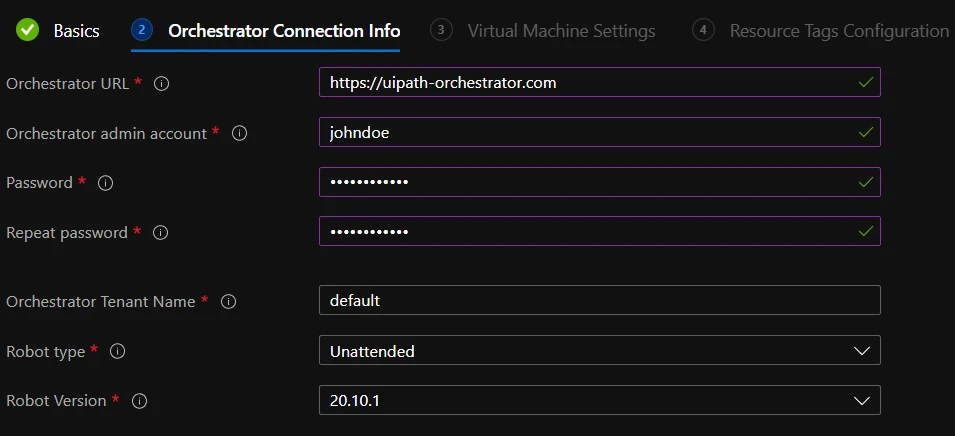

Orchestrator Connection Info



Orchestrator URL

The URL of an existing and licensed Orchestrator

Orchestrator Admin Account

Orchestrator admin account with API usage permissions.

Orchestrator Admin Password

Password for the aforementioned admin account

Orchestrator Tenant

Name of the tenant you want the robot to be connected to.

Type of Robot

Available robot types: Attended, Unattended

Robot Version

Select the version for the UiPath Robot

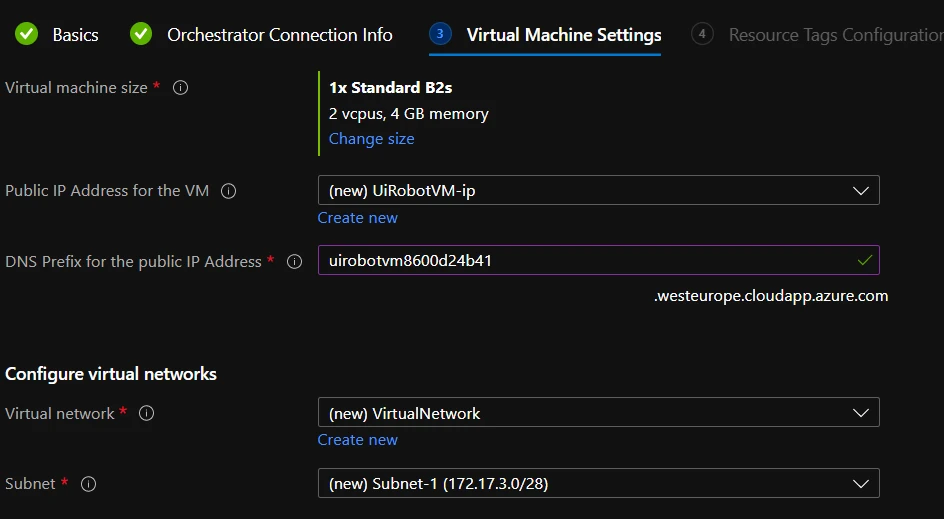

VM Settings



Virtual Machine Size

The size of the Robot VM.

Public IP Address for VM

The public IP name for each Robot (index appended if needed).

DNS Prefix for PIP

DNS Prefix for the public IP Address must be globally unique. Index appended if needed.

UiPath Robot(s) VNet

Name of existing or new VNet.


Subnet used for the UiPath Robot VMs.

Tags Configuration

Here you can create tags for the resources created in the deployment.

  • UiPath Robot
  • Going Through the Wizard
