UiPath Studio

The UiPath Studio Guide

The User Interface

UiPath Studio contains multiple panels for an easier access to specific functionalities. They can be docked, act as floating windows, or the Auto-hide option can be enabled from the drop-down list.

The Ribbon

The ribbon is straightforward and can be minimized or expanded by clicking the Minimize / Expand button minimize_expandminimize_expand. It consists of the following three tabs:

  1. Start - Start a new project from predefined templates or open a project you recently worked on. By default, projects are created in C:\Users\<current_user>\Documents\UiPath. The Open project dialog searches for project.json files.



Updating Studio to v2018.3 causes the Recent projects list to be reset.

  1. Design - add sequences, flowcharts and state machines to your project, install and manage activities packages, build interactions with UI elements, export workflows to Excel, and then publish your work to Orchestrator or custom feeds. Keep in mind, that Wizards and Selectors sections aren't visible in the Ribbon unless you install the UiPath.UIAutomation.Activities package.
  1. Execute - validate and run your workflow, while using debugging tools to set breakpoints, monitor the execution of activities step by step, and adjust the debugging speed. Open logs to view details regarding execution and any changes made to the project.



Files that are not created during the execution of the automation project become read-only when published to Orchestrator. If your business process requires you to write in a specific file at some point, be sure to create it while designing the project.

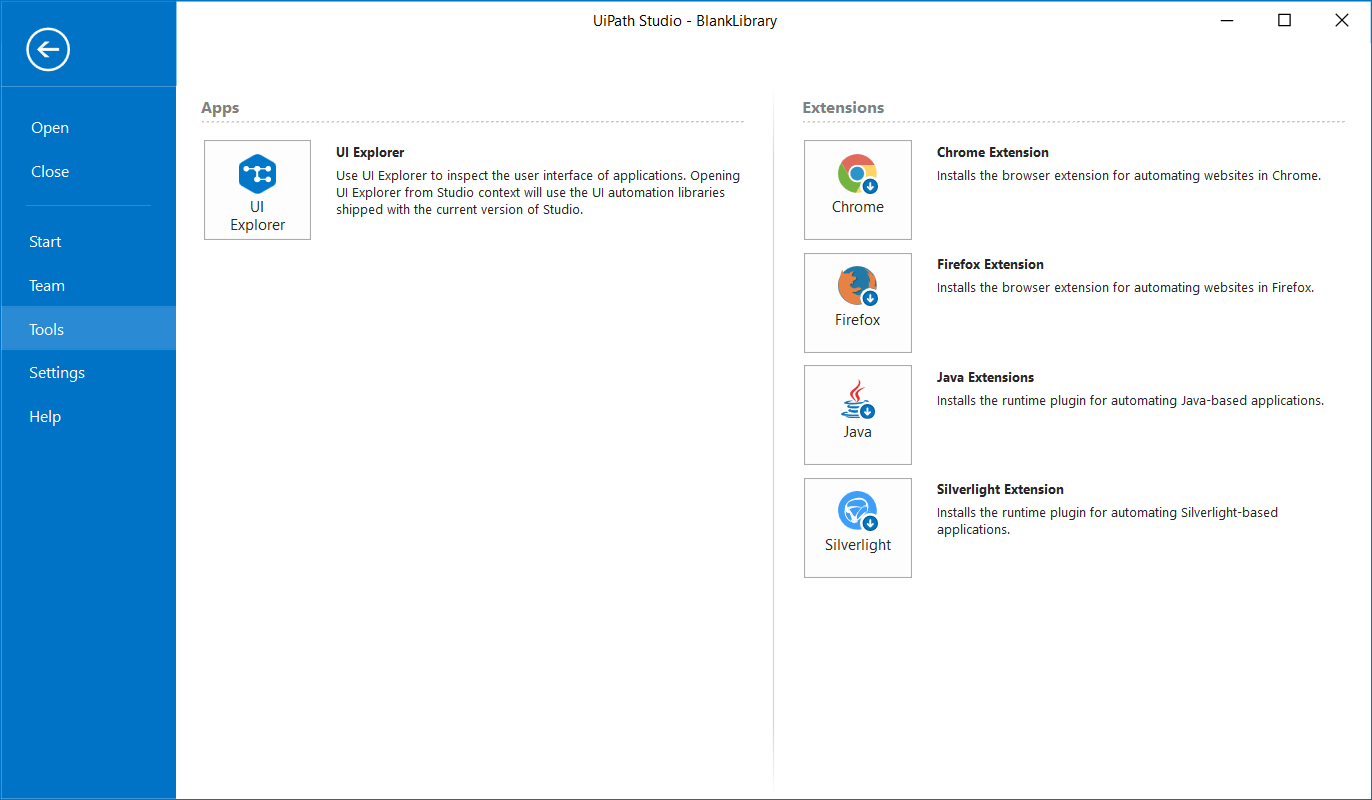

The Tools Tab

The Tools tab can be used for installing extensions for Chrome, Firefox, Java and Silverlight, and for launching the UI Explorer. For more information, check the Installing Chrome and Firefox extensions pages.

The Settings Tab

The Settings tab has the option to change the interface language for Studio and Robot, by picking one of the available languages: English, Japanese, French or Russian.

The Studio interface theme can be changed from the drop-down menu, by choosing either Light or Dark theme, and restarting Studio for the changes to apply.



The Dark Theme is currently an experimental feature in Studio, which means that it continues to be under development until it reaches the high quality and maturity standard enforced throughout our products.
For the Dark theme to work, automation projects must have at least UiPath.UIAutomation.Activities v18.4.2 and UiPath.System.Activities v18.4.1, as dependencies.

The Reset Settings button reverts Language and Theme settings in Studio to their default state. However, please note that it has no effect on feeds or favorite activities.

Aside from this, the following settings are reverted to their default state:

  • The list of Recent files;
  • Studio layout;
  • The Break on Exceptions option in the Execute tab > Options;
  • Show Activities options and pinned activities in the Activities panel;
  • User added folders in the Snippets panel, the last directory where you opened a project from, and the Update Channel, which is switched to Stable;
  • The last directory where you created a project, and the publish URL for libraries.

The Help Tab

The Help tab directs you to product documentation, release notes, online resources, the Community Forum and the RPA Academy.

Information regarding product version and installation, license availability, update channel and device ID is also found in the Help page, together with a Copy Info button for quickly copying the details to the clipboard.

The Quick Access Toolbar

The Quick Access Toolbar is located by default on the title bar, above the ribbon, yet you can easily move it below. It provides shortcuts for the most used commands.

The Universal Search Bar

The Universal Search bar enables you to search for activities, snippets, files, variables and arguments used in the project.

The Designer Panel

The Designer panel displays your current automation project, enables you to make changes to it, and provides quick access to variables, arguments and imports.

It is possible to navigate within a diagram by double-clicking the activity you want to view. The path is displayed as breadcrumbs in the header of the Designer panel.

Activate Pan Mode by clicking the pan_modepan_mode icon, holding the Space key or pressing the middle mouse button. Use the zoom drop-down to change the zoom level and click the reset_zoomreset_zoom icon to reset it back to 100%.

The Fit to Screen fit_screenfit_screen icon changes the zoom in such a way that the whole workflow fits in the Designer panel. Click the overviewoverview icon to get an overview of the whole project and navigate through sections by adjusting the focus.

The Context Menu

The context menu enables you to perform several operations on your workflow, be it a sequence or a flowchart. You can display it by right-clicking an activity inside your workflow.



If you select more activities, the menu is not displayed at all.

Field Descriptions for the Context Menu



View Parent

Displays the parent of the target activity in the Designer panel.
Note: This option is only displayed for child-activities, if they are opened in the Designer panel.


Opens the selected activity in the Designer panel. Has the same result as double-click.


Collapses the activity thus reducing the displayed details to "Double-click to view". You can achieve the same result by clicking the Collapse button **Collapse****Collapse**.
Note: Only displayed for sequences.

Expand in Place

Expands the content of the activity, displaying its detailed content. You can achieve the same result by clicking the Expand button **Expand****Expand**.
Note: Only displayed for sequences.


Removes the selected activity and places it onto the Clipboard.


Copies the selected activity and places it onto the Clipboard.


Inserts the content of the Clipboard at the current location.


Deletes the target activity.

Note: Since the Context menu is only displayed for a one-activity selection, you can use this command for more activities with the corresponding keyboard shortcut, Delete.


Add, edit, delete, show and hide annotations added to activities in the workflow.

Copy as Image

Makes a screenshot of the content displayed in the Designer panel.

Note: If you want to make a screenshot of a child activity, make sure to firstly open it in the Designer panel.

Save as Image

Makes a screenshot of the content displayed in the Designer panel and prompts the user to set the details for saving it (Name, Type, Destination). Supported formats: JPG, PNG, GIF, XPS.

Create Variable

Creates a variable in the Variable panel.

Remove Sequence

Removes the selected Sequence activity from the Designer panel.

Surround with Try Catch (Ctrl + T)

Inserts the activity in a Try Catch statement.

Note: A Try Catch statement is used for handling exceptions caused by data or coding errors. The Try clause encloses the activity to be checked for exceptions. The Catches clause is the exception handler. The Finally clause is used for executing an activity regardless of the status of the first two clauses.

Extract as Workflow

Creates a new workflow containing the targeted activity with the purpose of breaking down a large project into smaller ones. In the place of the extracted activity an Invoke <new> workflow activity is created which enables you to edit and import arguments from the newly created workflow. The arguments are created automatically from the variables used in that activity. The Invoke <new> workflow activity automatically maps the local variables to invoke arguments for the extracted workflow.

Open Workflow

Opens a workflow created using the above option.

Enable Activity

Enables a previously disabled activity.

Disable Activity

Disables an activity, which is then placed inside a Comment out activity.

Toggle Breakpoint

Marks the selected activity as a breakpoint for debugging. Breakpoints can also be toggled by clicking the Breakpoint button in the Execute tab. You can trigger a breakpoint for one activity at a time.

Show All Conditions

Displays all conditions defined in your project (Properties panel > Conditions).

Note: This option is only displayed for flowcharts when you right-click an empty space inside the project; it is not displayed if you right-click an activity in your flowchart.

Hide All Conditions

Hides all displayed conditions.

Note: This option is only displayed for flowcharts when you right-click an empty space inside the project; it is not displayed if you right-click an activity in your flowchart.

Set as Start Node

Connects the selected activity with the Start node.
Note: Only displayed for flowcharts.

Set as Initial State

Connects the State Machine specific activity to with the Start node.
Note: Only displayed for state machines.

The context menu is also displayed for tabs in the Designer panel. The following options are available:




Closes the active tab.

Close Others

Closes all tabs but the active one.

Close All Documents

Closes all tabs.


Undocks the target tab and changes it to a floating state.

Pin Tab

Pins the target tab in the Designer panel.
Note: The tab pinned last is always moved in front of all other existing tabs (pinned or not). The position of a pinned tab can only be changed relative to other pinned tabs.

New Horizontal Tab Group

Splits the screen horizontally, enabling you to see two or more instances of the Designer panel within the same screen. The target project is moved onto the panel on the right.
Note: Only displayed when your project contains two or more tabs and, implicitly, workflows.

New Vertical Tab Group

Splits the screen vertically, enabling you to see two or more instances of the Designer panel within the same screen. The target project is moved onto the panel at the bottom.
Note: Only displayed when your project contains two or more tabs and, implicitly, workflows.

Move to Previous Tab Group

Moves the target tab onto the previous Designer panel displayed.
Note: Only displayed if you had used the New Vertical Tab Group or New Horizontal Tab Group options before.

Move to Next Tab Group

Moves the target tab onto the next Designer panel displayed.
Note: Only displayed if you had used the New Vertical Tab Group or New Horizontal Tab Group options before.

The Activities Panel

The Activities panel shows available activities that can be added to the current project, and provides a search box for quick access.

The Show Activities list enables you to hide or show the Favorites, Recent, Available, and Compatibility folders of activities.



The search box can be used for finding activities by their class name, regardless of the interface language set in Studio.

The Snippets Panel

The Snippets panel enables you to easily reuse automations. It includes, by default, multiple samples and snippets.

You can add your own by clicking the Add Folder button and selecting a directory from your hard drive. Empty folders are not displayed.

To remove a folder, right-click it and select Remove.

The Project Panel

The Project panel enables you to view the contents of the current project, add folders, open the file location, and manage dependencies.

The panel has a quick navigation link to the Team tab for connecting to source control. For more information, see the Connecting your Project to Source Control chapter.

Context Menu for Projects

Right-click any file or folder in the Project panel to open a context menu that contains the following options:



Open Project Folder

Opens the local folder containing the project.

Add New Folder

Adds a new folder to the project tree.

Import Workflows

Imports .xaml files to the project and adds Imported in the file name if it coincides with the name of the main file.


Opens the selected .xaml file in the Designer panel.


Enables you to rename the selected file or folder, and opens the Rename Item window.


Deletes the selected item only from your local machine.


Runs the selected .xaml file.

Set as Main

Sets the selected .xaml file as Main in the project definition, meaning that the project execution starts with that file. There can only be one Main project file.

Make private or public

Makes the workflow contained in the library, either public or private. After publishing, the public workflow is available in the Activities panel.

Set as Global Handler

Sets the .xaml file as the Global Exception Handler for the project. This is applicable to one workflow per project/process.

Remove Handler

Removes the Global Exception Handler tag from the .xaml file.

The Properties Panel

The Properties panel is contextual and enables you to view and change the properties of a selected activity. When selecting two activities in the same workflow, common properties can be modified from the Properties panel.

The Outline Panel

The Outline panel displays the project hierarchy and all available nodes. You can highlight activities in this panel by selecting them in the Designer panel, or you can go to a specific activity by selecting it in the Outline panel.

The Output Panel

The Output panel enables you to display the output of the Log Message or Write Line activities, among other things. Exceptions for packages are also displayed in this panel.

From the Output panel, you can show or hide messages that have different log levels (errors, warnings) by clicking the buttons in the panel’s header. Double-clicking a message displays further details about it, with the option to copy information.

When debugging, the Output panel shows logs for when an activity starts executing and until it ends. This can be enabled from the Log Activities option in the Execute tab.

The Clear All button erases all info displayed in the Output panel. Logs and other data stored in this panel are erased when a workflow is run. The Output panel displays up to 2,000 lines at a time.

The Locals Panel

The Locals panel displays all the variables that are in the scope of the activity that is currently running. This panel is only visible while debugging.

It can be used to track the usage of variables during execution, as well as viewing their values while they change. This can be done in the Property Value window, which can be accessed by hovering over the Value field of a variable and clicking the searchsearch button.
