UiPath Robot

The UiPath Robot Guide

Field Descriptions

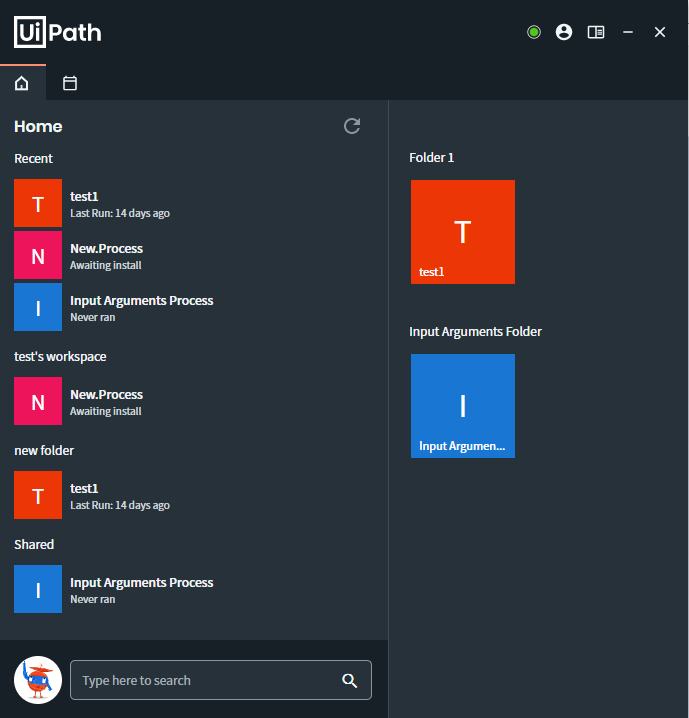

UiPath Assistant

FieldDescriptions
SearchFind available automations or reminders.
RecentDisplays the list of the last 3 run automations.
AutomationsDisplays the list of automations available to the user.
:information-source: When an automation is selected, it stays highlighted in the list.
RunStarts the corresponding automation.
PausePauses the corresponding automation.
This button is displayed only when an automation is already running.
It can be disabled for an automation from Studio.
StopTries to cancel the corresponding automation, and if it does not succeed, it terminates it.
This button is displayed only when an automation is already running.
InstallThis button is displayed only when an automation exists in the Orchestrator feed, or locally in the %ProgramData%\UiPath\Packages folder, but not in the %userprofile%\.nuget\packages one.
Downloads and adds a given automation to the %userprofile%\.nuget\packages folder. Only automation processes that are in this folder can be executed directly from the tray.
RefreshRefreshes the list of available automations.
Preferences - The icon represents the logged in user's credentials.Opens the Preferences menu. It can also be accessed by right-clicking the Robot tray icon. The following functionalities are available:
Preferences - opens the Assistant Settings window, so that you can configure global keyboard shortcuts to pause/resume and stop automations, set the language, change the theme and configure how the automations are displayed.
: fa-caret-right Help - opens the Robot Documentation Guide.
: fa-caret-right Sign Out or Sign In - sends the command to connect or disconnect the robot from Orchestrator.
Quit - closes UiPath Assistant.
RobotThe place where you can name and choose an image for your Robot.
LaunchpadThe place where you can arrange your favorite automations individually or in groups.

The Assistant Settings Window

The General Section

FieldDescription
ThemeEnables you to change the theme for UiPath Assistant.
LanguageEnables you to change the interface language of UiPath Assistant and Studio.
ZoomAllows you to increase or decrease the size of the content in the UiPath Assistant.
Automations ListGroup by folder - this toggle organizes the automations in groups (Orchestrator folders or Widgets) on the home page. :warning: not available for offline users.
Show in Windows Start Menu - enable this to make the automations available in the UiPath Assistant available in the Windows Start Menu. This option can be managed also from the Automation Ops policy. Enable this option to make the automations available in the UiPath Assistant accessible from the Windows Start Menu.
Automatically start Assistant with WindowsIn the System section, this toggle allows you to enable/disable the Assistant launch at sign in. If checked, the Assistant will start at sign in time, in tray mode. A similar option exists for Assistant on MacOS.
Company PolicyDisplays the company policy deployed.
VersionProvides information about the UiPath Assistant and Operating System version.
1194

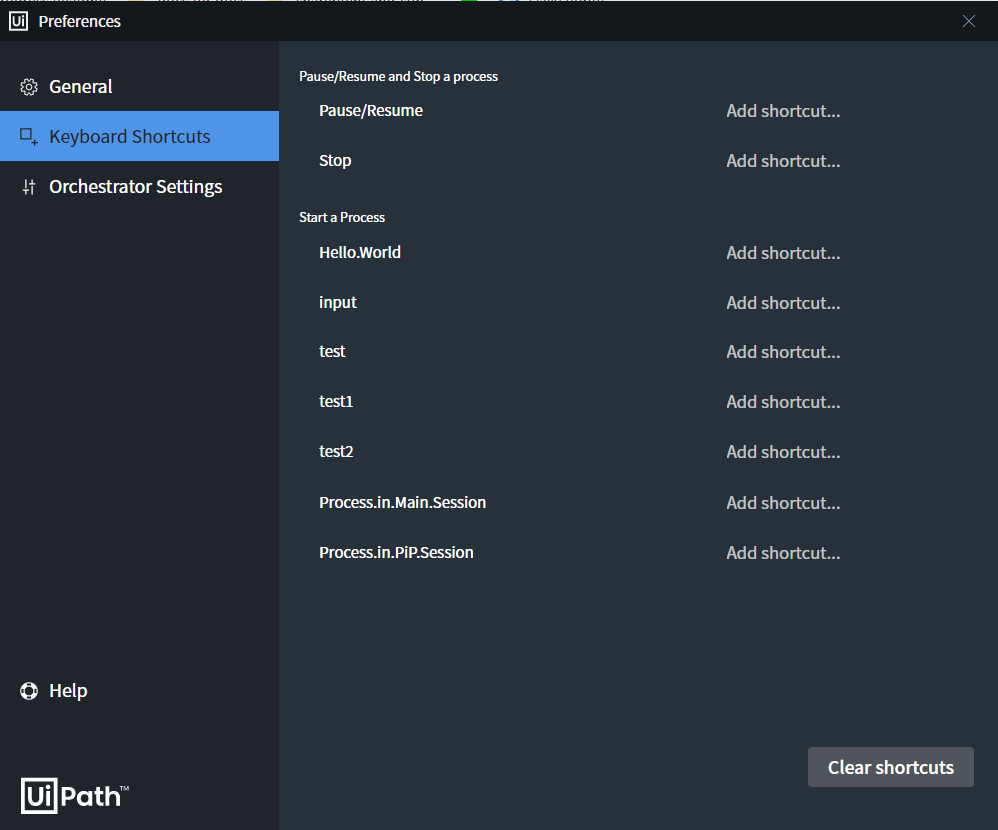

The Keyboard Shortcuts Section

FieldDescription
Automation NameAn available automation for which you can set a keyboard shortcut to start it.
Add ShortcutAllows you to configure a global keyboard shortcut to start the corresponding automation.
Pause/ResumeAllows you to configure a global keyboard shortcut which pauses or resumes the execution of the currently running automation.
StopAllows you to configure a global keyboard shortcut which stops the currently running automation.
1198

📘

Note:

In order to prevent stop/pause/resume actions that can affect multiple jobs at once, the keyboard shortcuts do not apply to background jobs.

There are a few things to consider when you configure automations keyboard shortcuts:

  • You can use up to three different modifier keys (Ctrl, Alt, Shift) and any other keyboard button. Examples: Ctrl + Alt + Shift + P, Ctrl + Alt + P, Shift + P. Please note that the FN key modifier is not supported.
  • Your character combination can contain numpad buttons, such as Ctrl + Alt + Num3. Note that using the numerical equivalent instead of the assigned numpad button doesn't work.
  • If your character combination contains a numerical value, its numpad equivalent does not work. For instance, using Ctrl + Alt + Num3 instead of Ctrl + Alt + 3.
  • You can use function key from F1 to F11. Please note that F12 is not supported because it is a Windows global keyboard shortcut.
  • You can not use a global keyboard shortcut which is already in use by a different application.
  • If a third-party running application uses the same keyboard shortcut but is not global, the Robot keyboard shortcut is taken into consideration.
  • Global keyboard shortcuts can be registered and used by Robots installed on virtual environments.
  • If the same keyboard shortcut is used by the Unblock options the Block User Input activity and the Robot, it unblocks the user input when first pressed, and either pauses/resumes, or stops the automation the next time it is pressed.
  • You first need to start an automation before you can use the assigned global keyboard shortcuts.

You can also zoom in using the following keyboard shortcuts:

  • Ctrl + Shift + = to zoom in
  • Ctrl + - to zoom out
  • Ctrl + 0 to reset

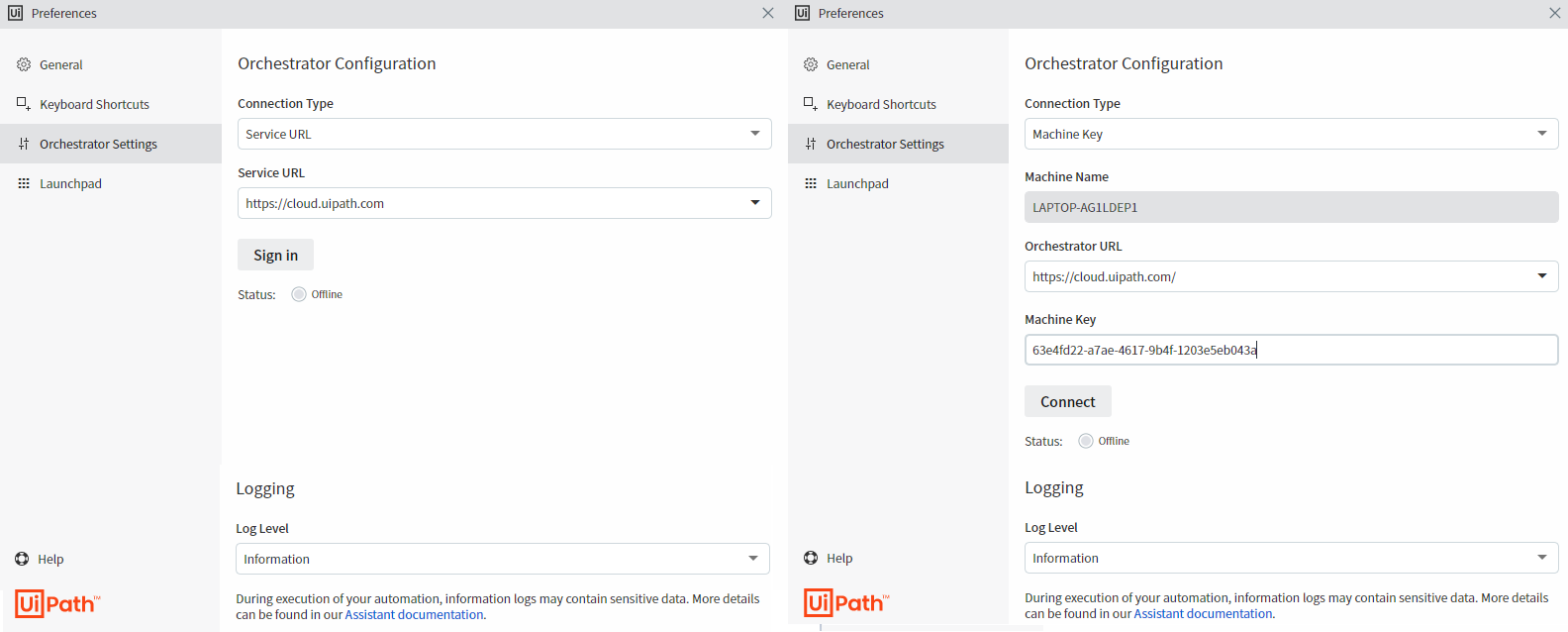

The Orchestrator Settings Section

FieldDescriptions
Connection TypeThe connection type to Orchestrator has three options: Service URL (for Interactive Sign In), Client ID, or Machine Key.
Machine NameThe name of the machine on which the Robot is installed. It is automatically filled in. It needs to be between 1 and 15 characters. If the machine name is longer than 16 characters, then it appears truncated in the Orchestrator Settings window. For example, if your machine name is WORKSTATIONWIN7_01 it appears as WORKSTATIONWIN7 in the Orchestrator Settings window. The following characters are not supported:
Backslash \
Slash mark /
Colon :
Asterisk *
Question mark ?
Quotation mark "
Less than sign <
Greater than sign >
Vertical bar |

Please note that full stop . is a supported character, but the Machine Name cannot start with it. Some computer names are reserved by default. You can find out more about NetBIOS computer names and limitations on this page.
Service URLThe URL used to connect to Orchestrator when Interactive Sign In is used. Clicking the Search button opens a browser window with the Orchestrator instance.
Orchestrator URLThe URL of your Orchestrator instance, such as https://platform.uipath.com/. The URL is saved in a drop-down menu so that next time you connect to Orchestrator you only need to select the target URL.
Machine KeyThe Machine key copied from the Provision Robot window in Orchestrator. The key is saved. Next time you select the Orchestrator URL to connect to this field is automatically filled in with the corresponding key.
Client IDThe client ID refers to the robot identifier part of the client ID - client secret pair. This is generated in Orchestrator as described here.
Client SecretThe client secret refers to the authorization part of the client ID - client secret pair. This is generated in Orchestrator as described here.
Sign InInitiates the authentication automation when Interactive Sign In is used.
Sign OutLogs you out from Orchestrator and disconnects the Robot.
ConnectEnables you to connect the Robot to Orchestrator. This button is not available if the Robot is already connected to Orchestrator or if all the required fields are not filled in properly.
DisconnectEnables you to disconnect the Robot from Orchestrator. This button is available only if the Robot is connected to Orchestrator.
LoggingThe level at which the Robot should log information. The following levels are available: Verbose, Trace, Information, Warning, Error, Critical, and Off. You can control if the users can change the log level from UiPath Assistant from Automation Ops.
StatusInforms you about the Robot's connection to Orchestrator. It can have the following values:
Connected, licensed
Connected, unlicensed
Robot unavailable.
Use Assistant in Offline modeUse this toggle to use UiPath Assistant in Offline mode.
CloseCloses the Orchestrator Settings window.
2393

The Launchpad Section

Here you can choose to show or hide the Task Capture Launcher and the ability to submit an idea to Automation Hub.

1006

The Tools Section

This section provides you with the option to manually migrate your local automations to your personal workspace folder. The Migrate button is grayed out if you don't have any published local automations.

When you choose to migrate your automations, after they are published in your personal workspace, on your machine, the migrated packages are moved to a newly created folder, which is usually C:\ProgramData\UiPath\Packages\migrated-to-orchestrator, unless you changed the default path.

998

The Help Section

This section provides you a quick access to the documentation, and a quick feedback survey.
You can also launch one of the guided tours of Assistant, or the UiPath Diagnostic Tool.

997
