The UiPath Process Mining Guide

Compliance - Tags

Introduction

In Process Mining, tags are the business rules you apply to your data, for example, multiple final checks needed, payment info not clear, and more. The Compliance – Tags dashboard can be used to analyze the tags that occur. It displays what the process looks like for each of these individual tags, and enables you to analyze in more detail where the tags occur in the process, who was involved and so on. See the illustration below.

📘

Note

If you want to use the Compliance - Tags dashboard to analyze tags, the attributes for the Tags table must be loaded in TemplateOne. See Input tables of TemplateOne.

Context information

The context bar at the top of the Compliance - Tags dashboard displays context information and KPI's.
Below is a description of the elements of the context bar.

Element

Description

Percentage of cases with tag

The percentage of cases that have a tag assigned.

Average throughput time cases with tag

The average throughput time for cases that have a tag assigned.

Total case value cases with tags

The total value of all cases that have a tag assigned.

Number of cases with tag

The total number of cases that have a tag assigned.

Which tags occur?

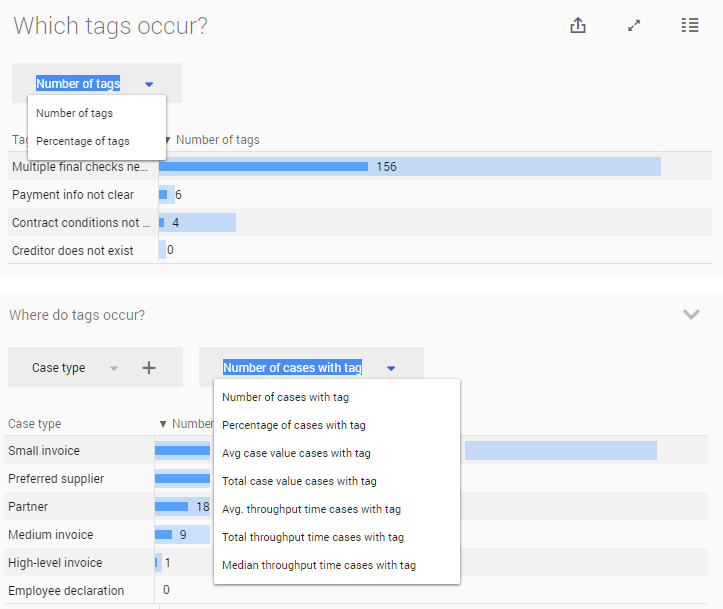

You can create various different contexts by selecting different groupings from the drop-down list. The metric selector enables you to select different metrics. See the illustration below.

Below is a description of the metrics that can be used to analyze the cases regarding tags.

Metric

Description

Number of cases with tag

The number of cases that have a tag assigned.

Percentage of cases with tag

The percentage of cases that have a tag assigned related to the number of cases.

Avg case value cases with tag

The average value of the cases that have a tag assigned.

Total case value cases with tag

The total value of all cases that have a tag assigned.

Avg throughput time cases with tag

The average throughput time of the cases that have a tag assigned.

Total throughput time cases with tag

The total throughput time of the cases that have a tag assigned.

Median throughput time cases with tag

The median throughput time of the cases that have a tag assigned.

Process graph

The process graph displays the process for cases that have tags based on the number of cases that have tags assigned.

Viewing the process based on a different metric

Follow these steps to select a different metric for the process graph.

Step

Action

1

Click on the imageimage icon in the process graph.

2

Select a different metric from the list of available metrics.

See the illustration below for an example.

📘

Note

You can use the Detail slider to change the number of activities and/or edges shown.

See also Working with Process Graphs.
