The UiPath Process Mining Guide

Input Tables of Purchase-to-Pay Discovery Accelerator 21.10

Introduction

This section contains an overview of the attributes for each of the input tables of the Purchase-to-Pay Discovery Accelerator. For each entity the attributes are listed. For each attribute, the name and a data type are displayed. Apart from that, it is indicated whether the attribute is mandatory if the entity is included in the Purchase-to-Pay process.

Entity

Table

Mandatory Y/N

Purchase requisition

Purchase_requisitions_base

N

Purchase order

Purchase_orders_base

Procurement: Y
Accounts payable: N

Purchase order item

Purchase_order_items_base

Procurement: Y
Accounts payable: N

Goods receipt

Goods_receipt_base

N

Invoice

Invoices_base

Procurement: N
Accounts payable: Y

Invoice item

Invoice_items_base

Procurement: N
Accounts payable: Y

Accounting

Accounting_documents_base

N

Payment

Payments_base

N

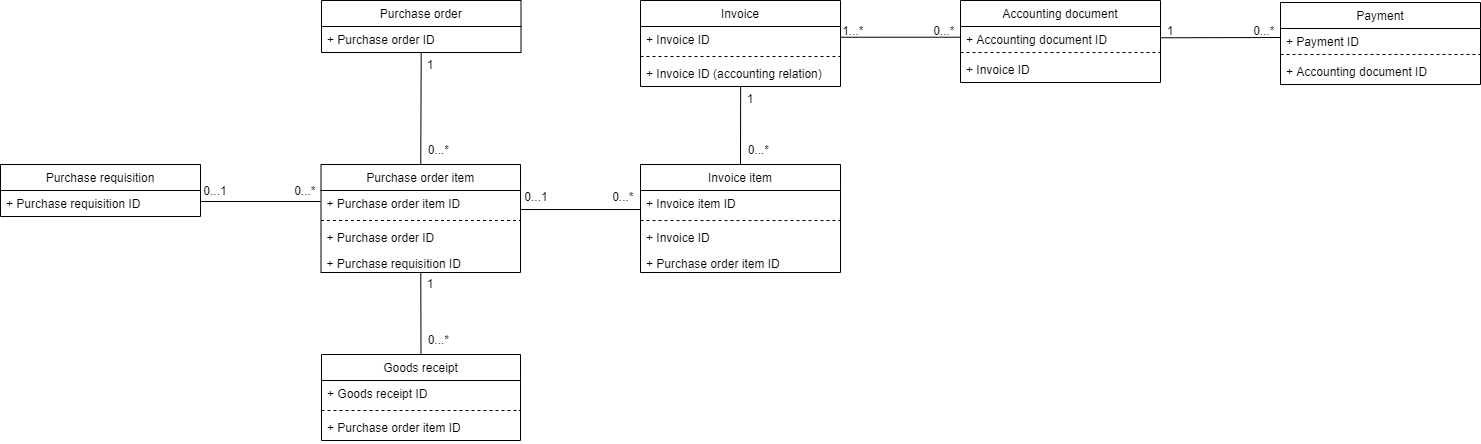

The illustration below displays the relations between entities of the Purchase-to-Pay Discovery Accelerator.

Purchase requisition

Purchase_requisitions_base table

Below is an overview of the attributes of the Purchase_requisitions_base table.

Name

Data type

Mandatory Y/N

Description

Purchase requisition ID

Text

Y

The unique identifier of the purchase requisition.

Creation date

Date

Y

The date on which the purchase requisition is created.

Approval status

Text

N

The status of the purchase requisition in the process. For example, ‘open’, ‘closed’, ‘pending’, ‘approved’, etc.

Material

Text

N

The requested material.

Material group

Text

N

The categorization of the requested material.

Purchase requisition

Text

N

A user-friendly name to identify the purchase requisition.

Purchase requisition type

Text

N

The categorization of purchase requisitions.

Quantity

Text

N

The quantity and the unit of measurement requested.

Requisitioner

Text

N

The person who requested the purchase requisition

Value

Double

N

A monetary value related to the purchase requisition

Purchase order

Purchase_orders_base table

Below is an overview of the attributes of the Purchase_orders_base table.

Name

Data type

Mandatory Y/N

Description

Purchase order ID

Text

Y

The unique identifier of the purchase order.

Creation date

Date

Y

The date on which the purchase order is created.

Approval status

Text

N

The status of the purchase order in the process. For example, ‘open’, ‘closed’, ‘pending’, ‘approved’, etc.

Company

Text

N

The company for which the purchase order is created.

Purchase order

Text

N

A user-friendly name to identify the purchase order.

Purchase order creator

Text

N

The person who created the purchase order.

Purchase order type

Text

N

The categorization of purchase orders.

Purchasing group

Text

N

The purchasing group associated with the purchase order.

Purchasing organization

Text

N

The purchasing organization associated with the purchase order.

Supplier

Text

N

The supplier associated with the purchase order.

One time supplier

Boolean

N

An indicator if the supplier is a one time supplier.

Supplier country

Text

N

The country associated to the supplier.

Supplier region

Text

N

The region associated to the supplier.

Purchase_order_items_base table

Below is an overview of the attributes of the Purchase_order_items_base table.

Name

Type

Mandatory Y/N

Description

Purchase order item ID

Text

Y

The unique identifier of the purchase order item

Purchase order ID

Text

Y

The unique identifier of the purchase order

Purchase requisition ID

Text

N*

The unique identifier of the purchase requisition.

Business area

Text

N

The business area associated with the purchase order item.

Cost center

Text

N

The cost center associated with the purchase order item.

Customer

Text

N

The customer on behalf of whom the purchase order item is created.

Customer country

Text

N

The country associated to the customer.

Customer region

Text

N

The region associated to the customer.

Delivery complete

Boolean

N

Indicator if all ordered goods are received.

Latest actual delivery date

Date

N

The latest actual delivery date for the purchase order item.

Latest expected delivery date

Date

N

The latest originally confirmed delivery date for the purchase order item.

Material

Text

N

The ordered materials.

Material group

Text

N

The categorization of the ordered materials.

Plant

Text

N

The plant associated to the purchase order item.

Purchase order item

Text

N

A user-friendly name to identify the purchase order item.

Quantity

Text

N

The quantity and the unit of measurement ordered.

Storage location

Text

N

The storage location associated to the purchase order item.

Value

Double

N

The monetary value related to the purchase order item.

* If you want to include purchase requisition events in the process graphs, the Purchase requisition ID field is mandatory.

Goods_receipt_base

Below is an overview of the attributes of the Goods_receipt_base table.

Name

Type

Mandatory Y/N

Description

Goods receipt ID

Text

Y

The unique identifier of the goods receipt.

Purchase order item ID

Text

N*

The unique identifier of the purchase order item.

* If you want to include goods receipt events in the process graphs, the Purchase order item ID field is mandatory.

Invoice

Invoices_base table

Below is an overview of the attributes of the Invoices_base table.

Name

Type

Mandatory Y/N

Description

Invoice ID

Text

Y

The unique identifier of the invoice.

Invoice ID (accounting relation)

Text

N*

The unique identifier of the invoice as known in the accounting system.

Creation date

Date

Y

The date on which invoice was created in the system.

Baseline date

Date

N

The baseline date for due date calculation of the invoice.

Company

Text

N

The company associated with the invoice.

Discount percentage 1

Double

N

The discount percentage for discount period 1.

Discount percentage 2

Double

N

The discount percentage for discount period 2.

Discount period 1

Integer

N

The payment period for which discount percentage 1 applies.

Discount period 2

Integer

N

The payment period for which discount percentage 2 applies.

Fiscal year

Text

N

The fiscal year that the invoice belongs to.

Invoice

Text

N

A user-friendly name to identify the invoice.

Invoice creator

Text

N

The person who created the invoice.

Invoice date

Date

N

The date on which the received invoice was created.

Invoice type

Text

N

Categorization of invoices.

Net payment period

Integer

N

The net payment period for the invoice in days.

Payment method

Text

N

The payment method of the invoice.

Payment terms

Text

N

The payment terms applicable for the invoice.

Posting date

Date

N

Te date on which the invoice was posted (accounting).

* If you want to include accounts payable events in the process graphs, the Invoice ID field is mandatory.

Invoice_items_base table

Below is an overview of the attributes of the Invoice_items_base table.

Name

Type

Mandatory Y/N

Description

Invoice Item ID

Text

Y

The unique identifier of the invoice item.

Invoice ID

Text

N*

The unique identifier of the invoice.

Purchase order item ID

Text

N*

The unique identifier of the purchase order item.

Invoice item

Text

N

A user-friendly name to identify the invoice item.

Material

Text

N

The material invoiced.

Plant

Text

N

The plant associated to the invoice item.

Quantity

Text

N

The quantity and the unit of measure for the invoice item.

Value

Double

N

The monetary value of the invoice item.

* If you want to include events related to accounts payable in the process graphs, the Invoice ID and Purchase order item ID fields are mandatory.

Accounting

Accounting_documents_base table

Below is an overview of the attributes of the Accounting_documents_base table.

Name

Type

Mandatory Y/N

Description

Accounting document ID

Text

Y

The unique identifier of the accounting document.

Invoice ID

Text

N*

The unique identifier of the invoice as known in the accounting system.

* If you want to include events related to accounts payable in the process graphs, both the Accounting document ID and Invoice ID fields are mandatory.

Payment

Payments_base table

Below is an overview of the attributes of the Payments_base table.

Name

Type

Mandatory Y/N

Description

Payment ID

Text

Y

The unique identifier of the payment.

Accounting document ID

Text

N*

The unique identifier of the accounting document.

Payment is complete

Boolean

N

An indicator if the payment is a full clearing

* If you want to include payment events in the process graphs, the Accounting document ID field is mandatory.

Events

Events_base table

The Events_base table contains all sub-event logs for all entities. Below is an overview of the attributes of the Events_base table.

Name

Type

Mandatory Y/N

Description

Activity

Text

Y

The name of the event. This describes the step in the process.

Event end

DateTime

Y

The timestamp associated with the end of executing the event

Purchase requisition ID

Text

Y

The unique identifier of the purchase requisition.

Purchase order ID

Text

Y

The unique identifier of the purchase order.

Purchase order item ID

Text

Y

The unique identifier of the purchase order item.

Goods receipt ID

Text

Y

The unique identifier of the goods receipt.

Invoice ID

Text

Y

The unique identifier of the invoice.

Invoice item ID

Text

Y

The unique identifier of the invoice item.

Accounting document ID

Text

Y

The unique identifier of the accounting document.

Payment ID

Text

Y

The unique identifier of the payment.

Activity category

Text

N

The type of activity that takes place (e.g. change, set/remove block)

Activity code

Text

N

The code for the activity that takes place used to define metrics and tags in the Purchase-to-Pay Discovery Accelerator.

Activity order

Integer

N

The number that defines in which order activities are executed in case they have the same Event end.

Activity trigger

Text

N

An attribute that describes the reason for the executed activity.

Department

Text

N

The department that executed the event.

Event detail

Text

N

Information related to the event.

Automated

Boolean

N

An indicator whether the event is manually executed or automated.

User

Text

N

The user who executed the event.

User function

Text

N

The function associated with the user.

User type

Text

N

The categorization of the user.

📘

Notes

It is expected that for each record exactly one of the ID fields is filled in, which is the one of the entity on which the event takes place. The other ID fields may be empty.

Next to the standard mandatory attributes (Activity and Event end), one entity ID is mandatory. This field depends on the entity the event is part of.

Activity code

Several activities in the Purchase-to-Pay Discovery Accelerator are used to calculate metrics or tags. If your source system uses a different name for a certain activity, the Activity code can be used to map your activity to the appropriate activity in Purchase-to-Pay Discovery Accelerator to make sure that the correct activities are used for calculation.

If you define the (optional) Activity code attribute, make sure that the available activity codes are defined in your input data.
Below is an overview of the Activity codes that are available in Purchase-to-Pay Discovery Accelerator.

Activity code

Description

Usage

APPROVE_PO

Purchase order is approved
(on any level)

Metrics
• Throughput times:

  • Purchase order approval until Goods are received;
  • Purchase requisition creation until the Purchase order is approved;
  • Purchase requisition approval to Purchase order approval.
    • Number of Purchase order approvals.

Tags
• Goods are delivered before/without the Purchase order is approved or unreasonably quick;
• Invoice is received before/without the Purchase order is approved.

APPROVE_PR

Purchase requisition is approved
(on any level)

Metrics
• Throughput times:

  • Purchase requisition approval to Purchase order approval.
    • Number of Purchase requisition approvals.

CREATE_INVOICE

Invoice is created

Metrics
• Throughput times:

  • Invoice creation until the last outgoing payment.

CREATE_INVOICE_ITEM

Invoice item is created

Tags
• Invoice is received before/without the Purchase order is approved or Purchase order item is created.
• An invoice is received too soon after an Purchase order approval.

CREATE_OUTGOING_PAYMENT

Outgoing payment is executed

Metrics
• Throughput times:

  • Invoice creation until the last outgoing payment.

CREATE_PO

Purchase order is created

Metrics
• Throughput times:

  • Purchase requisition approval to Purchase order approval.

CREATE_PO_ITEM

Purchase order item is created

Tags
• Goods are delivered before the Purchase order item is created;
• Invoice is received before the Purchase order item is created.

CREATE_PR

Purchase requisition is created

Metrics
• Throughput times:

  • Purchase order approval until Goods are received.

GOODS_RECEIPT

Goods are received

Metrics
• Throughput times:

  • Purchase order is approved until Goods are received.

Tags
• Goods are delivered before/without the Purchase order is approved or before the Purchase order item is created;
• Goods are delivered too quickly after the Purchase order is approved.

REVOKE_APPROVED_PO

Purchase order approval is revoked (on any level)

Metrics
• Number of purchase order approval revocation.

REVOKE_APPROVED_PR

Purchase requisition approval is revoked (on any level)

Metrics
• Number of purchase requisition approval revocation.

Attribute type

Below is an overview of the different attribute types and their default format settings.

Attribute type

Specification

Boolean

n/a

Date

Format: YYYY-M-D

DateTime

Date format: YYYY-M-D
Time format: h:mm[:ss[[.zzz]]]

Double

Decimal separator: . (dot)
Thousand separator: none

Integer

Thousand separator: none

Text

n/a.

Input format

Some of the attribute types of the input attributes can have multiple format settings which can differ. For example, two attributes can be both of type Date, but they can each have a specific format.

If your input data is of a different format than the default format in the Purchase-to-Pay Discovery Accelerator, you can edit the format settings for all the input attributes of that type in the Edit Datasource Attribute dialog in the Purchase-to-Pay Discovery Accelerator to match the format of your input data. See the illustration below for an example.

Changing the display format

If you want to use different display formats in the Purchase-to-Pay Discovery Accelerator than the default format that is set for the attribute type, you can change the display format settings in Purchase-to-Pay Discovery Accelerator. For example, if you want to use a different currency string you can change the settings in the Display Format dialog.

Follow these steps to open the Display Format dialog.

Step

Action

1

Click on imageimage and select Settings....

2

Click on DISPLAY FORMAT....

See the illustration below.

In a similar way, you can change the decimal separator or thousand separator for specific attributes.
For more information see Display Format.

Updated about a month ago

Input Tables of Purchase-to-Pay Discovery Accelerator 21.10


Suggested Edits are limited on API Reference Pages

You can only suggest edits to Markdown body content, but not to the API spec.
