The UiPath Marketplace Guide

Launch EIB

The LaunchEIB activity uses the SOAP Launch_EIB operation to invoke a specified EIB integration (IntegrationSystemID or WorkdayID).

After invoking the EIB integration, the activity outputs the EIB event details in an Integration_EventType object (IntegrationEvent) and the status of the request (success/failure information) in a ResponseStatus object (ResponseStatus) that you can use in subsequent activities (e.g., conditional logic).

How it works

The following steps and message sequence diagram is an example of how the activity works from design time (i.e., the activity dependencies and input/output properties) to run time.

  1. Complete the Setup steps.
  2. Add the Workday Scope activity to your project.
  3. Add the Launch EIB activity inside the Workday Scope activity.
  4. Enter values for the Input properties and Options properties if applicable.
  5. Create and enter Integration_EventType and ResponseStatus variables for the Output properties.
    • The request is sent to the Launch_EIB operation.
    • The operation returns the Integration_EventType and ResponseStatus values to your output property variables.

Properties

The values for the following properties are specified when adding this activity to your project in UiPath Studio.

Common

DisplayName

The display name of the activity.

Attributes

Details

Type

String

Required

Yes

Default value

Launch EIB

Allowed values

Enter a String or String variable.

Notes

N/A


Input

IntegrationSystemID

The name of the integration EIB that you want to launch.

Attributes

Details

Type

String

Required

Yes (if the WorkdayID property is empty)

Default value

Empty

Allowed values

Enter a String or String variable.

Notes

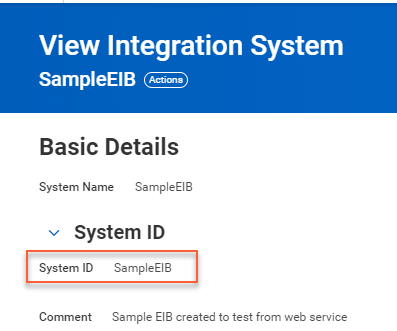

Enter your value as it's shown under the System ID section of the EIB integration details page (see example below).


WorkdayID

The integration identifier assigned to the EIB that you want to launch.

Attributes

Details

Type

String

Required

Yes (if the IntegrationSystemID property is empty)

Default value

Empty

Allowed values

Enter a String or String variable.

Notes

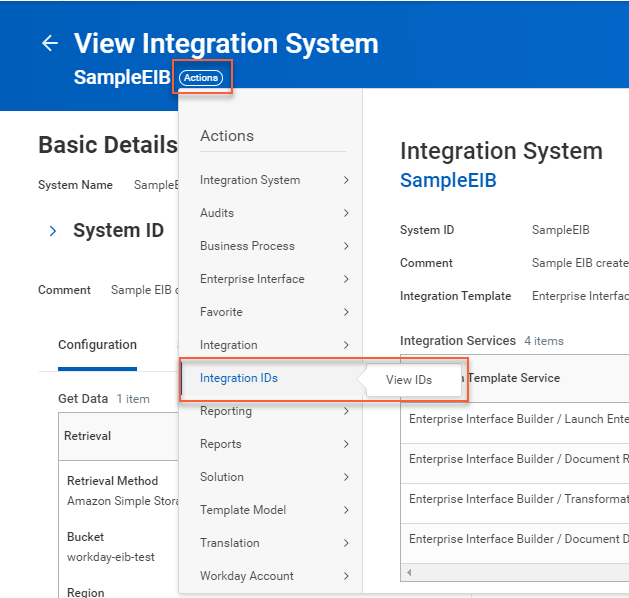

To get the WorkdayID value:
Go to the View Integration System page in your Workday tenant.
Select the EIB that you want to launch.
Click the Actions button and select Integration IDs from the menu.


Misc

Private

If selected, the values of variables and arguments are no longer logged at Verbose level.

Attributes

Details

Type

Checkbox

Required

No

Default value

Not Selected

Allowed values

Selected or Not Selected

Notes

N/A


Options

File

The local path to the configuration file(s) required for the specified EIB.

Attributes

Details

Type

String

Required

No

Default value

Empty

Allowed values

Enter a String or String variable.

Notes

N/A


ServiceComponentData

The service component data of the EIB.

Attributes

Details

Type

Integration_Service_Component_Override_DataType[]

Required

No

Default value

Empty

Allowed values

Enter a Integration_Service_Component_Override_DataType[] variable.

Notes

For more information about the ServiceComponentData, see Integration_Service_Component_Override_Data in the Workday documentation.


Version

Specifies a specific web service version that you want to use for the activity.

Attributes

Details

Type

String

Required

No

Default value

Empty

Allowed values

Enter a String or String variable.

Notes

N/A


Output

ResponseStatus

The status of the request (success/failure information).

Attributes

Details

Type

ResponseStatus

Required

No (required if you want to use the output data in subsequent activities)

Default value

Empty

Allowed values

Enter a ResponseStatus variable.

UiPath.BAF.Models.ResponseStatus

Notes

The ResponseStatus object includes three properties that you can use in other activities.
Success - Boolean - Specifies whether the API request was successful.
ErrorCode - String - The response error if the API request is unsuccessful (Success=False).
Message - String - The error message.
The example image below shows some of the properties that you can return.
The response also includes the Application_Instance_Exceptions_Data.


IntegrationEvent

The integration event details.

Attributes

Details

Type

Integration_EventType

Required

No (required if you want to use the output data in subsequent activities)

Default value

Empty

Allowed values

Enter a Integration_EventType variable.

Notes

For more information about the IntegrationEvent, see Integration_EventType in the Workday documentation.

Updated 5 months ago
