Oracle Process Scope

Each Oracle OIC activity calls a Oracle Integration REST API using the request parameters you enter in the activity's input properties. To successfully call the Oracle Integration REST APIs, the activities rely on the Oracle Process Scope activity to provide the account credentials that enable access to the Oracle Integration instance.

Using your account credentials (Username, Password) and the integration instance endpoint (URL), the Oracle Scope activity establishes an authenticated connection to your Oracle Integration instance.

How it works

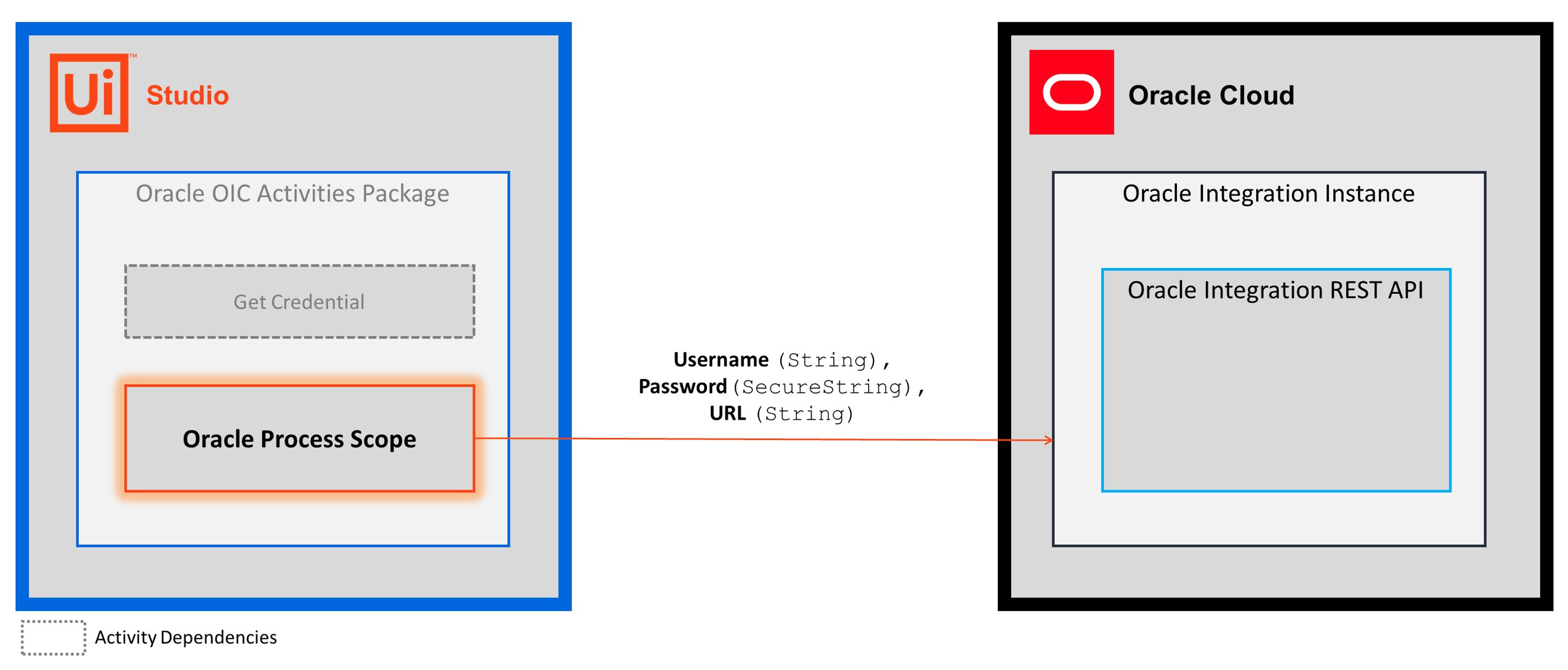

The following steps and message sequence diagram is an example of how the activity works from design time (i.e., the activity dependencies and input/output properties) to run time.

  1. Complete the Setup steps.
  2. Add a Get Credential activity to retrieve the Orchestrator asset that contains your username and password.
  3. Add the Oracle Process Scope activity to your project.
  4. Enter values for the Credentials and Input properties.

Properties

The values for the following properties are specified when adding this activity to your project in UiPath Studio.

Wizards

The Oracle OIC activities include wizards to test your connection (Connection Wizard) and select a process (Select Process). Currently, only the Start Process activity requires the use of the wizards.

Connection Wizard

To build your project and enable the select process wizard in the Start Process activity, you connect to your Oracle Integration instance using the connection wizard.

To use the connection wizard:

  1. Click Configure (this opens the connection wizard).
  2. Enter your Oracle Integration instance URL, Username, and Password (variables are not accepted).
  3. Click Test Connection and wait for the connection success window.

After a successful connection, the select process wizard is enabled.

🚧

Note

The values that you enter in the Configure Connection window test the connection only. Before you run the activities, you must enter the values in the Oracle Process Scope properties.


Common

DisplayName

The display name of the activity.

Attributes

Details

Type

String

Required

Yes

Default value

Oracle Process Scope

Allowed values

Enter a String or String variable.

Notes

N/A


Credentials

Password

The password associated with the Username.

Attributes

Details

Type

SecureString

Required

Yes

Default value

Empty

Allowed values

Enter a SecureString variable.

Notes

To enter your SecureString variable, use the Get Password and Assign activities or a Get Credential activity (see example below).
To handle a SecureString in the Assign activity, install the UiPath.Credentials.Activities package to add support for the Credential class.


Username

The user that you want to use to connect to your Oracle Integration instance.

Attributes

Details

Type

String

Required

Yes

Default value

Empty

Allowed values

Enter a String variable.

Notes

The user must have access to the Oracle Integration instance that you specify in the URL property (you may need to contact your account administrator).
For more information, see Configuring Access to Oracle Integration Instances.


Input

URL

The URL of the integration instance that you want to connect to.

Attributes

Details

Type

String

Required

Yes

Default value

Empty

Allowed values

Enter a String or String variable.

Notes

Example URL: https://NAME-axi1mj0d0viv-px.integration.ocp.oraclecloud.com/


Misc

Private

If selected, the values of variables and arguments are no longer logged at Verbose level.

Attributes

Details

Type

Checkbox

Required

No

Default value

Not Selected

Allowed values

Selected or Not Selected

Notes

N/A


Example

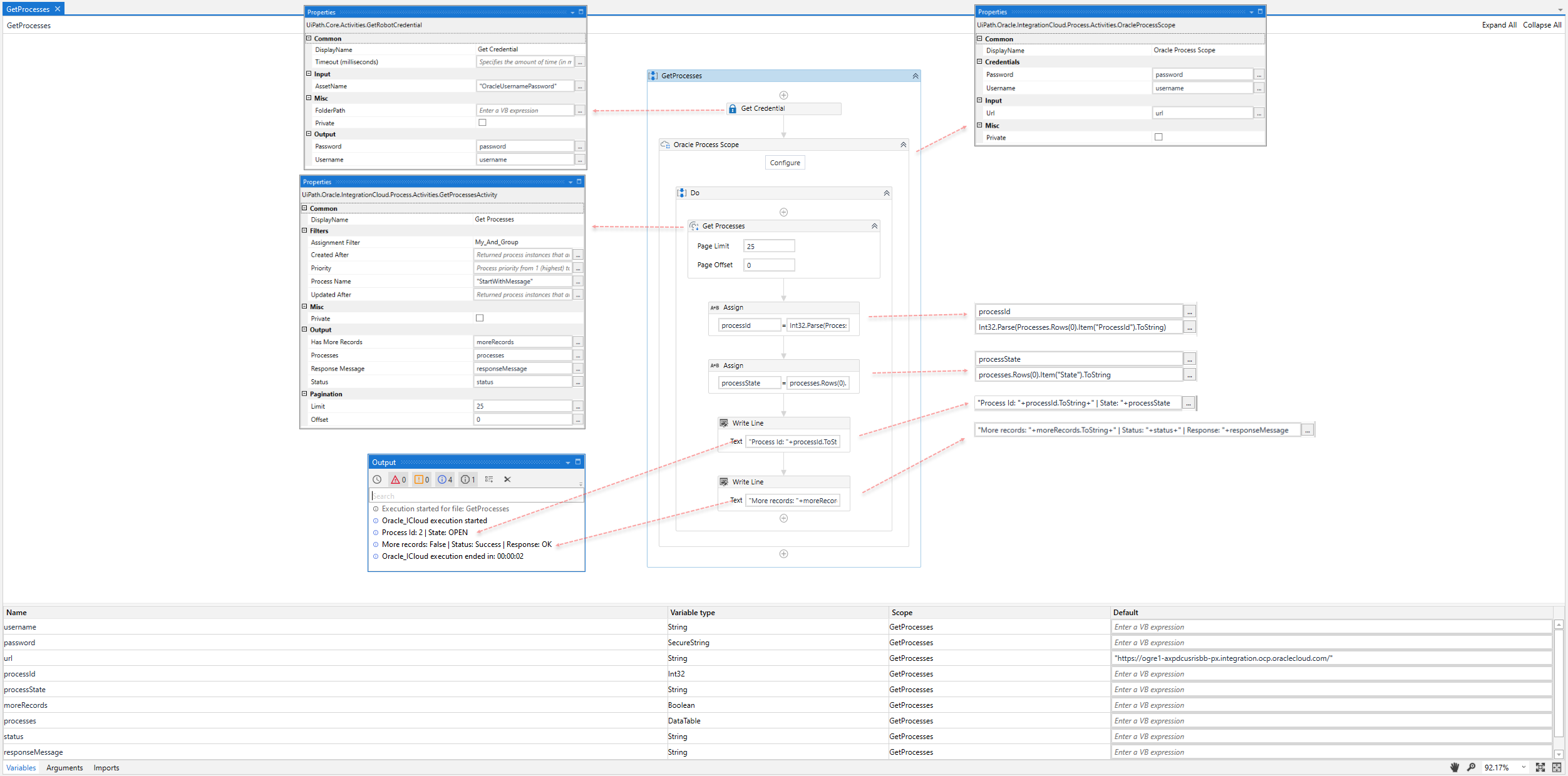

The following image shows an example of the activity dependency relationship and input/output property values.
