UiPath Installation and Upgrade

The UiPath Installation and Upgrade Guide

Backward and Forward Compatibility

UiPath Approach


Activity Packages

Activity package versions are independent of Studio, Robot, or Orchestrator versions, except for Orchestrator activities. For example, the Start Job activity, introduced in v2018.1, only works on v2018.1 Robots or newer.

Automation Projects

Projects created with alpha or beta Studio versions might not be compatible with newer Studio builds, nor can they be executed by newer Robots.
We support backward compatibility, except for breaking changes announced in the official release notes, and following the product lifecycle.
Newer Robots can execute projects created with older versions of Studio. For example, a project created with Studio v2018.4 should work on a v2019.10 Robot or newer.
We do not support forward compatibility. Projects created with newer versions of Studio might not work with older Robots. For example, a project created in Studio v2019.10 might not work with a v2018.4 Robot.

Technical Compatibility Matrix


The below matrices provide information about the interoperability between Studio, Robot, and Orchestrator according to their versions and Orchestrator's delivery model. Patches are implicitly supported in this matrix unless specifically mentioned otherwise.

By not upgrading, you are restricted to using the features of the smallest installed version of either Robot or Orchestrator.

It is usually recommended to first upgrade your Orchestrator and then your Robots. In this scenario, the Robots have to be reconnected to Orchestrator after the update.

📘

Important!

Some versions are no longer supported. Please refer to the product lifecycle for more information. We don't support interoperability between two products if one of them is out of support.

Studio/Robot

Studio and Robot always need to have the same version.

Studio v2021.4.x

Studio v2020.10.x

Studio 2020.4.x

Studio 2019.10.x

Studio 2018.4.x

Robot 2021.4.x

:white-check-mark:

:x:

:x:

:x:

:x:

Robot 2020.10.x

:x:

:white-check-mark:

:x:

:x:

:x:

Robot 2020.4.x

:x:

:x:

:white-check-mark:

:x:

:x:

Robot 2019.10.x

:x:

:x:

:x:

:white-check-mark:

:x:

Robot 2018.4.x

:x:

:x:

:x:

:x:

:white-check-mark:



Orchestrator/Robot and Studio

Full backward compatibility is maintained by using classic folders, which maintain the same functionality as previous Orchestrator versions ensuring that your existing resources and integrations function without interruption.

Taking advantage of the additional features and capabilities of modern folders does, however, require the use of the latest Robot and Activities versions (UiPath.System.Activities v19.10.1 or higher). See Using Modern Folders for details. See a comparison between modern folders and classic folders on the Key Features and Behavior page.

On-Premises Orchestrator

Orchestrator v2021.4.x

Orchestrator v2020.10.x

Orchestrator v2020.4.x

Orchestrator v2019.10.x

Orchestrator v2018.4.x

Robot and Studio v2021.4.x

:white-check-mark:

:white-check-mark:

:white-check-mark:

:white-check-mark: a

:x:

Robot and Studio v2020.10.x

:white-check-mark:

:white-check-mark:

:white-check-mark:

:white-check-mark: a

:x:

Robot and Studio v2020.4.x

:white-check-mark: 5

:white-check-mark: 5

:white-check-mark:

:white-check-mark: 4, a

:x:

Robot and Studio v2019.10.x

:white-check-mark: 2, 5

:white-check-mark: 2, 5

:white-check-mark: 2

:white-check-mark:

:white-check-mark:

Robot and Studio v2018.4.x

:white-check-mark: 2, 3, 5, 6

:white-check-mark: 2, 3, 5, 6

:white-check-mark: 1, 2, 3

:white-check-mark: 1, 3

:white-check-mark: 1

  • Notes for Robot:
    1 - If the Scalability.SignalR.AuthenticationEnabled parameter is set to true, you can only use v2018.4.4 Robots or above. For more information, see this page.
    2 - Robots v2019.10 and older cannot execute unattended processes in modern folders.
    3 - Robots v2019.4 and older only work with classic folders.
    4 - TLS 1.1 / TLS 1.2 must be enabled.
    5 - Robots 2018.4.4+ and 2020.4- connect to Orchestrator via Long Polling only.
    6 - Robot SignalR authentication is not configurable and is enabled by default to ensure secure communication between Orchestrator and Robots. As such, you can only use v2018.4.4 Robots or above.
  • Notes for Studio:
    a - Test Suite features introduced in Studio Pro v2020.4 are not compatible with Orchestrator v2019.10.

Automation Cloud Orchestrator

For Orchestrator services residing in Automation Cloud, we ensure backward compatibility with the three latest enterprise Robot and Studio releases.

Cloud Orchestrator Service

Latest Robot and Studio version
Mainstream Support

:white-check-mark:

Second-latest Robot and Studio version
Mainstream Support

:white-check-mark:

Third-latest Robot and Studio version
Extended Support

:white-check-mark:

If you are currently using the third-latest Robot version, you should make arrangements to upgrade Robot before we release the next Robot version to avoid compatibility issues.

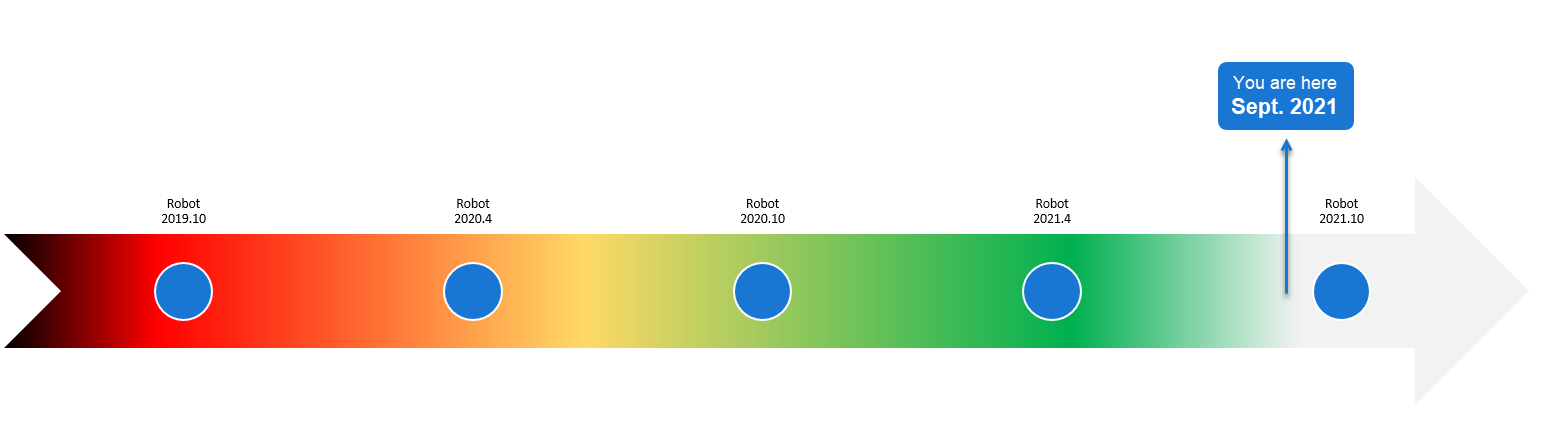

Let's say you are using Automation Cloud Orchestrator services in September 2021, just before the 21.10 release. Robot version 20.4 is in Extended Support at this point, but following the 21.10 release, 20.4 Robot will be out of support and no longer guaranteed to work with cloud Orchestrator services.

📘

Important!

Some versions are no longer supported. Please refer to the product lifecycle for more information. We don't support interoperability between two products if one of them is out of support.



Test Suite

The following matrices provide compatibility information between Test Suite products and UiPath components, including patches or specific features.

Test Manager/Orchestrator

This matrix contains compatibility information between Test Manager and Orchestrator On-Premises. The supported versions are detailed in the following table:

Orchestrator v2021.4.x

Orchestrator v2020.10.x

Orchestrator v2020.4.x

Test Manager v2021.4.1

:white-check-mark:

:white-check-mark:

:white-check-mark: *

Test Manager v2020.10.2+

:white-check-mark:

:white-check-mark:

:white-check-mark:

Test Manager v2020.4.2(GA)+

:x:

:white-check-mark:

:white-check-mark:

* The Link Test Suite feature is not available in Test Manager.

Test Manager/Studio Pro

This matrix contains compatibility information between Test Manager and Studio Pro.

Studio Pro v2021.4.x

Studio Pro v2020.10.x

Studio Pro v2020.4.x

Test Manager v2021.4.1

:white-check-mark:

:white-check-mark:

:white-check-mark:

Test Manager v2020.10.2+

:white-check-mark:

:white-check-mark:

:white-check-mark:

Test Manager v2020.4.2(GA)+

:x:

:white-check-mark:

:white-check-mark:



Action Center/Orchestrator

This matrix contains compatibility information between Action Center and Orchestrator.

Orchestrator v2021.4.x

Orchestrator v2020.10.x

Action Center v2021.4.x

:white-check-mark:

:x:

Action Center v2020.10.x

:white-check-mark:

:white-check-mark:



AI Center/Orchestrator

This matrix contains compatibility information between AI Center and Orchestrator.

Orchestrator v2021.4.x

Orchestrator v2020.10.x

Orchestrator v2020.4.x

Orchestrator v2019.10.x

Orchestrator v2018.4.x

AI Center v2021.4.x

:white-check-mark:

:white-check-mark:

:white-check-mark:

:white-check-mark:

:white-check-mark:

AI Center v2020.10.x

:x:

:white-check-mark:

:white-check-mark:

:white-check-mark:

:white-check-mark:

AI Center v2020.7.x

:x:

:white-check-mark:

:white-check-mark:

:white-check-mark:

:white-check-mark:
