UiPath Connectors

The UiPath Connectors Guide

Process / Robot Selection

Overview

The Process / Robot selection page allows you to specify the robotic process in Orchestrator that the extension will call. This can be either a Job or a Queue, and you can choose additional options such as a specific robot or queue priority. The options that you will see will be dependent on the type of process you select.

Once this screen is completed, the Next button will take you to the Data Mapping screen.

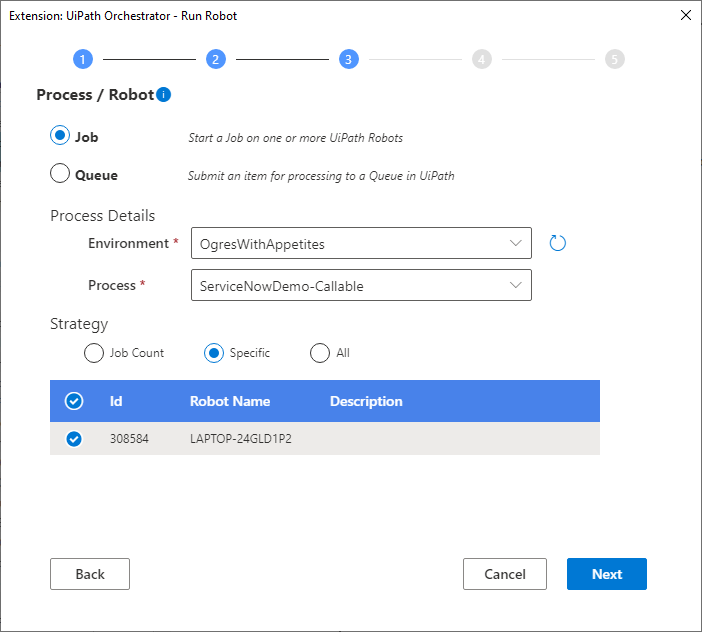

Completed dialog for a specific job:

Screenshot showing the options available for a Queue.


Properties

The options that you will see will be dependent on the type of process you select.

Common Properties

Process Selection

Attributes

Details

Type

radio

Required

Yes

Default value

Job

Allowed values

Job, Queue

Notes

Selecting and option will cause the page to display only those additional properties necessary to configure a process/robot of this type.


Job Properties

Environment

The environment to use.

Attributes

Details

Type

dropdown list

Required

Yes, if your process type is a Job.

Default value

Empty

Allowed values

The list of environments returned by your connection.

Notes

Selected an environment will cause the (Process) dropdown list to reload.

Process

The process to use.

Attributes

Details

Type

dropdown list

Required

Yes, if your process type is a Job.

Default value

Empty

Allowed values

The list of processes in the selected (Environment)

Notes

N/A

Strategy

The job strategy to use.

Attributes

Details

Type

radio

Required

Yes, if your process type is a Job.

Default value

Specific

Allowed values

Job Count, Specific, All

Notes

The choice of Strategy will determine which other parameters will be displayed for that strategy type.

Inputs

The number of jobs to run.

Attributes

Details

Type

Int32

Required

Yes, if you are using the Jobs Count strategy.

Default value

Empty

Allowed values

An Int32 value.

Notes

N/A

Specific Robot

The specific robot or robots that you want to use.

Attributes

Details

Type

selection

Required

Yes, if you are using the Specific strategy.

Default value

Empty

Allowed values

One or more specific robot selections.

Notes

N/A

Queue Parameters

Queue Name

The name of the queue to use.

Attributes

Details

Type

dropdown list

Required

Yes, if you are using the Queue process type.

Default value

Empty

Allowed values

A valid selection from the dropdown list.

Notes

Selecting and option will cause the page to display only those additional properties necessary to configure a connection of this type.

Priority

The priority level to use when starting a job.

Attributes

Details

Type

radio

Required

Yes, if you are using the Queue process type.

Default value

Normal

Allowed values

Low, Normal, High

Notes

N/A
