The Update Record activity uses the the NetSuite update operation to update a specific record (internalid).
After updating the record, the activity outputs the status of the request (success/failure information) in a
ResponseStatus object (NetSuiteStatus) that you can use in subsequent activities (e.g., conditional logic).
The following steps and message sequence diagram is an example of how the activity works from design time (i.e., the activity dependencies and input/output properties) to run time.
- Complete the Setup steps.
- Add the NetSuite Application Scope activity to your project.
- Add the Update Record activity inside the NetSuite Application Scope activity.
- Click the Configure button inside the Update Record activity (this opens the Object Wizard).
- Select the Object that you want to update and enter, at a minimum, the internalid of the record.
- Create and enter a
ResponseStatusvariable for the Output property.
- Your input property values are sent to the update operation.
- The operation returns the
ResponseStatusvalue to your output property variable.
To enter your Update Record property values, you must use the Object Wizard by clicking the Configure button.
To learn more, see the Wizards section in the About page.
- Internalid - The id of the NetSuite record that you want to update. To get the internalid value, see Enable Show Internal IDs in the Setup guide.
- DisplayName - The display name of the activity. This field supports only
- Private - If selected, the values of variables and arguments are no longer logged at Verbose level.
- Record - A record with additional set of fields that will be set during the operation. The record must be the same type as the selected object in the Configure wizard. If a field is configured in the Configure wizard, that value will override the value in the record.
- ResponseStatus - The status of the request (success/failure information). Enter a
ResponseStatusvariable (UiPath.BAF.Models.ResponseStatus). The
ResponseStatusobject includes three properties that you can use in other activities.
- Success -
Boolean- Specifies whether the API request was successful.
- ErrorCode -
String- The response error if the API request is unsuccessful (Success=False).
- Message -
String- The error message.
- Success -

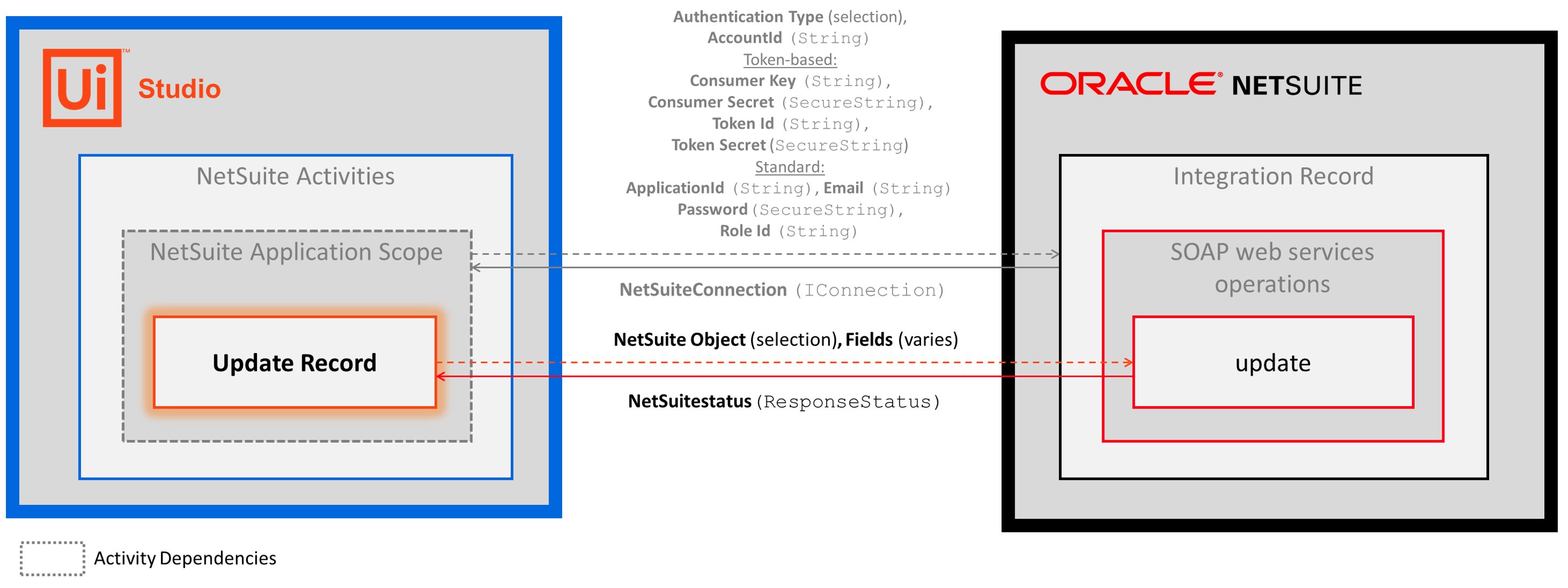

The following image shows an example of the activity dependency relationship and input/output property values.
