UiPath Activities

The UiPath Activities Guide

Workato Scope

The Workato activities use an (User Email*) and (User Token) to establish an authenticated connection between UiPath and your Workato application. This connection authorizes a Robot to call the Workato APIs and access resources on your behalf.

You may also authenticate using an (Existing Connection) that has been established by a previous Workato Scope activity.

After establishing a connection, a parent Workato Scope activity can output a record of the connection in a Connection object (Connection) that you can use in subsequent child scope activities.

How it works

The following steps are an example of how the activity works from design time (i.e., the activity dependencies and input/output properties) to run time.

  1. Complete the Setup steps.
  2. Add the Workato Scope activity to your project.
  3. Choose the authentication types you want to use.
  4. Enter values for one of the authentication types properties.
  5. Optionally create and enter a Connection variable for Output property. You can use this variable in subsequent uses of the Workato Scope activity.

Properties

The values for the following properties are specified when adding this activity to your project in UiPath Studio.

Configure

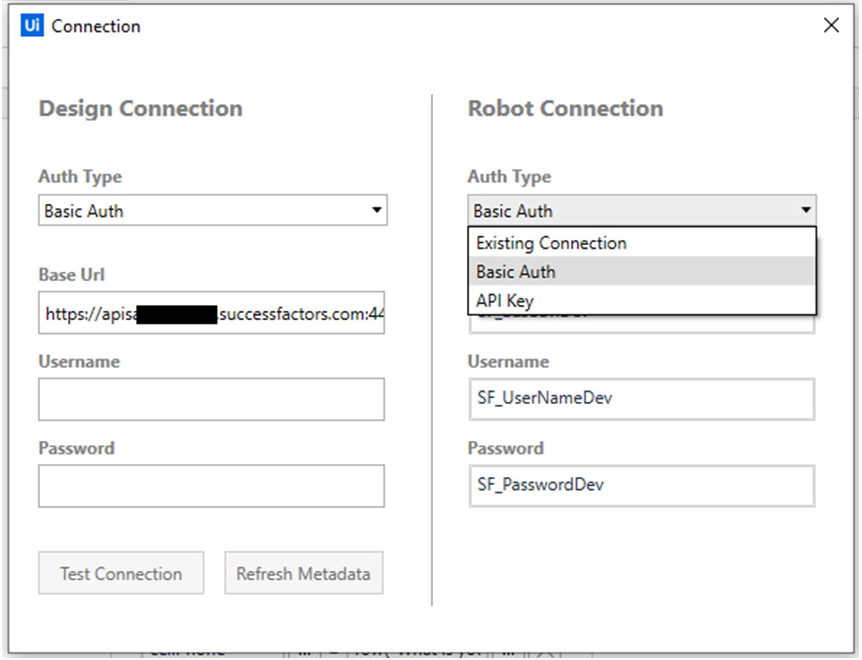

To build your project and enable the (Object Wizard) in other activities, you must use the (Connection Wizard) by clicking the (Configure) button. The Configure Connection dialog allows you to specify both a (Design Connection) and a (Robot Connection).

Property values in the (Design Connection) section do not need to be quoted.

Common

DisplayName

The display name of the activity.

Attributes

Details

Type

String

Required

Yes

Default value

Workato Scope

Allowed values

Enter a String or String variable.

Notes

N/A


Existing Connection

Connection

A connection from the parent Application Scope to use instead of a new connection.

Attributes

Details

Type

Connection

Required

No

Default value

Empty

Allowed values

Enter a Connection variable.

Notes

N/A


Standard Authentication

User Email

The email address of the account.

Attributes

Details

Type

String

Required

No

Default value

Empty

Allowed values

Enter a String or String variable.

Notes

N/A

User Token

The token of the account. This is also known as your API key.

Attributes

Details

Type

SecureString

Required

No

Default value

Empty

Allowed values

Enter a SecureString or SecureString variable.

Notes

This is the API key that you created in the Get API key step in Setup.


Output

Connection

The connection which can be passed to a child application scope.

Attributes

Details

Type

Connection

Required

No (required if you want to use the output data in subsequent activities)

Default value

Empty

Allowed values

Enter a Connection variable.

Notes

N/A

Updated 2 months ago
