Technical References

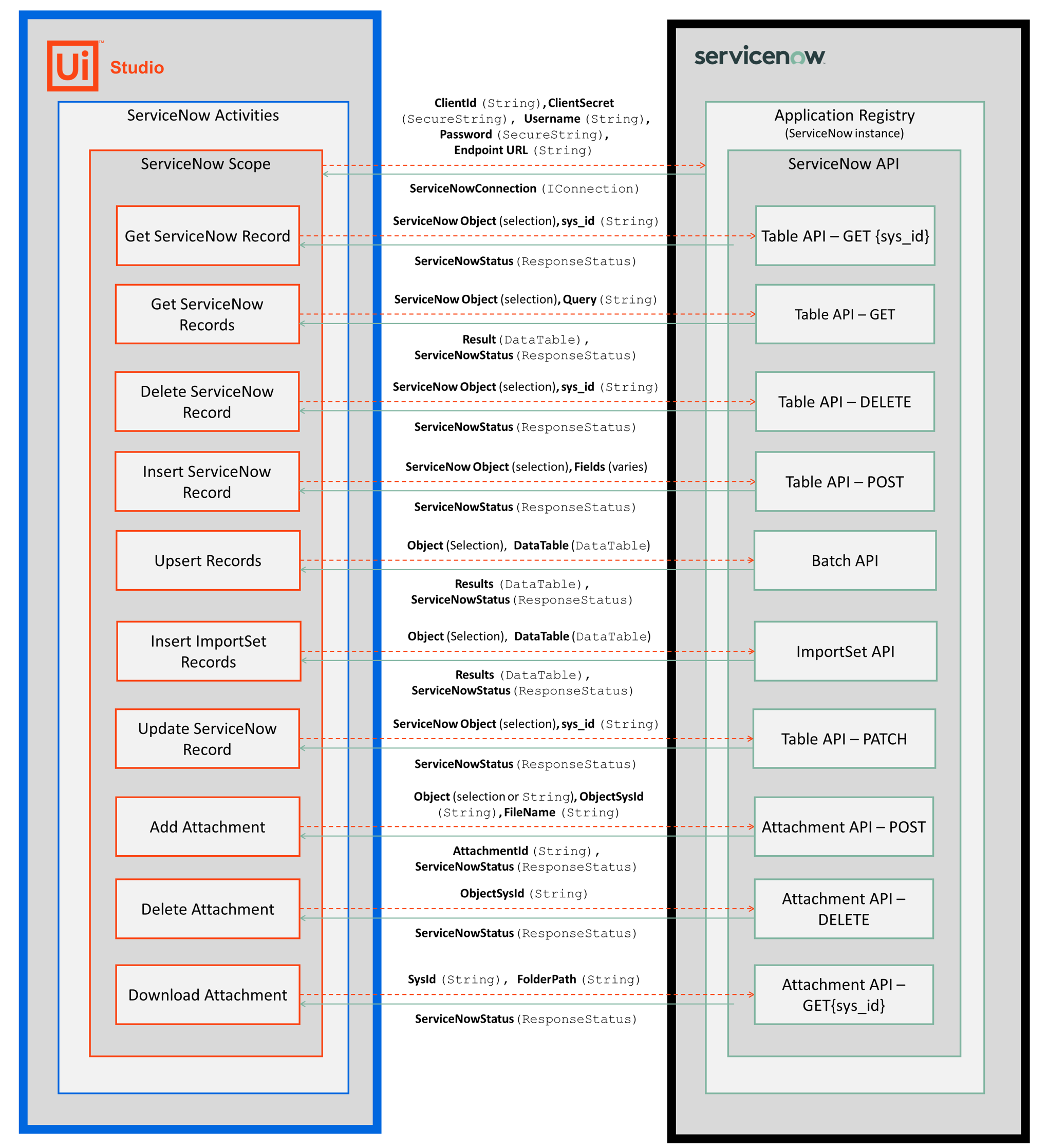

The following sequence diagram and table list each ServiceNow activity and the API they use.

You don't need to be familiar with the ServiceNow APIs to use the activities. These links are for informational purposes only in case you want to learn more about the action happening "behind-the-scenes".

Reference list

Activity	API Reference
ServiceNow Scope	OAuth 1.0
Add Attachment	Attachment - POST
Delete Attachment	Attachment - DELETE
Download Attachment	Attachment - GET
Insert ImportSet Records	Import Set - GET
Upsert Records	Batch - POST
Delete ServiceNow Record	Table - DELETE
Get ServiceNow Record	Table - GET
Insert ServiceNow ImportSet	ImportSet - POST
Insert ServiceNow Record	Table - POST
Update ServiceNow Record	Table - PUT
Search ServiceNow Records	Table - GET
